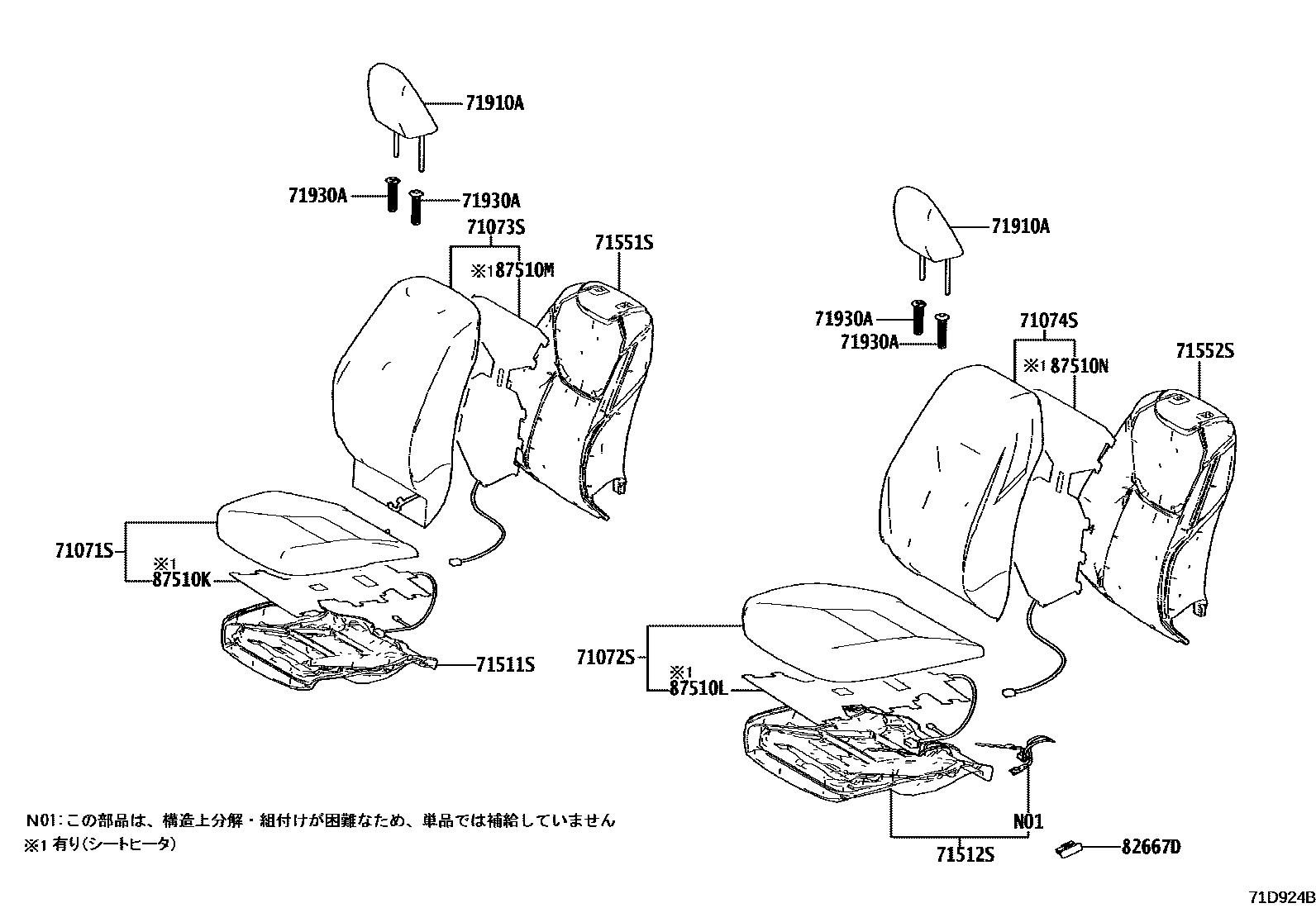

FRONT SEAT & SEAT TRACK

0001 1��� & ����(�����������������)0002 1��� & ����(���������������) 0003 1������, ������� 0004 1������, �������� 0005 1������� 0006 1������(������) 0007 1������(������) 0008 1������(������) 0009 1�������(������) 0010 1�������(������) 0011 1�������(������)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-5CJ40-C0iMXPK11,16..G,Z202106

BLACK,TRIM2#

main71071-5CJ50-C0iMXPK11,16..X; MXPK11..G202106

main71071-5CJ70-C0iMXPK11,16..G202106-202404

main71071-5CJ70-C2iMXPK11,16..Z202106-202212

main71071-5CK40-B1iMXPK11,16..Z202106-202212

main71071-5CL40-C0iMXPK11,16..X202106

main71071-5CL50-C0iMXPK11..G202106

main71071-5CL60-C0iMXPK11,16..X202106

main71071-5CL70-C0iMXPK16..X;MXPK11..G,X202106

main71071-5CN00-C0supersedes 71071-5CD60-C0iMXPK11..GRS202212

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-5CF40-C0iMXPK11,16..G,Z202106

BLACK,TRIM2#

main71072-5CD20-C0supersedes 71072-5CB40-C0iMXPK11..GRS202212

main71072-5CF50-C0iMXPK11,16..X; MXPK11..G; MXPK16..X;MXPK11..G,X202106

main71072-5CF70-C0iMXPK11,16..Z202106

main71072-5CF70-C2iMXPK11,16..Z202106

main71072-5CG30-B1iMXPK11,16..Z202106-202212

main71072-5CJ40-C0iMXPK11,16..X202106-202209

main71072-5CJ41-C0iMXPK11,16..X202212

main71072-5CJ50-C0iMXPK11,16..X202106

main71072-5CJ60-C0iMXPK11..G202106-202209

main71072-5CJ61-C0iMXPK11..G202212

main71072-D1R60iMXPK1#202106

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-5CM20-C0iMXPK11,16..G,Z202106

BLACK,TRIM2#

main71073-5CM30-C0iMXPK11,16..X; MXPK11..G202106

main71073-5CS10-C0supersedes 71073-5CQ50-C0iMXPK11..GRS202212

main71073-5CU80-C0iMXPK11,16..G202106-202404

main71073-5CU80-C1iMXPK11,16..Z202106-202212

main71073-5CV60-B1iMXPK11,16..Z202106

main71073-5CX90-C0iMXPK11,16..X202106

main71073-5CY00-C0iMXPK11..G202106

main71073-5CY10-C0iMXPK11,16..X202106

main71073-5CY20-C0iMXPK16..X;MXPK11..G,X202106

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-5CF00-C0iMXPK11,16..G,Z202106

BLACK,TRIM2#

main71074-5CE40-C0iMXPK16..G202404

main71074-5CE70-C0iMXPK11,16..Z202106

main71074-5CE70-C1iMXPK11,16..Z202106

main71074-5CF30-C0iMXPK11,16..Z202106-202212

main71074-5CF30-C1iMXPK11,16..Z202106-202207

main71074-5CF40-B1iMXPK11,16..Z202106-202212

main71074-5CF50-B1iMXPK11,16..Z202106

main71074-5CJ20-C0iMXPK11,16..X202106

main71074-5CJ30-C0iMXPK11..G202106

main71074-5CL30-C0supersedes 71074-5CL20-C0iMXPK11..GRS202212

main71074-D1R00iMXPK1#202106

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-52A30iMXPK11,16..G,Z; MXPK11,16..X202106

main71511-52B40iMXPK11..GRS202212

main71511-52A20iMXPK11,16..Z202106

main71511-52A50iMXPK16..X;MXPK11..G,X202106

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-52280iMXPK11,16..G,Z; MXPK11,16..X202106

main71502-52390iMXPK11..GRS202212

main71502-52310iMXPK16..X;MXPK11..G,X202106-202209

main71502-52311iMXPK16..X;MXPK11..G,X202212

main71502-D1050iMXPK1#202106

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-52G10iMXPK11,16..G,Z; MXPK11,16..X202106

main71551-52J00iMXPK11..GRS202212

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-52C50iMXPK11,16..G,Z; MXPK11,16..X202106

main71552-52D60iMXPK11..GRS202212

main71552-D1080iMXPK1#202106

71910AHEADREST ASSY, FRONT SEAT

main71910-52Q50-C0×2iMXPK11,16..G,Z; MXPK11,16..X; MXPK11..G; MXPK16..X;MXPK11..G,X202106

main71910-52S40-C0iMXPK11..GRS202212-202403

main71910-52S41-C1iMXPK11..GRS202404

main71910-52N50-C0iMXPK11,16..X202106

main71910-52P90-C1iMXPK11,16..X202106

main71910-52Q00-C1iMXPK11..G; MXPK16..X;MXPK11..G,X202106

main71910-52Q60-C1×2iMXPK11,16..Z202106-202212

main71910-52Q60-C2×2iMXPK11,16..Z202106

main71910-52Q90-A1×2iMXPK11,16..Z202106-202212

main71910-D1B80iMXPK1#202106

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-47050-C5×2iMXPK11,16..G,GRS,Z; MXPK11,16..X; MXPK11..G; MXPK16..X;MXPK11..G,X202106

main71931-47030-C4×2iMXPK1#; MXPK11,16..G,GRS,Z; MXPK11,16..X; MXPK11..G; MXPK16..X;MXPK11..G,X202106

main71930-47030-C4iMXPK1#202106

82667DHOLDER, CONNECTOR

main82666-47630iMXPK11..GRS202212

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-52200iMXPK11,16..Z202106-202212

main87510-52210iMXPK16..X;MXPK11..G,X202106

main87510-K0050iMXPK11,16..X; MXPK11..G202106

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-52280iMXPK11..GRS202212

main87510-K0060iMXPK11,16..X; MXPK11,16..Z; MXPK11..G; MXPK16..X;MXPK11..G,X202106

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-52170iMXPK16..X;MXPK11..G,X202106

main87530-52190iMXPK11..GRS202212

main87530-K0030iMXPK11,16..X; MXPK11,16..Z; MXPK11..G202106

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-52190iMXPK11..GRS202212

main87530-K0030iMXPK11,16..Z202106-202212

15 parts on this diagram · 11 diagrams in section
