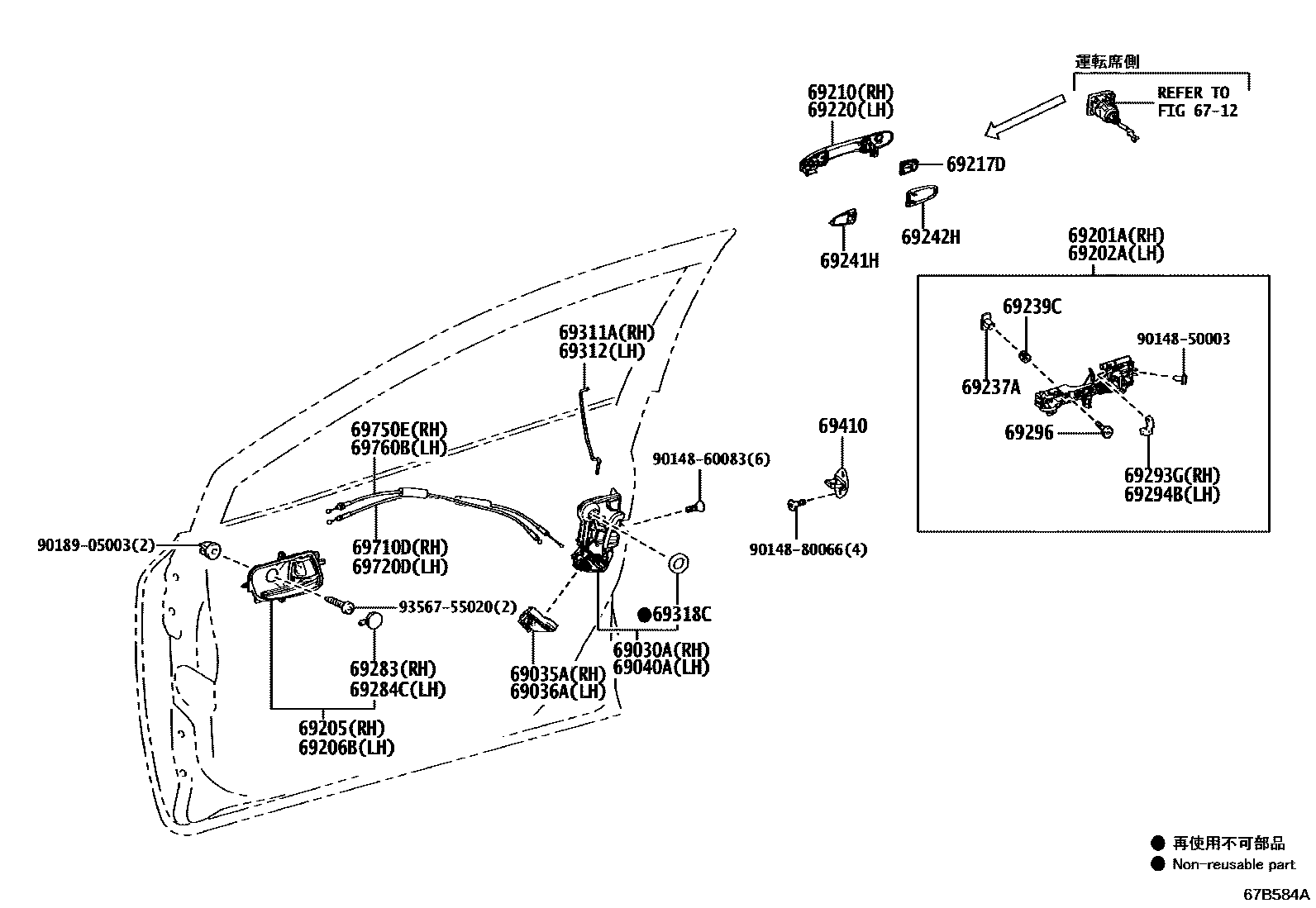

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-52570iMXPK11,16202106-202403

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iMXPK10,15202106-202403

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iMXPK11,16202106-202403

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-52530iMXPK11,16202106-202403

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iMXPK11,16202106-202403

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iMXPK11,16202106-202403

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52200-C0iMXPK11,16..G,GRS202106

BLACK,TRIM2#

main69205-52200-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

main69205-K0040-C0iMXPK11,16..X202106-202403

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52190-C0iMXPK11,16..Z202106

BLACK,TRIM2#

main69206-52190-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

main69206-K0040-C0iMXPK11,16..X202106-202403

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A0iMXPK11,16..X202404

SUPER WHITE 2,040

main69210-K0010-A3iMXPK11..GRS202212

PLATINUM WHITE PEARL MC.,089 ,2YP

main69210-K0010-A3iMXPK11,16..G,X,Z202106

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B0iMXPK11,16..G,X,Z202106

SILVER ME.,1F7

main69210-K0010-C1iMXPK11,16..G,GRS,X202106

BLACK MC.,209 ,M54

main69210-K0010-C1iMXPK11,16..G,GRS,X202106

BLACK MC.,209

main69210-K0010-D5iMXPK11,16..G,X,Z202106

EMOTIONAL RED 2,3U5

main69210-K0010-D5iMXPK11..GRS202212

EMOTIONAL RED 2,2YQ ,3U5

main69210-K0010-E3iMXPK11,16..G,Z202106

POP ORANGE CS.,2YR ,4W5

main69210-K0010-E3iMXPK11,16..X202106

POP ORANGE CS.,4W5

main69210-K0010-E4iMXPK11,16..X202106

CLEAR BEIGE ME.,2WT ,4Y3

main69210-K0010-E4iMXPK11,16..G,Z202106

CLEAR BEIGE ME.,4Y3

main69210-K0010-F0iMXPK11,16..G,Z202106

BRASS GOLD ME.,5C2

main69210-K0010-F0iMXPK11,16..G,Z202106

BRASS GOLD ME.,2YS ,5C2

main69210-K0010-G1iMXPK11,16..G,GRS,Z202106

URBAN KHAKI,6X3

main69210-K0010-G1iMXPK11,16..X202106

URBAN KHAKI,2WU ,6X3

main69210-K0010-J0iMXPK11,16..G,X,Z202106

DK.BLUE M.M.,8W7

main69210-K0010-P1iMXPK11,16..Z202212

DK.GRAY,2WT ,2WU

main69210-K0010-P1iMXPK11,16..Z202212

DK.GRAY,1L7

main69211-26020iMXPK10,15202106-202403

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-47020iMXPK10,15202106-202403

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0020-A0iMXPK11,16..X202404

SUPER WHITE 2,040

main69210-K0020-A3iMXPK11,16..G,X,Z202106

PLATINUM WHITE PEARL MC.,089

main69210-K0020-A3iMXPK11..GRS202212

PLATINUM WHITE PEARL MC.,089 ,2YP

main69210-K0020-B0iMXPK11,16..G,X,Z202106

SILVER ME.,1F7

main69210-K0020-C1iMXPK11,16..Z202106

BLACK MC.,209 ,M54

main69210-K0020-C1iMXPK11,16..Z202106

BLACK MC.,209

main69210-K0020-D5iMXPK11..GRS202212

EMOTIONAL RED 2,2YQ ,3U5

main69210-K0020-D5iMXPK11,16..G,X,Z202106

EMOTIONAL RED 2,3U5

main69210-K0020-E3iMXPK11,16..X202106

POP ORANGE CS.,4W5

main69210-K0020-E3iMXPK11,16..X202106

POP ORANGE CS.,2YR ,4W5

main69210-K0020-E4iMXPK11,16..G,Z202106

CLEAR BEIGE ME.,4Y3

main69210-K0020-E4iMXPK11,16..G,Z202106

CLEAR BEIGE ME.,2WT ,4Y3

main69210-K0020-F0iMXPK11,16..G,Z202106

BRASS GOLD ME.,5C2

main69210-K0020-F0iMXPK11,16..X202106

BRASS GOLD ME.,2YS ,5C2

main69210-K0020-G1iMXPK11,16..X202106

URBAN KHAKI,6X3

main69210-K0020-G1iMXPK11,16..X202106

URBAN KHAKI,2WU ,6X3

main69210-K0020-J0iMXPK11,16..G,X,Z202106

DK.BLUE M.M.,8W7

main69210-K0020-P1iMXPK11,16..Z202212

DK.GRAY,1L7

main69210-K0020-P1iMXPK11,16..Z202212

DK.GRAY,2WT ,2WU

main69211-26030iMXPK10,15202106-202403

69237ANUT, FRONT DOOR HANDLE

main69237-62010iMXPK10,15202106-202403

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iMXPK10,15202106-202403

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iMXPK10,15202106-202403

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iMXPK10,15202106-202403

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52010-C1iMXPK10,15202106-202403

BLACK,TRIM2#

main69283-52010-C1iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-52010-C1iMXPK10,15202106-202403

BLACK,TRIM2#

main69283-52010-C1iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMXPK10,15202106-202403

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iMXPK10,15202106-202403

69296SCREW, DOOR INSIDE HANDLE

main90148-50006iMXPK10,15202106-202403

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52280iMXPK10,15202106-202403

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-52250iMXPK10,15202106-202403

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMXPK10,15202106-202403

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iMXPK10,15202106-202403

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-52260iMXPK10,15202106-202403

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-52260iMXPK10,15202106-202403

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-52190iMXPK10,15202106-202403

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-52190iMXPK10,15202106-202403

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

34 parts on this diagram · 1 diagram in section
