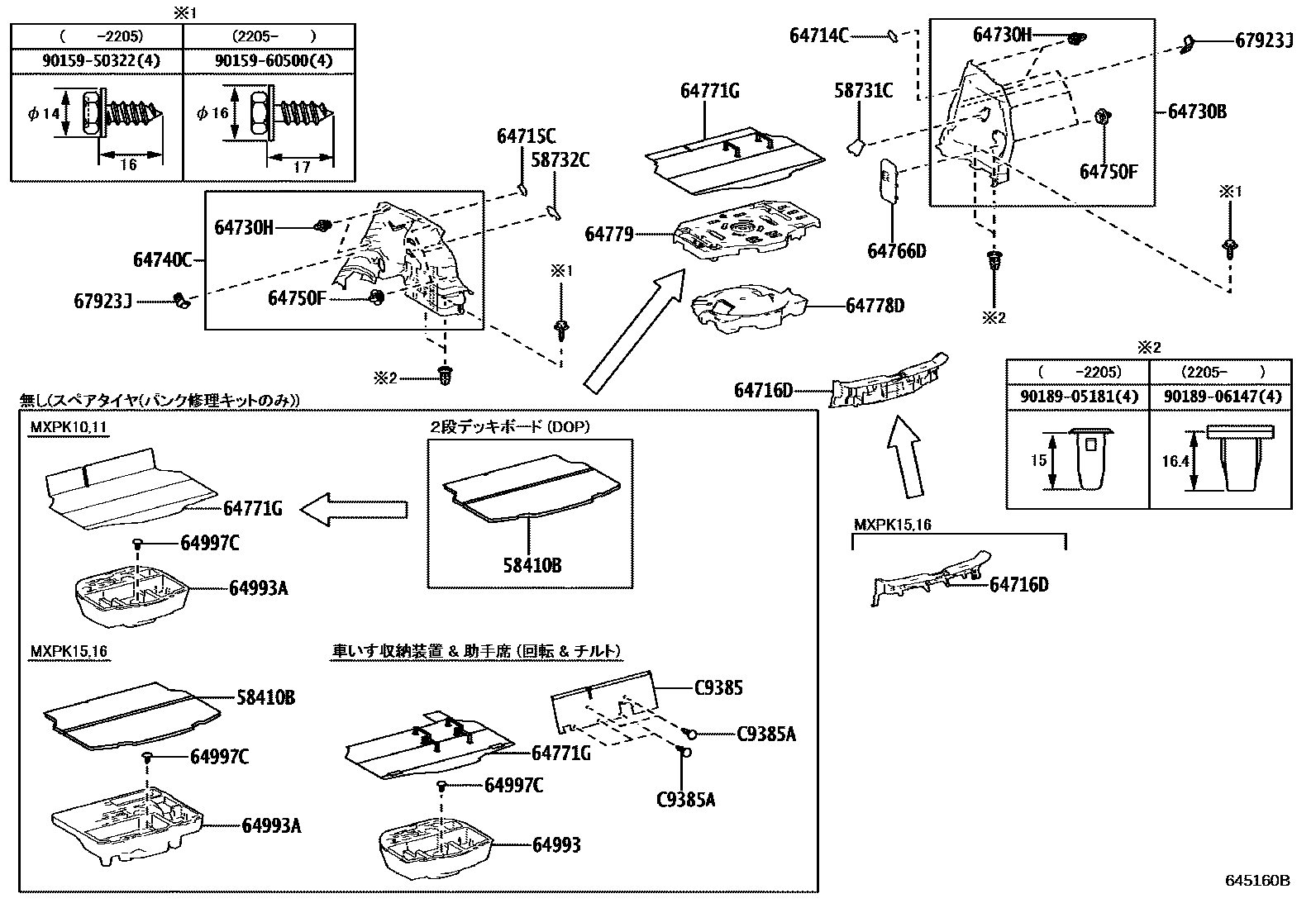

DECK BOARD & DECK TRIM COVER

0001 1 0002 1��(�������������)

58410BBOARD ASSY, DECK

main58410-52210-B0iMXPK16..Z202106-202403

DARK GRAY,TRIM2#

main58410-52210-B0iMXPK16..G,X202106

DARK GRAY,TRIM0#,2#,4#

58731CCAP, REAR ABSORBER

main58731-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main58731-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

58732CCAP, REAR ABSORBER

main58732-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main58732-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

64714CCOVER, DECK SIDE TRIM, RH

main62566-K0010-C0iMXPK11,16..Z202106-202403

BLACK,TRIM2#

main62566-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

64715CCOVER, DECK SIDE TRIM, LH

main62567-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main62567-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

64716DCOVER, DECK TRIM, REAR

main64716-52230-C0iMXPK10202106-202403

BLACK,TRIM2#

main64716-52230-C0iMXPK11..Z202106

BLACK,TRIM0#,2#,4#

main64716-52280-C0iMXPK16..G,X202106-202403

BLACK,TRIM2#

main64716-52280-C0iMXPK16..Z202106

BLACK,TRIM0#,2#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52710-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main64730-52710-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09240iMXPK10,15202106-202403

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52790-C0iMXPK10202106-202403

BLACK,TRIM2#

main64740-52800-C0iMXPK11..Z202106

BLACK,TRIM2#

main64740-52800-C0iMXPK11..Z202106

BLACK,TRIM0#,2#,4#

main64740-52830-C0iMXPK15202106-202403

BLACK,TRIM2#

main64740-52840-C0iMXPK16..G202106

BLACK,TRIM0#,2#,4#

main64740-52840-C0iMXPK16..Z202106

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iMXPK10,15202106-202403

64766DCOVER, DECK SIDE TRIM JACK

main64766-52090-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main64766-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM2#

main64766-K0010-C0iMXPK11,16..G,GRS202106

BLACK,TRIM0#,2#,4#

64771GCOVER, SPARE WHEEL

main64771-52350-B0iMXPK11..G,GRS,X202106-202403

DARK GRAY,TRIM2#

main64771-52350-B0iMXPK11..Z202106

DARK GRAY,TRIM0#,2#,4#

64778DPROTECTOR, SPARE WHEEL

64779TRAY, SPARE WHEEL COVER

main64779-52030

64993BOX, DECK FLOOR, REAR

main64993-K0020

main64993-K0040

main64993-52380

64993ABOX, DECK FLOOR, REAR INNER

main64993-52380iMXPK11202303

main64993-52380iMXPK10202303-202403

main64993-K0020iMXPK10,11202106-202302

sub64993-52380

main64993-K0040iMXPK16202106-202403

64997CCLIP(FOR DECK FLOOR BOX)

main64778-52160iMXPK10,15202106-202403

67923JCLAMP(FOR DECK TRIM SIDE PANEL)

main67923-52240iMXPK10,15202106-202403

C9385MAT, BRIDGE PLATE

mainC9385-52020

main90467-05164

C9385ACLIP(FOR BRIDGE PLATE MAT)

9015950322

main90159-50322

9015960500

main90159-60500

9018905181

main90189-05181

9018906147

main90189-06147

24 parts on this diagram · 2 diagrams in section
