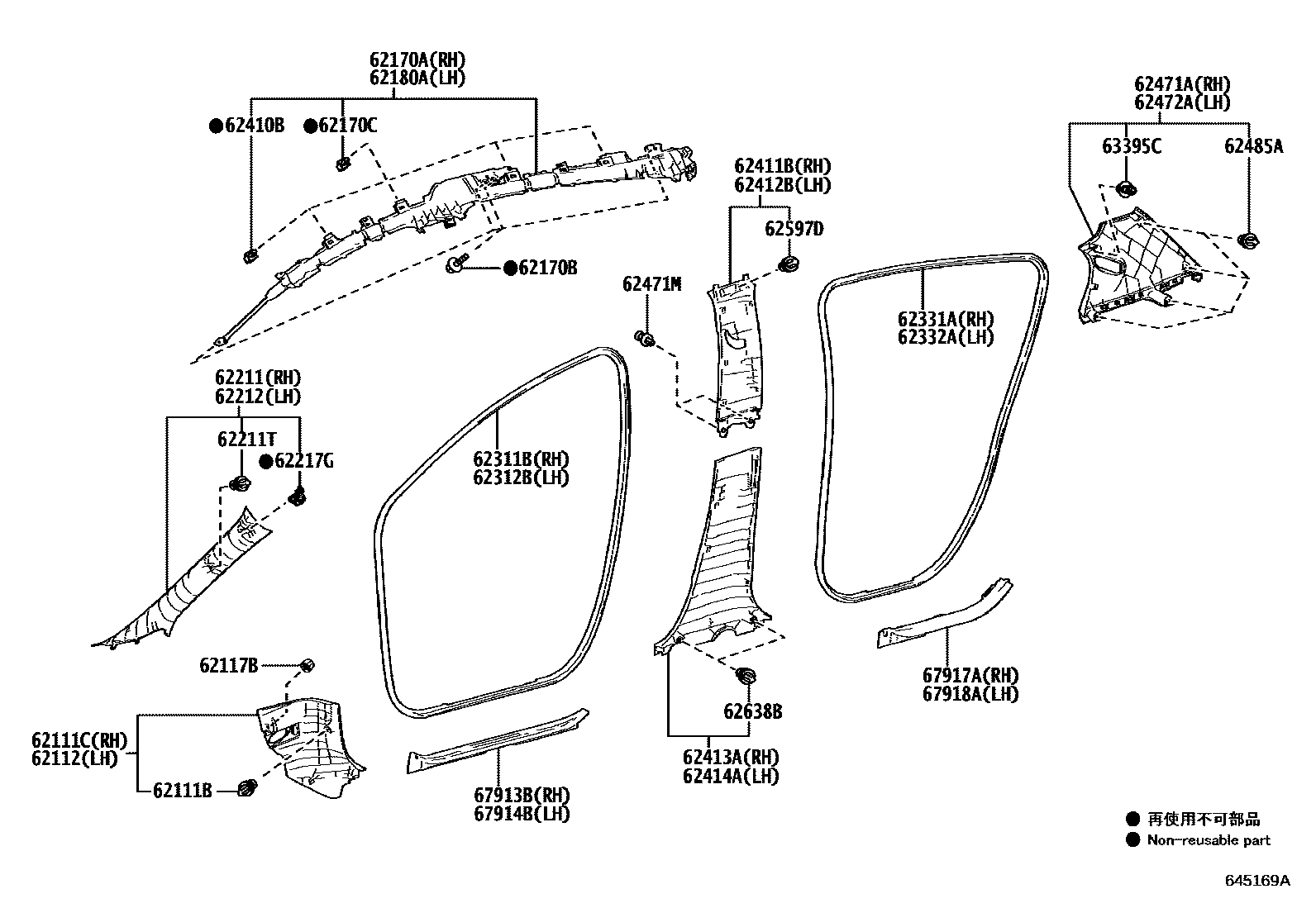

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iMXPK10,15202106-202403

62111CBOARD, COWL SIDE TRIM, RH

main62111-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main62111-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main62112-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iMXPK10,15202106-202403

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-52190iMXPK10,15202106-202403

62170BBOLT, W/WASHER

main91673-80616iMXPK10,15202106-202403

62170CCLIP, CURTAIN SHIELD AIRBAG

main62489-28010iMXPK10,15202106-202403

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-52190iMXPK10,15202106-202403

62211GARNISH, FRONT PILLAR, RH

main62211-52450-B0iMXPK10,15202106-202403

LT.GRAY,TRIM2#

main62211-52450-B0iMXPK11,16..Z202106

LT.GRAY,TRIM0#,2#,4#

main62211-52450-C0iMXPK11..GRS202212

BLACK,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iMXPK10,15202106-202403

62212GARNISH, FRONT PILLAR, LH

main62212-52460-B0iMXPK10,15202106-202403

LT.GRAY,TRIM2#

main62212-52460-B0iMXPK11,16..Z202106

LT.GRAY,TRIM0#,2#,4#

main62212-52460-C0iMXPK11..GRS202212

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMXPK10,15202106-202403

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52270iMXPK10,15202106-202403

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52230iMXPK10,15202106-202403

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52140iMXPK10,15202106-202403

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52160iMXPK1#202106-202307

sub62332-52161

main62332-52161iMXPK10,15202308-202403

62410BCLIP

main90467-18017iMXPK10,15202106-202403

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52260-B0iMXPK10,15202106-202403

LT.GRAY,TRIM2#

main62411-52260-B0iMXPK11,16..Z202106

LT.GRAY,TRIM0#,2#,4#

main62411-52260-C0iMXPK11..GRS202212

BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52260-B0iMXPK10,15202106-202403

LT.GRAY,TRIM2#

main62412-52260-B0iMXPK11,16..Z202106

LT.GRAY,TRIM0#,2#,4#

main62412-52260-C0iMXPK11..GRS202212

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main62413-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main62414-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52480-B0iMXPK10,15202106-202403

LT.GRAY,TRIM2#

main62471-52480-B0iMXPK11,16..Z202106

LT.GRAY,TRIM0#,2#,4#

main62471-52480-C0iMXPK11..GRS202212

BLACK,TRIM2#

62471MCLIP

main90467-10216iMXPK10,15202106-202403

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52560-B0iMXPK10,15202106-202403

LT.GRAY,TRIM2#

main62472-52560-B0iMXPK11,16..Z202106

LT.GRAY,TRIM0#,2#,4#

main62472-52560-C0iMXPK11..GRS202212

BLACK,TRIM2#

62485ARETAINER, ROOF SIDE INNER GARNISH

main67771-28150iMXPK10,15202106-202407

main90467-10167iMXPK11,16202408

62597DCLIP

main90467-10167iMXPK10,15202106-202403

62638BCLIP

main90467-10161iMXPK10,15202106-202403

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main63395-12150iMXPK10,15202106-202403

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main67913-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-K0010-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main67914-K0010-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52260-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main67917-52260-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52270-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main67918-52270-C0iMXPK11,16..Z202106

BLACK,TRIM0#,2#,4#

32 parts on this diagram · 1 diagram in section
