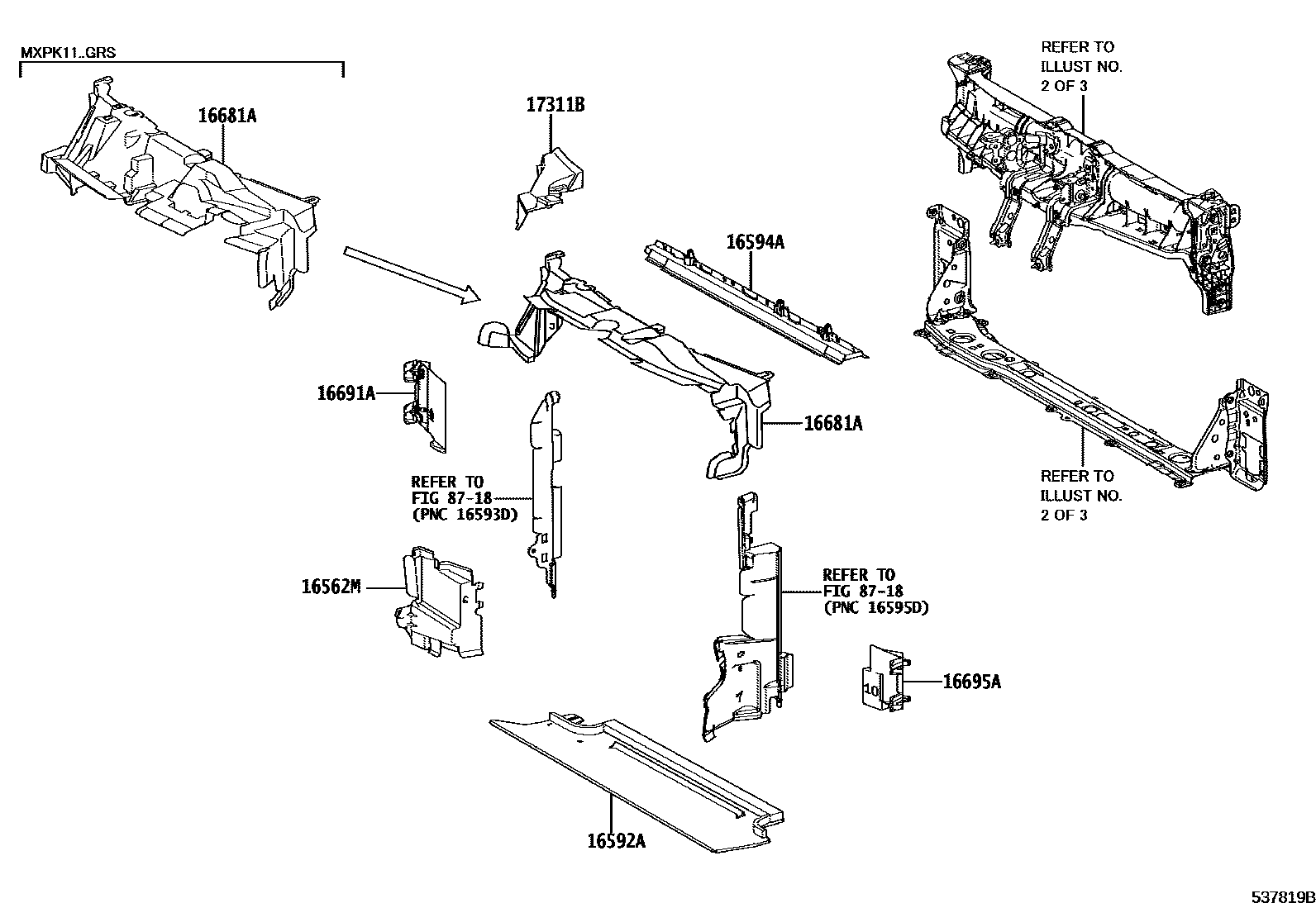

FRONT FENDER APRON & DASH PANEL

0001 1������� & ��������������� 0002 1����������� & ���������� 0003 1���������

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-15050iM15AFXE..MXPK10,15202106-202403

16592AGUIDE, RADIATOR AIR, NO.3

main16592-15020iM15AFXE..MXPK10,15202106-202403

16594AGUIDE, RADIATOR AIR, NO.2

main16594-15020iM15AFXE..MXPK10,15202106-202403

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-15030iM15AFXE..MXPK10,15202106-202403

main16681-15060iM15AFXE..MXPK11..GRS202212

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-15020iM15AFXE..MXPK10,15202106-202403

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-15010iM15AFXE..MXPK10,15202106-202403

17311BDUCT, AIR INLET, NO.1

main17311-15040iM15AFXE..MXPK10,15202106-202403

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

8 parts on this diagram · 3 diagrams in section
