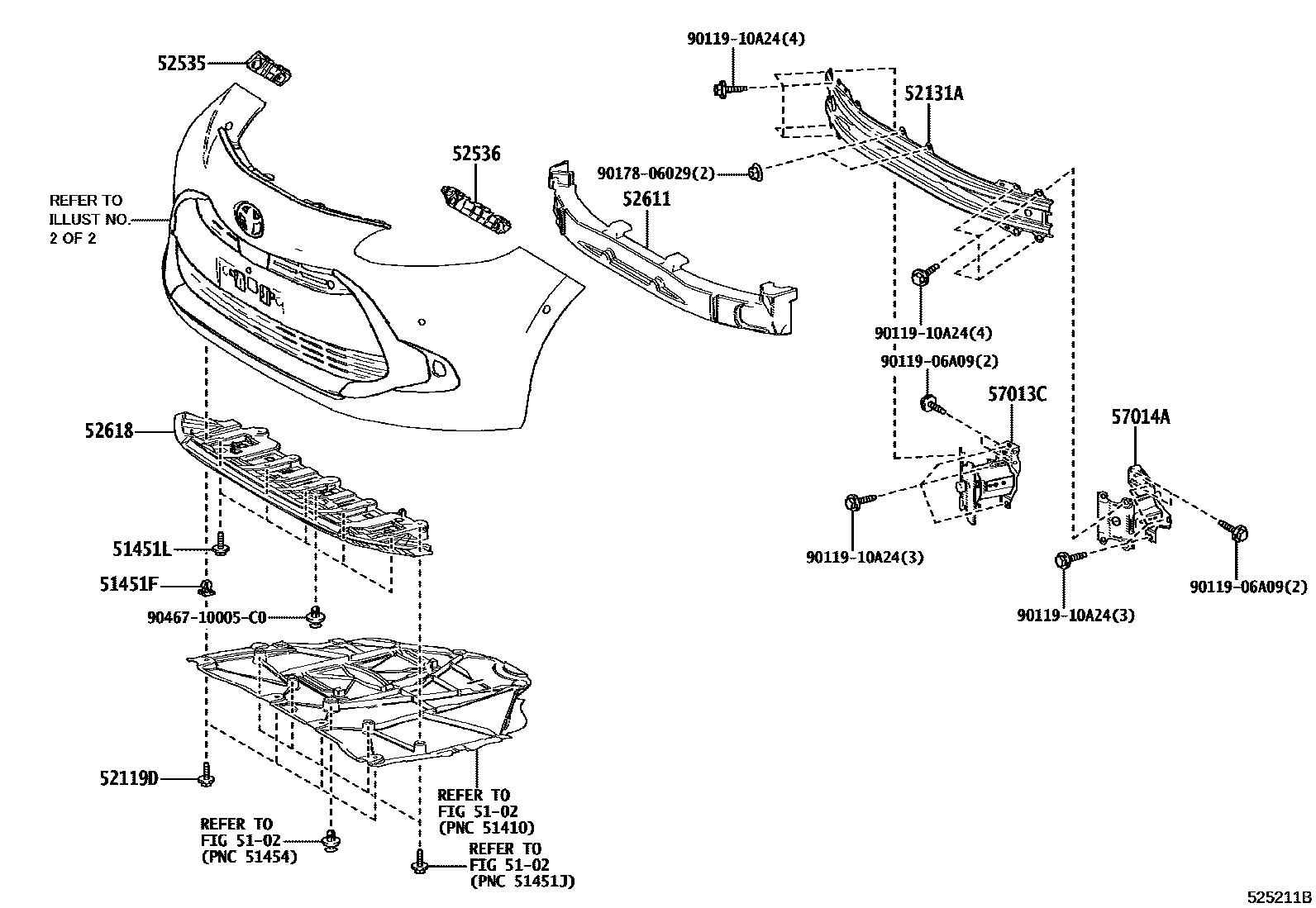

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102

51451FGROMMET, NO.1

main90189-06237iMXPK10,15202106-202403

51451LBOLT, NO.1

main90119-06A13iMXPK10,15202106-202403

52119DSCREW, NO.1

main90159-60477iMXPK11..GRS202106-202403

52131AREINFORCEMENT, FRONT BUMPER

main52131-52360iMXPK11,16202404

main52131-K0011iMXPK1#202106-202403

sub52131-52360

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52230iMXPK11,16202106-202403

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52220iMXPK10,15202106-202403

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52390iMXPK10,15202106-202403

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52180iMXPK10,15202106-202403

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-K0010iMXPK10,15202106-202403

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-K0010iMXPK10,15202106-202403

9011906A09

main90119-06A09

9011910A24

main90119-10A24

9017806029

main90178-06029

9046710005C0

main90467-10005C0

15 parts on this diagram · 4 diagrams in section
