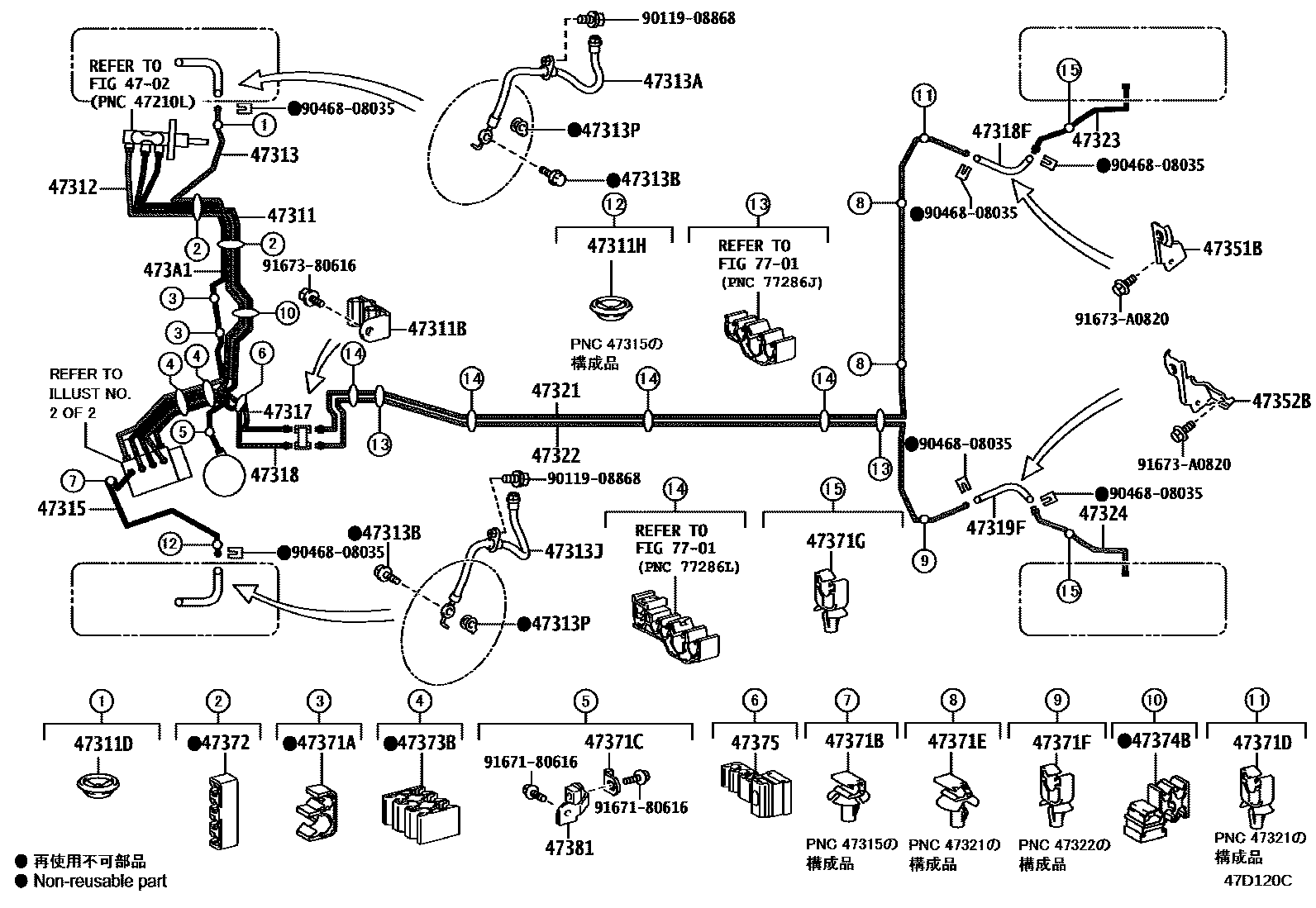

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47311DGROMMET(FOR FRONT BRAKE TUBE)
47311HGROMMET(FOR BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47352BBRACKET, FLEXIBLE HOSE, NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47381BRACKET, BRAKE TUBE CLAMP NO.1
473A1TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER
7701FUEL TANK & TUBE
9011908868
main90119-08868
9046808035
main90468-08035
9167180616
main91671-80616
9167380616
main91673-80616
91673A0820
main91673-A0820
41 parts on this diagram · 3 diagrams in section
