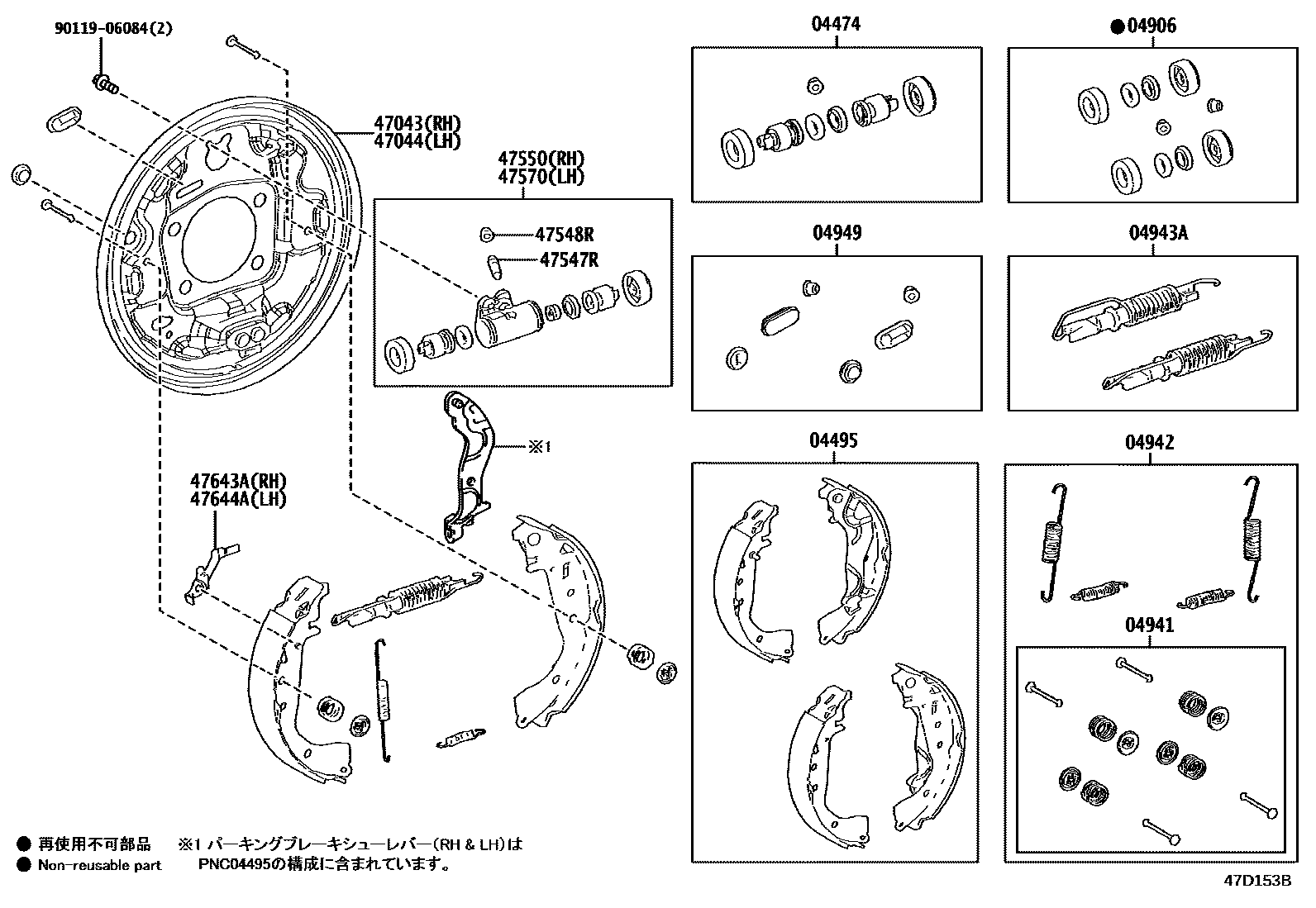

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020×2iMXPK10202106-202403

main04474-52140×2iMXPK15202106-202403

04495SHOE KIT, REAR BRAKE

main04495-52121iMXPK15202106-202403

main04495-52170iMXPK11202106

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iMXPK11202106

main04906-28040iMXPK15202106-202403

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iMXPK16202106

main04941-46010iMXPK11202106

04942SPRING KIT, REAR BRAKE

main04942-13030iMXPK15202106-202403

main04942-52050iMXPK10202106-202403

04943ASTRUT KIT, REAR BRAKE

main04943-12010iMXPK11202106

main04943-52030iMXPK15202106-202403

04949PLUG KIT, REAR BRAKE

main04949-12010iMXPK11202106

main04949-13010iMXPK16202106

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iMXPK10,11202106

main47043-52120iMXPK15,16202106

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iMXPK10,11202106

main47044-52120iMXPK15,16202106

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iMXPK10,11202106

main47547-27030×2iMXPK15,16202106

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iMXPK1#202106

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iMXPK10,11202106

main47550-28060iMXPK15,16202106

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iMXPK15,16202106

main47570-20101iMXPK10,11202106

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52102iMXPK10,11202106

main47643-52120iMXPK15,16202106

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52102iMXPK10,11202106

main47644-52120iMXPK15,16202106

9011906084

main90119-06084
