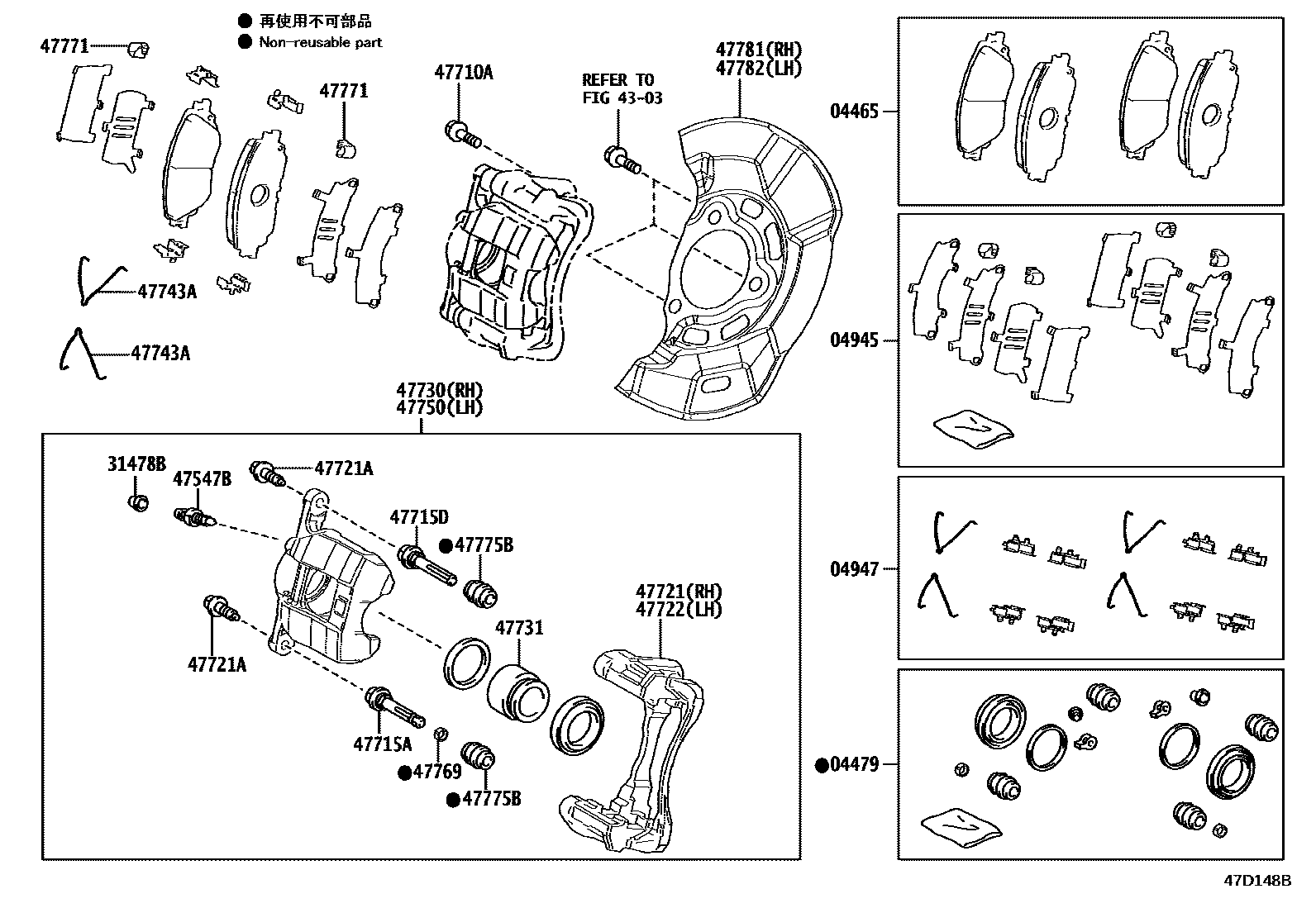

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670iMXPK15,16202106-202202

main04465-52390iMXPK15,16202202-202305

sub04465-52410

main04465-52410iMXPK15202305-202403

main04465-K0020iMXPK10202106-202403

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12120iMXPK10,15202106-202403

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-K0000iMXPK10202106-202403

main04945-K0010iMXPK15,16202106-202202

sub04945-K0011

main04945-K0011iMXPK15202202-202403

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47030iMXPK16;MXPK11..GRS202106-202403

main04947-K0000iMXPK10202106-202403

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMXPK10,15202106-202403

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMXPK10,15202106-202403

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXPK10,15202106-202403

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iMXPK10,15202106-202403

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iMXPK10,15202106-202403

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10iMXPK15202106-202403

main47721-52410iMXPK11..GRS202212

main47721-K0010iMXPK11..G,X,Z202106-202403

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMXPK10,15202106-202403

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10iMXPK16202106-202403

main47722-52460iMXPK11..GRS202212

main47722-K0010iMXPK11..G,X,Z202106-202403

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52410iMXPK11..GRS202212

main47730-K0010iMXPK11..G,X,Z202106-202403

main47730-K0020iMXPK16202106-202403

47731PISTON, FRONT DISC BRAKE

main47731-52190iMXPK10,15202106-202403

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12090iMXPK11..G,X,Z202106-202403

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52460iMXPK11..GRS202212

main47750-K0010iMXPK10202106-202403

main47750-K0020iMXPK16202106-202403

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMXPK10,15202106-202403

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMXPK10202106-202403

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMXPK10,15202106-202403

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-K0010iMXPK10,15202106-202403

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-K0010iMXPK10,15202106-202403

22 parts on this diagram · 2 diagrams in section
