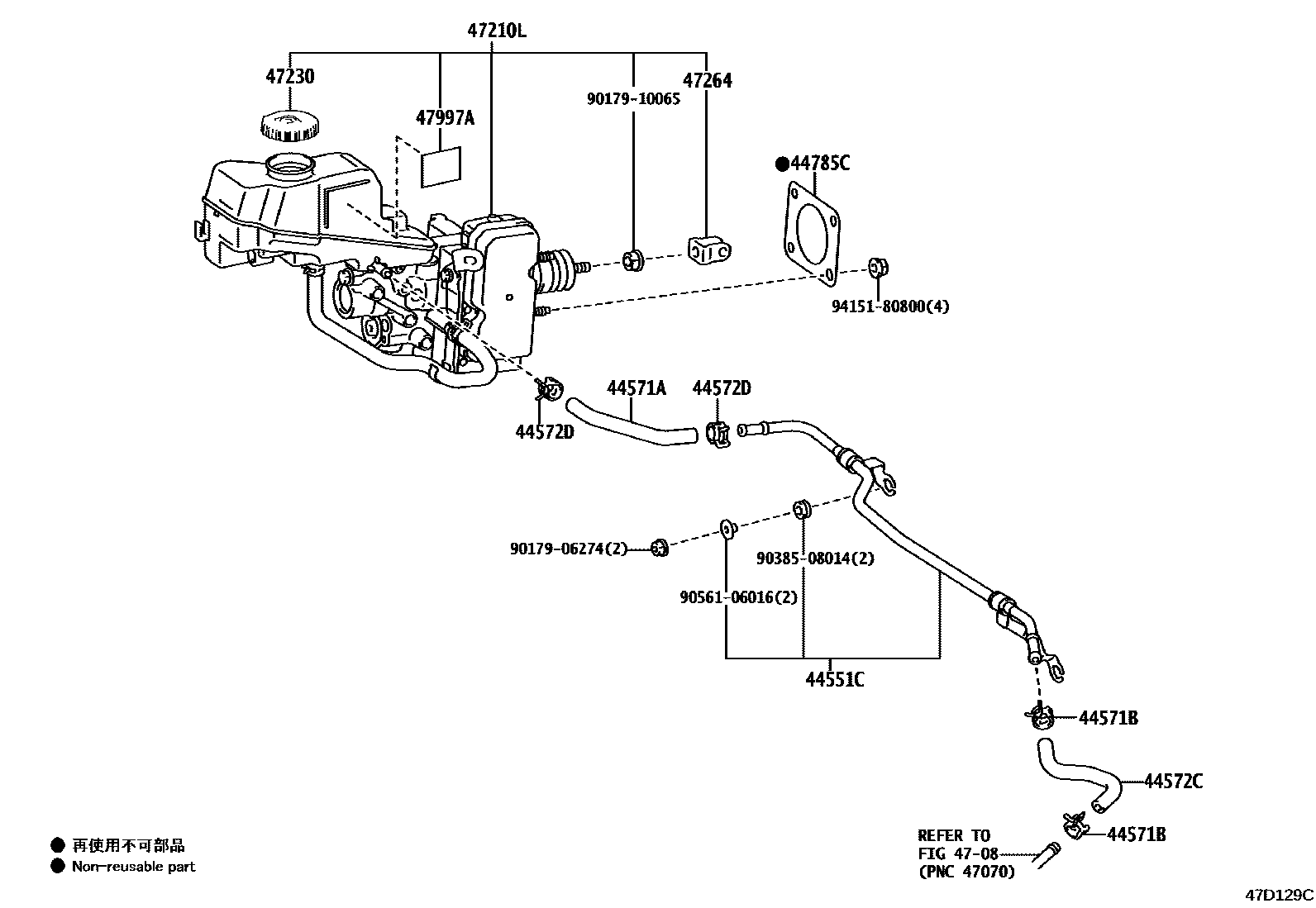

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-K0010iMXPK10,15202106-202403

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-K0010iMXPK10,15202106-202403

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501×2iMXPK10,15202106-202403

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-K0010iMXPK10,15202106-202403

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501×2iMXPK10,15202106-202403

44785CGASKET, BRAKE BOOSTER

main44785-12040iMXPK10,15202106-202403

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-52710iMXPK10,15202106-202111

main47050-52711iMXPK10,15202112-202403

main47050-52720iMXPK11,16202106-202112

main47050-52721iMXPK11,16..G,X,Z202212

main47050-52780iMXPK11..GRS202212

main47050-52790iMXPK11,16202112-202212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMXPK10,15202106-202403

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMXPK10,15202106-202403

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iMXPK10,15202106-202403

9017906274

main90179-06274

9017910065

main90179-10065

9038508014

main90385-08014

9056106016

main90561-06016

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
