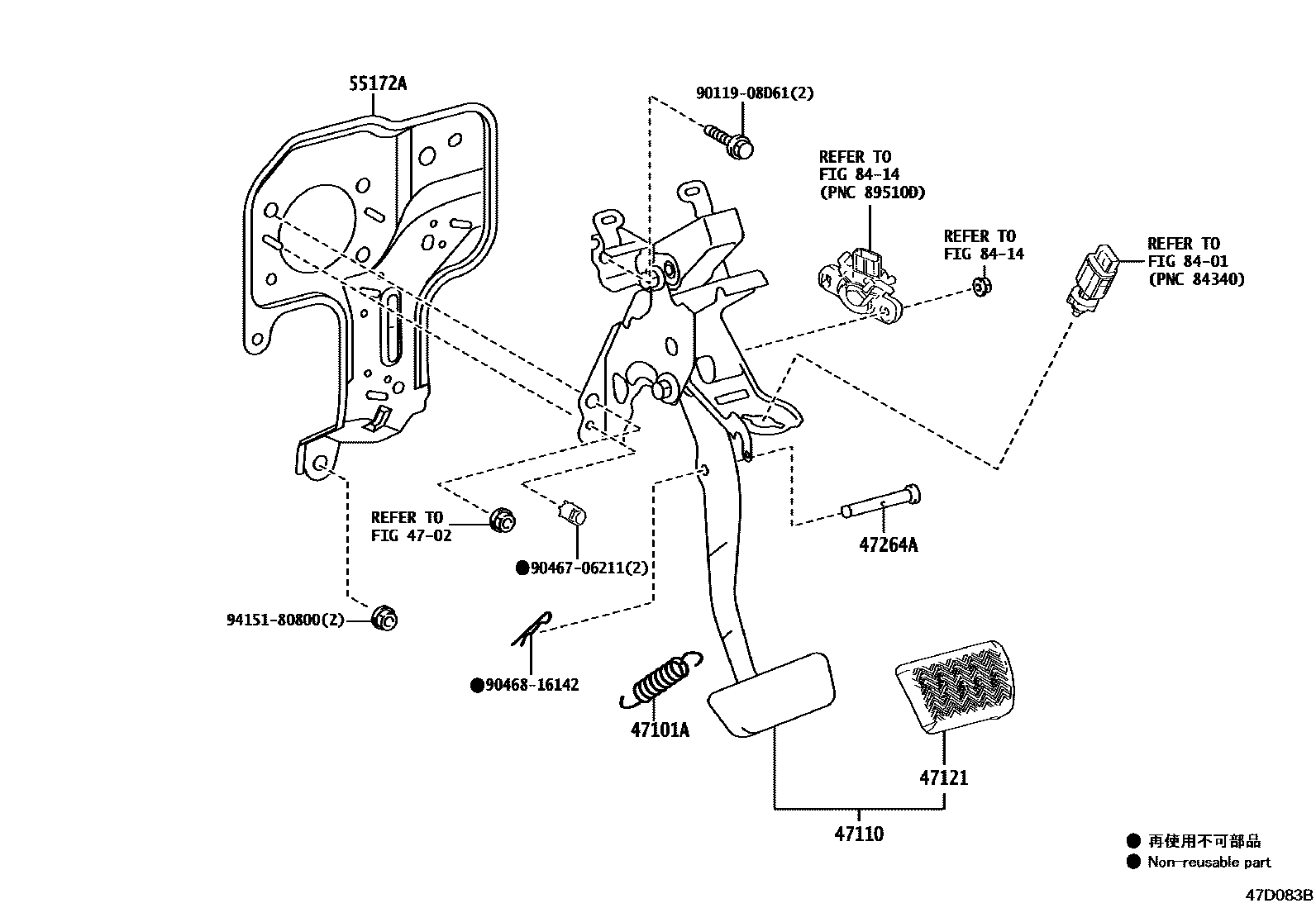

BRAKE PEDAL & BRACKET

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iMXPK11,16202106

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52560iMXPK11..GRS202212

main47110-K0090iMXPK10,15202106-202403

47121PAD, BRAKE PEDAL

main47121-47010iMXPK11,16..G,X,Z202106

main47121-78010iMXPK11..GRS202212

47264APIN(FOR PUSH ROD)

main90249-08051iMXPK1#202106-202206

main90249-08256iMXPK10,15202207-202403

55172ABASE, BRAKE PEDAL SUPPORT

main55172-K0010iMXPK10,15202106-202403

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
