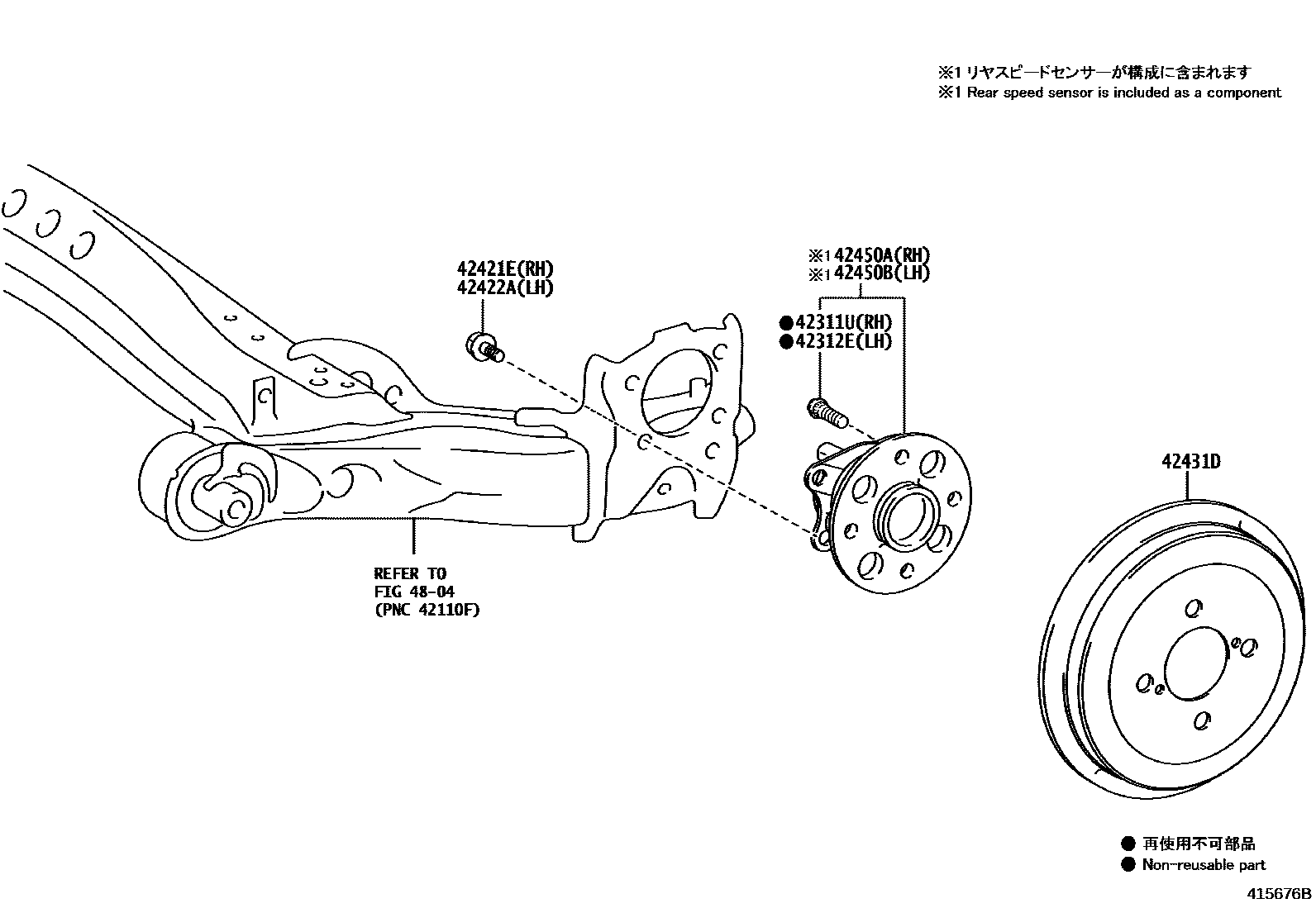

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iMXPK10,15202106-202403

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iMXPK10,15202106-202403

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iMXPK10,15202106-202403

main90119-12491×4iMXPK11..GRS202212

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iMXPK10,15202106-202403

main90119-12491×4iMXPK11..GRS202212

42431DDRUM, BRAKE

main42431-52090×2iMXPK15202106-202403

main42431-K0020×2iMXPK10202106-202403

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-K0010iMXPK15202106-202403

main42450-K0010iMXPK11202106

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-K0010iMXPK15202106-202403

main42450-K0010iMXPK11202106

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 3 diagrams in section
