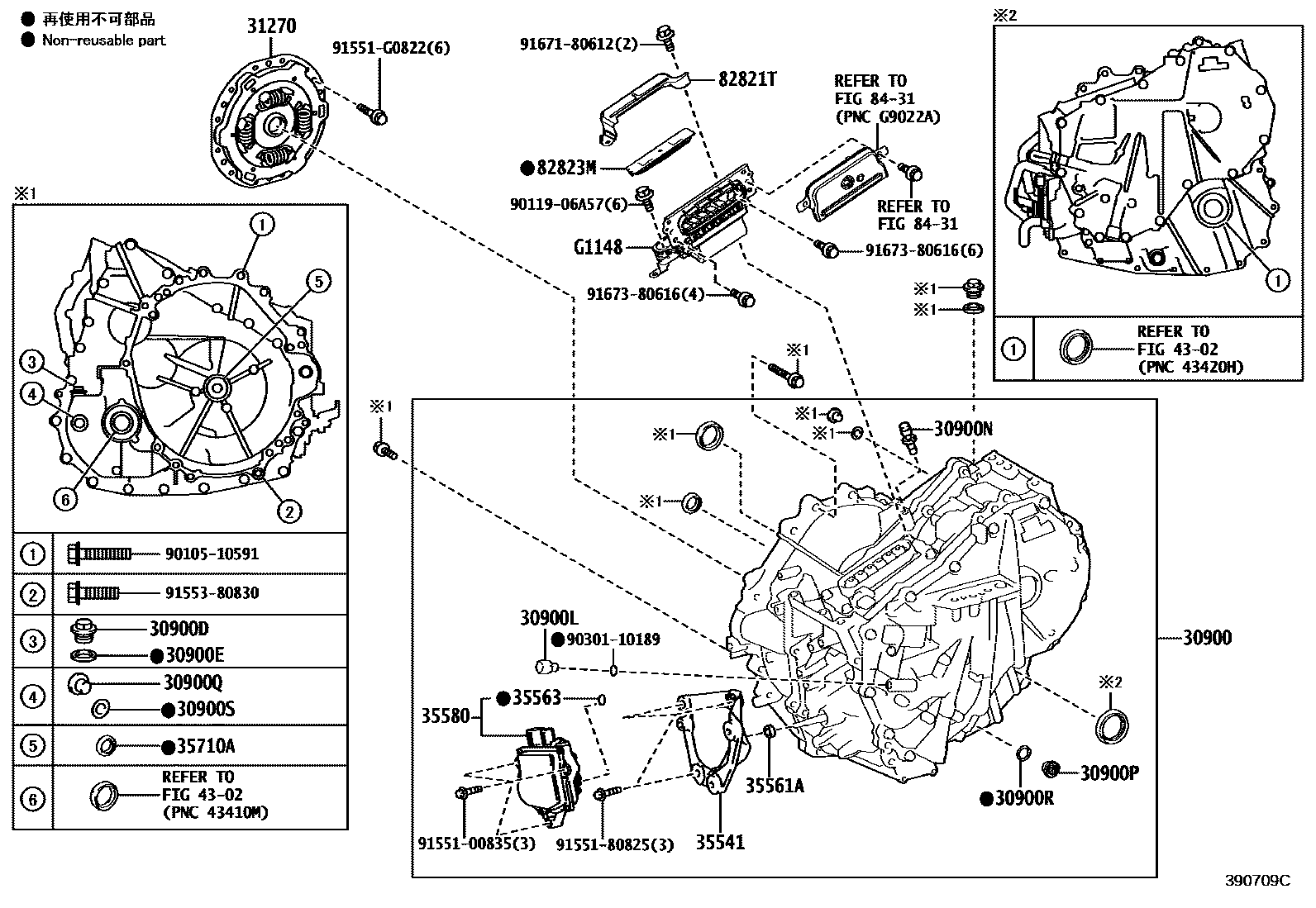

Toyota 811110 — TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
35541BRACKET, SHIFT CONTROL ACTUATOR
35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)
35563SEAL, SHIFT CONTROL ACTUATOR
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
4302FRONT DRIVE SHAFT
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8431HEV INVERTER
G1148CABLE, MOTOR
9010510591
9011906A57
9030110189
9155100835
9155180825
91551G0820
91551G0822
9155380830
9167180612
9167380616
30 parts on this diagram · 3 diagrams in section
TRANSAXLE ASSY(HEV OR BEV OR FCEV) for Toyota 811110
This section contains 63 genuine Toyota parts for the TRANSAXLE ASSY(HEV OR BEV OR FCEV) system of the Toyota 811110. Key components include: TRANSAXLE ASSY, HYBRID VEHICLE, PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE), GASKET(FOR TRANSAXLE HOUSING & CASE), UNION(FOR TRANSAXLE HOUSING), PLUG, BREATHER(FOR TRANSAXLE).
