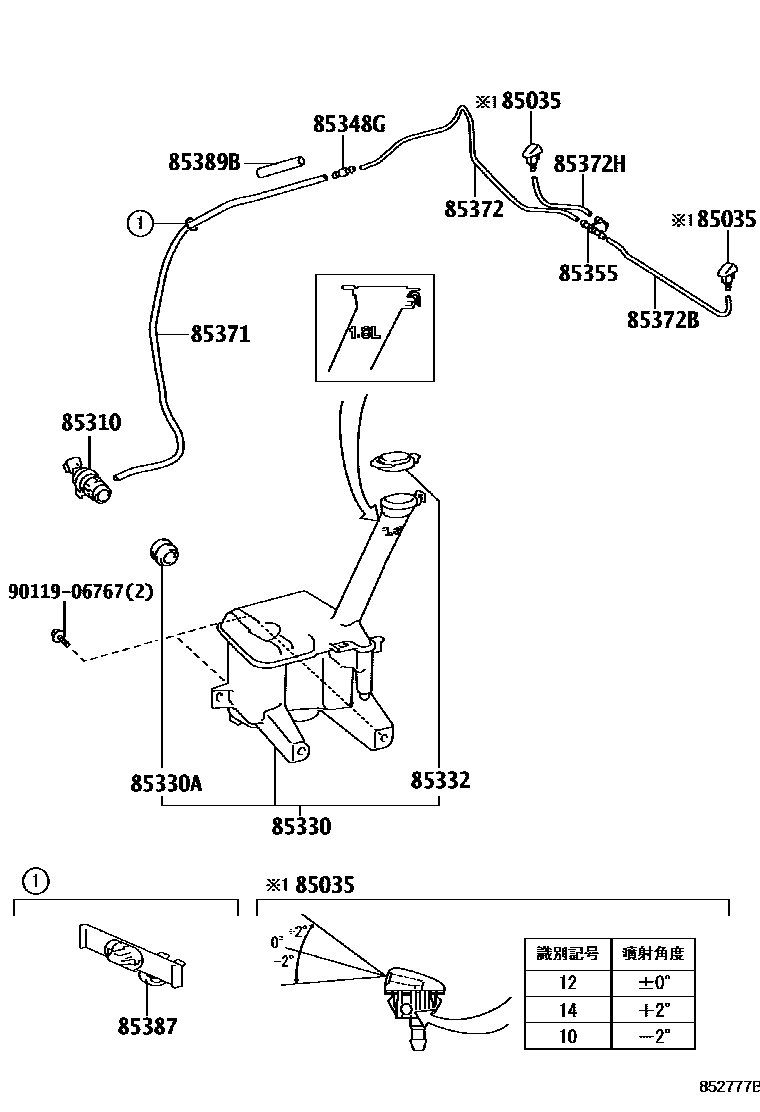

WINDSHIELD WASHER

0001 11.8L��� 0002 12.3L��� 0003 14.8L��� 0004 1��(������������)

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2iNHP10201706

main85381-52440×2iNHP10201112-201412

main85381-52450×2iNHP10201412-201706

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iNHP10201112-201412

main85330-60190iNHP10..G201711

85330JAR ASSY, WINDSHIELD WASHER

main85315-52440supersedes 85315-52380iNHP10..G,S,XRBN; NHP10..L201412-201706

main85315-52420iNHP10..G201711

main85355-52010supersedes 85315-52440iNHP10..G,S201112-201412

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iNHP10201112-201412

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iNHP10201706

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iNHP10..G,S,XRBN; NHP10..L201412-201706

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNHP10201706

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNHP10201706

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNHP10..G; NHP10..G,S,XRBN; NHP10..L201412-201706

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNHP10201112-201412

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNHP10201112-201412

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iNHP10201112-201412

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35750iNHP10201112-201412

85389BPROTECTOR, WINDSHIELD WASHER

main85389-74070iNHP10201112-201412

9011906767

main90119-06767

15 parts on this diagram · 4 diagrams in section
