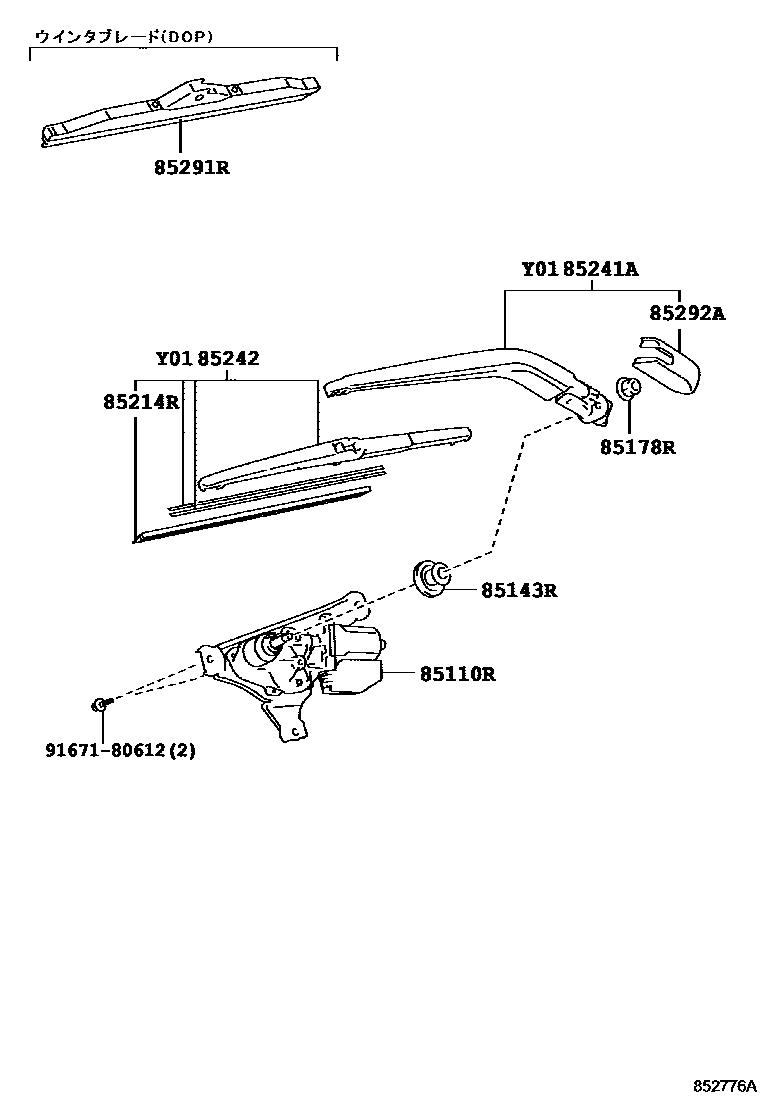

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-52240iNHP10..G,S201112-201706

85143RGROMMET, REAR WIPER MOTOR

main85143-52020iNHP10..G,S201112-201706

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNHP10..G,S201112-201706

85214RRUBBER, REAR WIPER

main85214-52060iNHP10..G,S201112-201706

85241AARM, REAR WIPER

main85241-52190iNHP10..G,S201112-201706

85242BLADE, RR WIPER

main85242-52090iNHP10..G,S201112-201706

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iNHP10..G,S201112-201706

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
