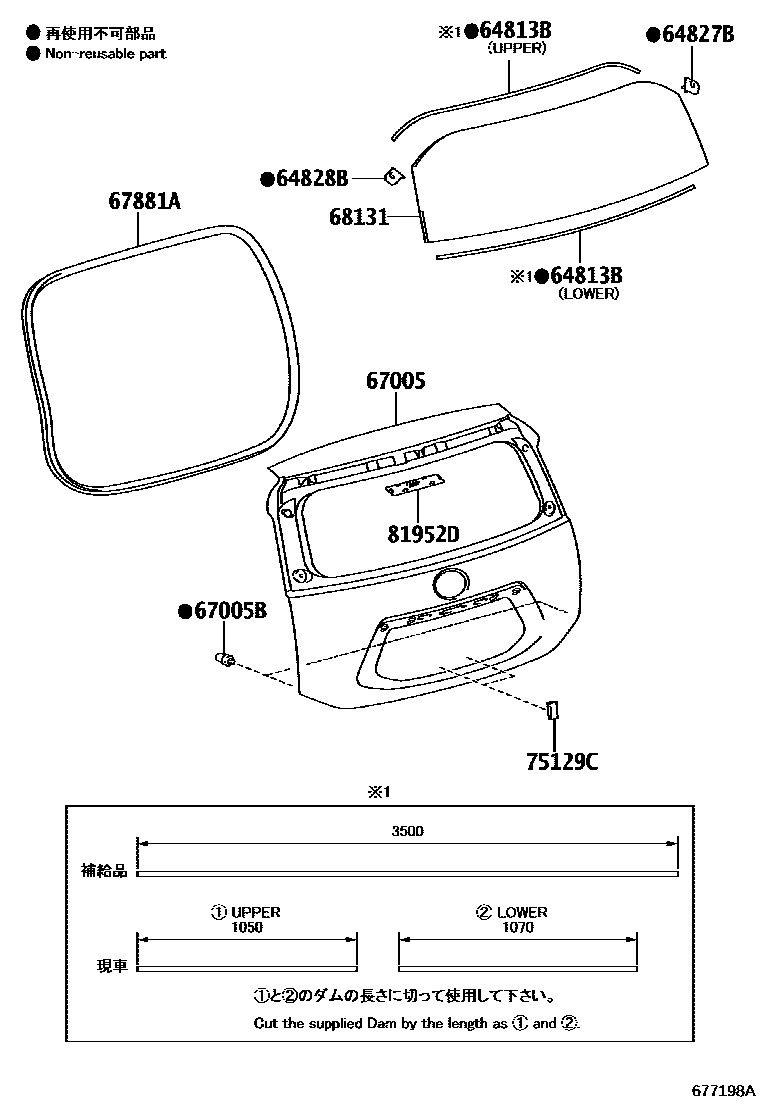

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-64010iNHP10201112-201706

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52100iNHP10201112-201706

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52100iNHP10201112-201706

67005PANEL SUB-ASSY, BACK DOOR

main67005-52D10iNHP10..COVER,G,S201112-201706

main67005-52D20iNHP10..L201112-201706

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09146iNHP10201112-201706

67881AWEATHERSTRIP, BACK DOOR

main67881-52190iNHP10201112-201706

68131GLASS, BACK DOOR

main68105-52912iNHP10..L201112-201706

main68105-52913iNHP10..G,S,XRBN201112-201706

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iNHP10201112-201706

81952DCOVER, REAR LAMP

main81952-52030iNHP10201112-201706

9 parts on this diagram · 2 diagrams in section
