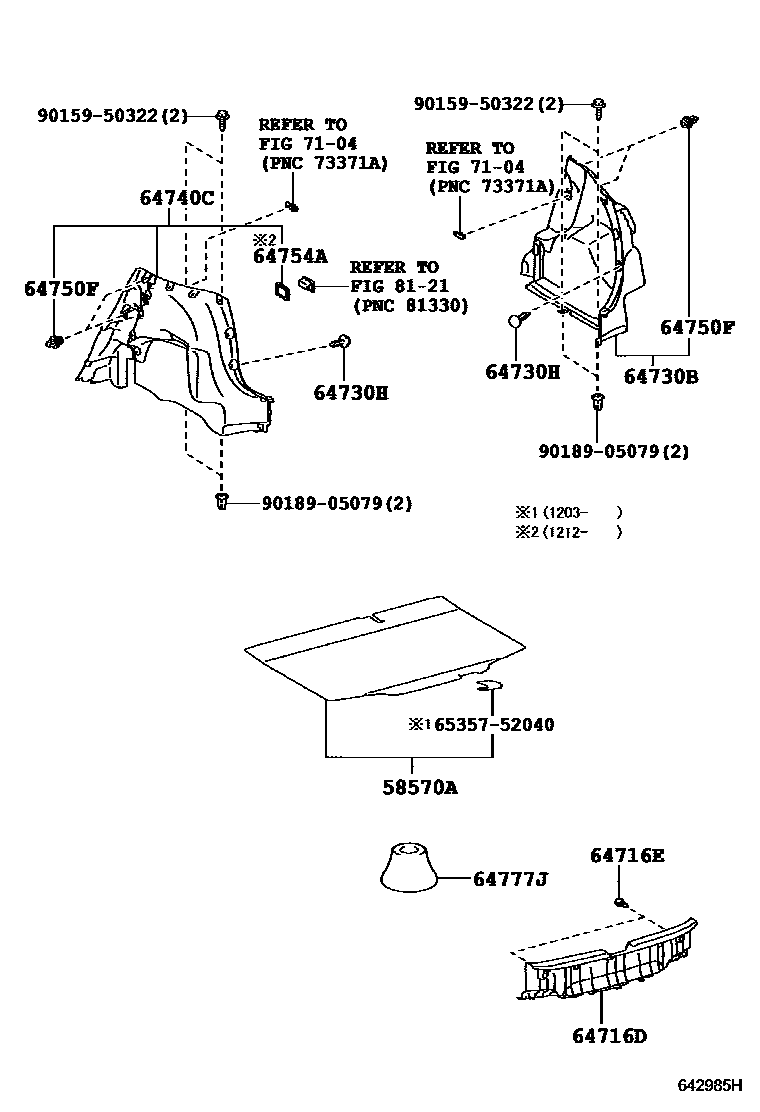

DECK BOARD & DECK TRIM COVER
58570AMAT ASSY, REAR FLOOR
DARK GRAY,TRIM2#,3#,4#,8#
DARK GRAY,TRIM2#
DARK GRAY,TRIM0#,1#,2#,4#
DARK GRAY,TRIM0#,2#,4#
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM2#
DARK GRAY,TRIM2#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
DARK GRAY,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64777JCUSHION, SPARE WHEEL
7104
8121
6535752040COVER, FRONT FLOOR CORNER
main65357-52040
9015950322
main90159-50322
9018905079
main90189-05079
14 parts on this diagram · 7 diagrams in section
