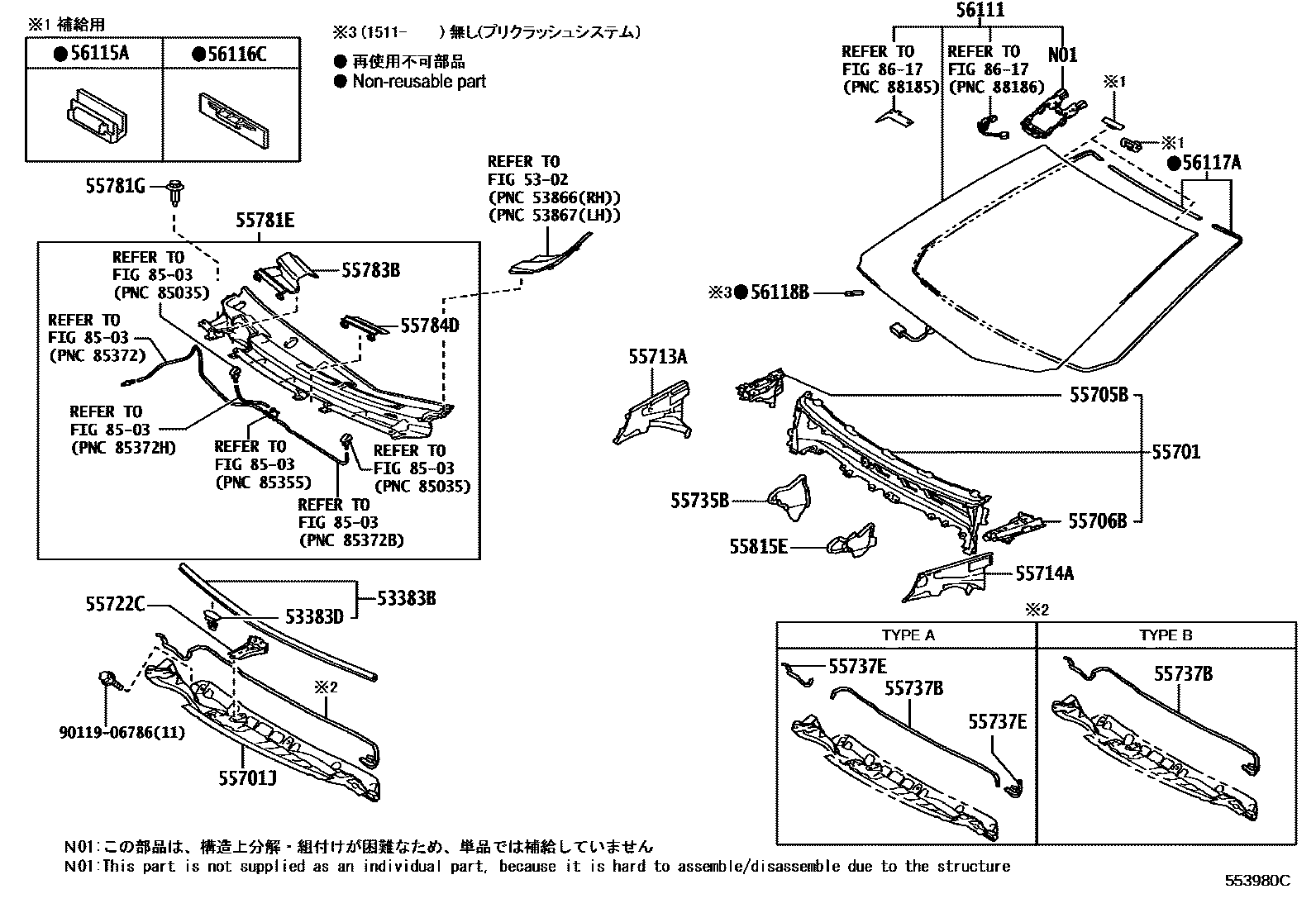

COWL PANEL & WINDSHIELD GLASS

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53383BSEAL, HOOD TO COWL TOP

main53383-52140iNHP10201112-201412

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×5iNHP10201706

55701PANEL SUB-ASSY, COWL

main55700-52350iNHP10201412-201612

main55700-52351iNHP10201701-201706

main55700-52410iNHP10201706

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52290iNHP10201412-201706

main55701-52380iNHP10201706

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52180iNHP10201112-201412

main55705-52200iNHP10201706

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52180iNHP10201112-201412

main55706-52200iNHP10201706

55713APANEL, COWL TOP SIDE, RH

main55713-52130iNHP10201706

55714APANEL, COWL TOP SIDE, LH

main55714-52130iNHP10201706

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52170iNHP10201412-201706

55735BSEAL, FRONT AIR SHUTTER

main55735-52110iNHP10201112-201412

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52160iNHP10201706

main55737-52180iNHP10201112-201412

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52170×2iNHP10201412-201706

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52270supersedes 55708-52260iNHP10201112-201412

main55708-52271supersedes 55708-52261iNHP10201604-201706

main55708-52320supersedes 55708-52310iNHP10201706

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-16010×2iNHP10201412-201706

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52300iNHP10201112-201412

main55783-52330iNHP10201706

55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH

main55784-52120iNHP10201112-201412

main55784-52150iNHP10201706

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52060iNHP10201706

56111GLASS, WINDSHIELD

main56101-52932iNHP10..G,S,XRBN201412-201511

main56101-52933supersedes 56101-52931iNHP10..L201112-201412

main56101-52934supersedes 56101-52932iNHP10..G,S201112-201412

main56101-5A903iNHP10..L,S201511-201706

main56101-5A904iNHP10..L201511-201706

main56101-5A905supersedes 56101-5A902iNHP10..G,XRBN; NHP10..S201511-201706

main56101-5A906supersedes 56101-5A905iNHP10..G,XRBN; NHP10..L,S201511-201706

main56101-5A907supersedes 56101-52931iNHP10..L201706

main56101-5A908supersedes 56101-5A902iNHP10..COVER,G; NHP10..S201706

main56101-5A909iNHP10..COVER,G; NHP10..L,S201706

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNHP10201112-201412

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNHP10201112-201412

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNHP10; NHP10..L,S201706

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-30100iNHP10..L,S201511-201706

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9011906786

main90119-06786

26 parts on this diagram · 1 diagram in section
