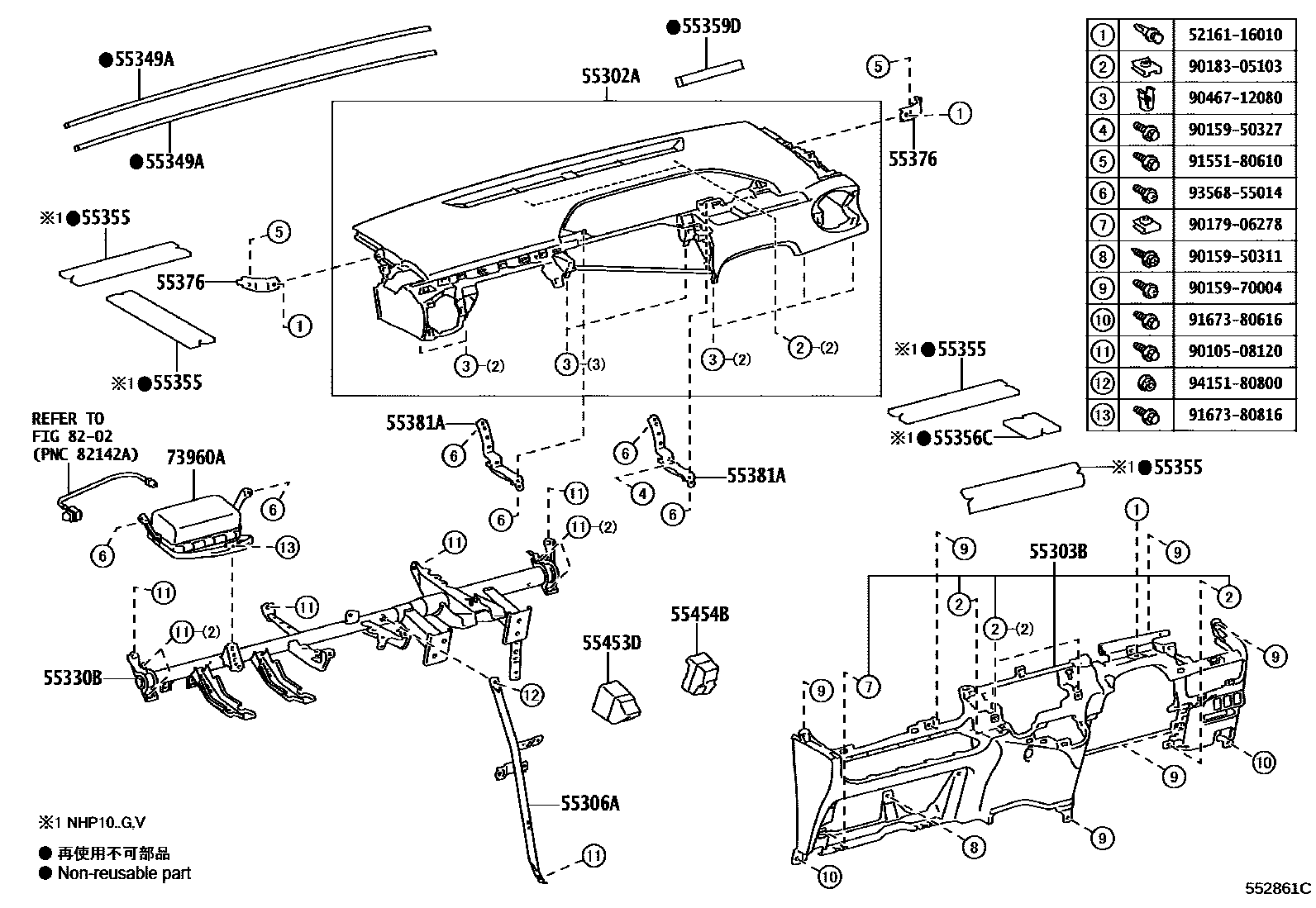

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1����� 0006 1����� 0007 1���������� 0008 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52160-C0iNHP10201112-201406

BLACK,TRIM2#

main55302-52905-C0iNHP10..L201406-201412

BLACK,TRIM2#

main55302-52906-C0iNHP10..G; NHP10..S201706

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,3#,4#,8#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52280-C0iNHP10..G; NHP10..L; NHP10..S201706

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#,8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52180iNHP10201412-201706

main55306-52430iNHP10201801

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52690iNHP10201112-201412

main55330-52810iNHP10201511-201702

main55330-52870iNHP10201702-201706

main55330-52871iNHP10201706-201907

main55330-52873iNHP10201907

55349ACUSHION, INSTRUMENT PANEL

main55349-52180iNHP10201301-201412

main55349-52240iNHP10201301-201412

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52200×4iNHP10..G,S,XRBN201412-201706

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52200iNHP10..G,S201112-201412

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52150iNHP10201412-201706

main55359-52151iNHP10201311-201402

main55359-52190iNHP10201112-201301

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52110×2iNHP10201412-201706

55381ABRACKET, FINISH PANEL MOUNTING

main55381-52050×2iNHP10201112-201412

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52140iNHP10201112-201412

main55453-52180iNHP10201511-201706

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52130iNHP10201112-201412

main55454-52180iNHP10201511-201706

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52190iNHP10201112-201412

8202WIRING & CLAMP

→ Go to FIG 82-02

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010508120

main90105-08120

9015950311

main90159-50311

9015950327

main90159-50327

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9155180610

main91551-80610

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

27 parts on this diagram · 8 diagrams in section
