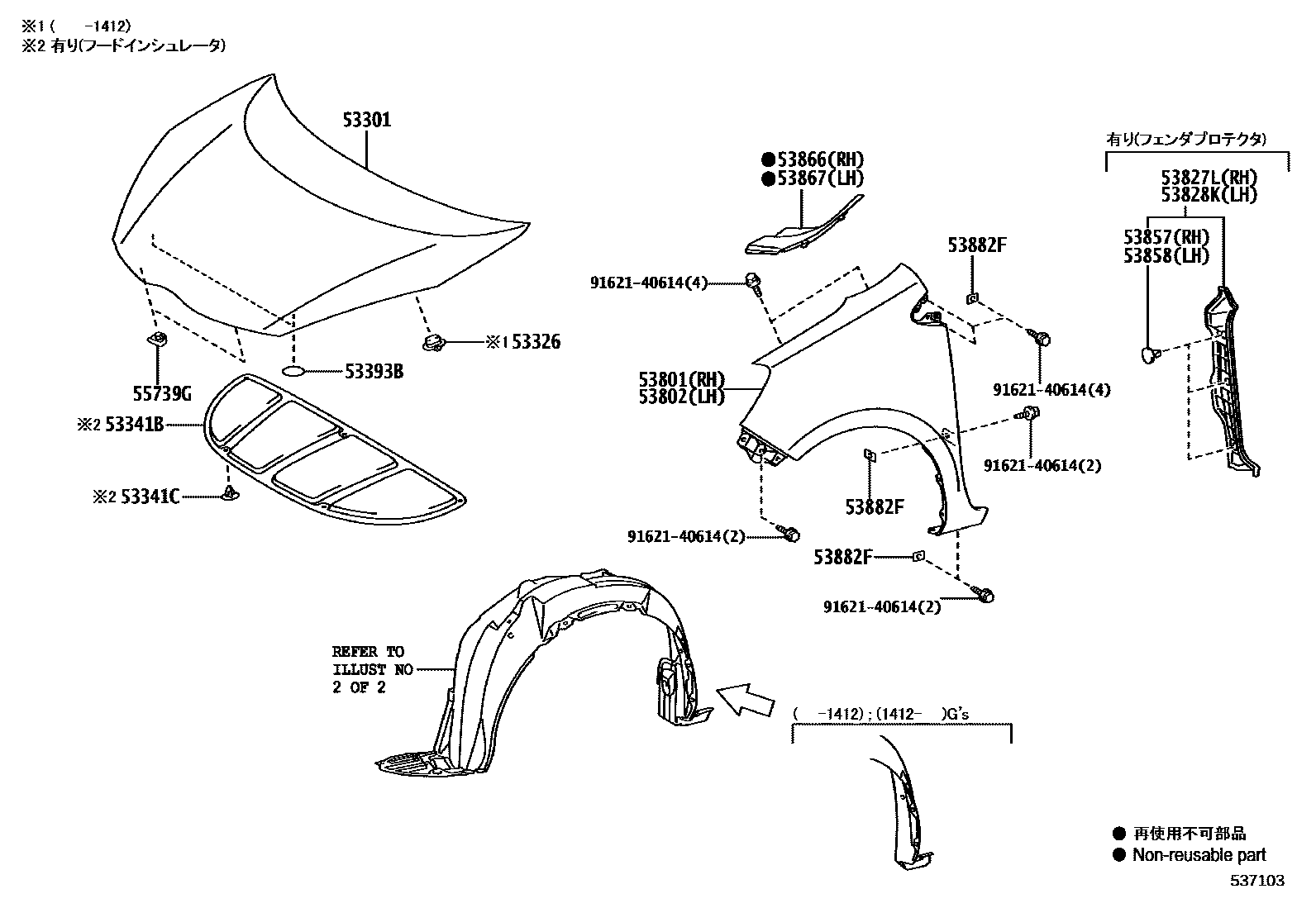

Toyota AQUA — HOOD & FRONT FENDER
53326CLIP, HOOD PROTECTOR
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
55739GSTOPPER, HOOD
9162140614
16 parts on this diagram · 4 diagrams in section
HOOD & FRONT FENDER for Toyota AQUA
This section contains 35 genuine Toyota parts for the HOOD & FRONT FENDER system of the Toyota AQUA. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, FRONT BUMPER & BUMPER STAY, HOOD SUB-ASSY, CLIP, HOOD PROTECTOR, INSULATOR, HOOD.
