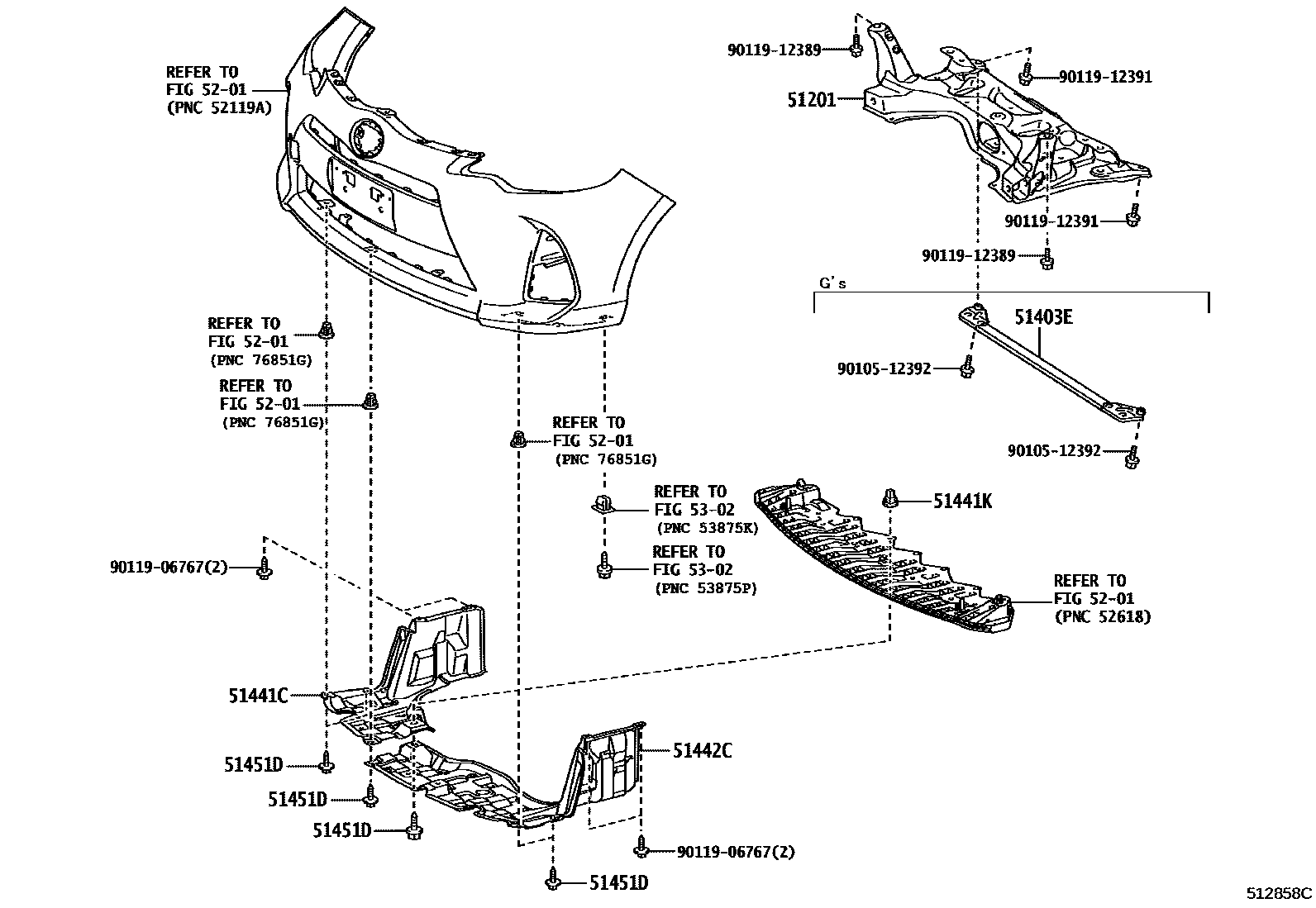

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52087iNHP10201706

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-WY050iNHP10..G201312-201412

51441CCOVER, ENGINE UNDER, RH

main51441-52300iNHP10201112-201412

main51441-52310iNHP10201706

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076iNHP10201412-201706

51442CCOVER, ENGINE UNDER, LH

main51442-52140iNHP10201112-201412

main51442-52150iNHP10201706

51451DSCREW, NO.1

main90159-60383×6iNHP10201112-201412

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9010512392

main90105-12392

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

12 parts on this diagram · 2 diagrams in section
