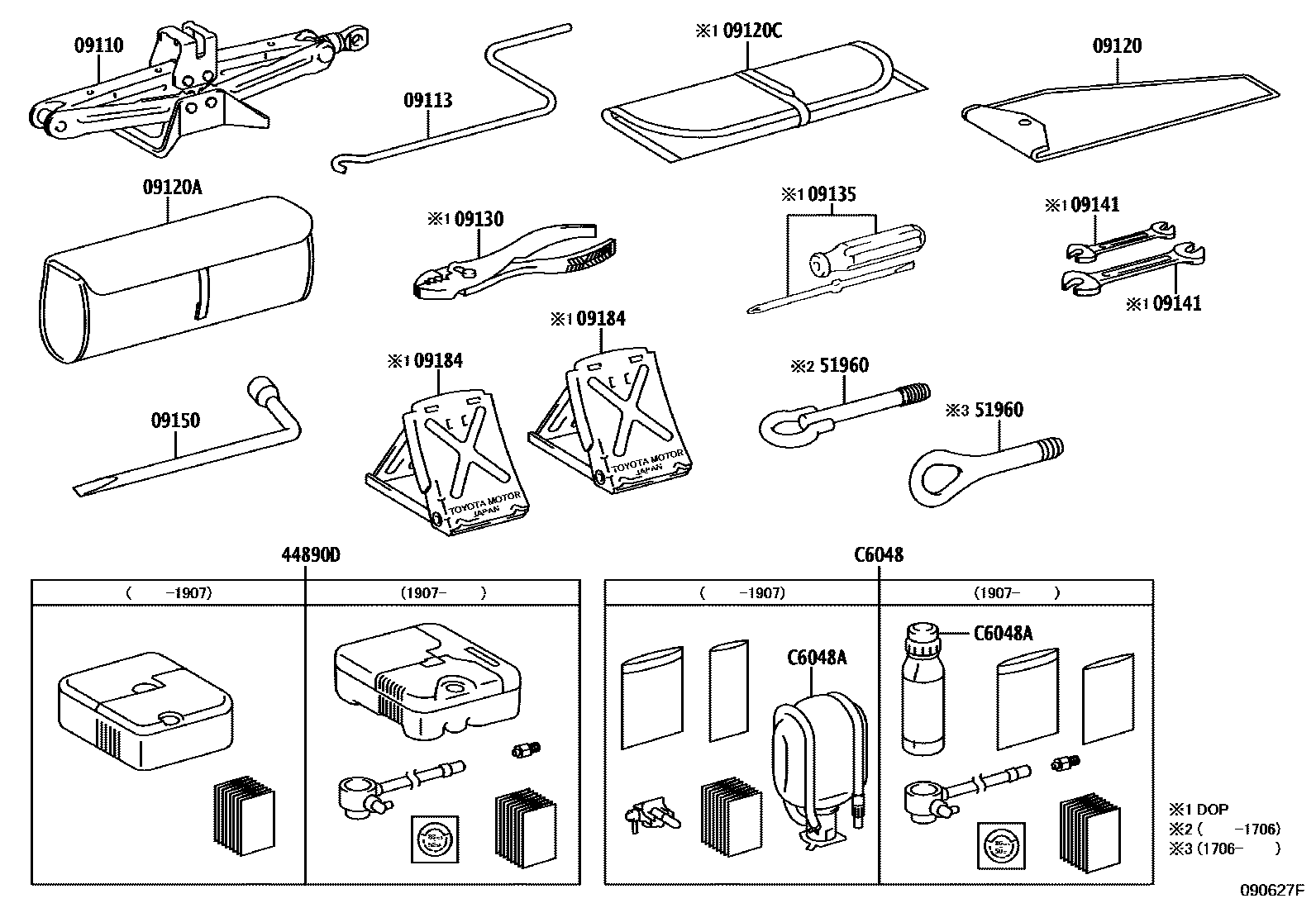

STANDARD TOOL

09110JACK ASSY

main09111-12230iNHP10201112-201706

09113HANDLE, JACK

main09113-20050iNHP10201112-201706

main09113-52060iNHP10201706

09120BAG, TOOL

main09120-52070iNHP10..L201112-201706

09120ACASE, TOOL

09120CBAG,TOOL, NO.2

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010iNHP10201112-201706

09184STOPPER, WHEEL

main09184-00010

44890DCOMPRESSOR ASSY, AIR

main44890-52020iNHP10..G,S201112-201204

sub44890-52021

main44890-52021iNHP10..G,S201205-201907

sub44890-52022

main44890-K0010iNHP10..COVER,G,S201907

sub44890-K0011

51960HOOK ASSY, FRONT

main51960-47020iNHP10201112-201507

main51960-52090iNHP10201508-201706

main51961-12021iNHP10201706

C6048REPAIR SET, TIRE

main42683-52020iNHP10..G,S201112-201204

sub42683-52021

main42683-52021iNHP10..G,S201205-201907

main42683-K0010iNHP10..COVER,G,S201907

C6048ASEALANT, REPAIR TIRE

mainC604852020iNHP10..G,S201112-201204

subC6048-52021

mainC604852021iNHP10..G,S201205-201907

mainC6048K0010iNHP10..COVER,G,S201907

14 parts on this diagram · 1 diagram in section
