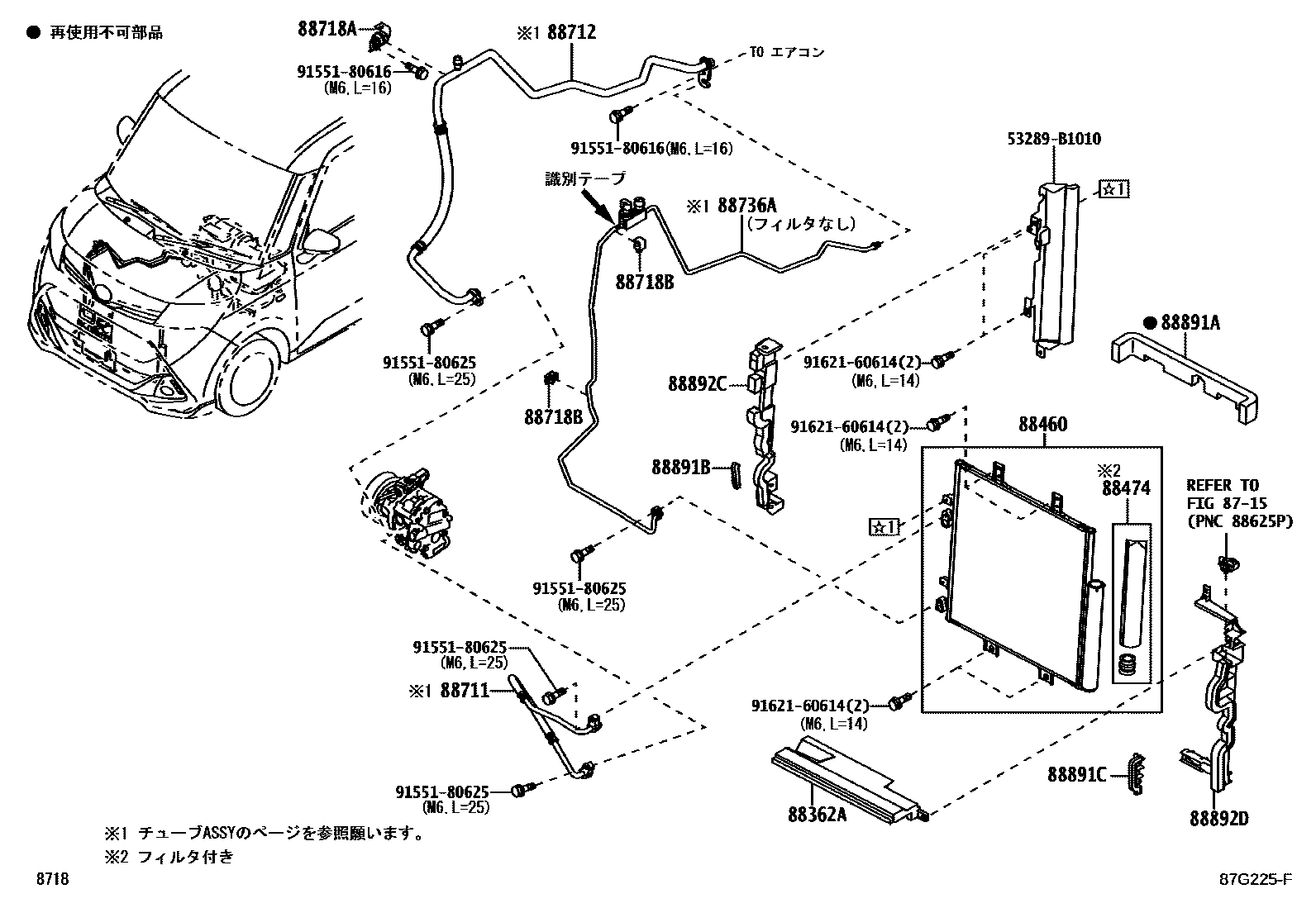

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ 0002 1������ 0003 1������ 0004 1�����ASSY 0005 1�����ASSY

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88362APLATE,SEAL

main88362-B1010iM900,910..TANK201611-202009

main88362-B1040iM900,910..G,X202009

88460CONDENSER ASSY, COOLER

main88460-B1020iM900,910201611-202009

88474DRYER, COOLER

main88474-B2010iM900,910201611-202009

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-B1210iM900,910201611-202009

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-B1240iM900,910201611-202009

main88712-B1241iM900,910202209

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-B1070iM900,910201611-202009

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-13060×2iM900,910201611-202009

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-B1320iM900,910201611-201811

main88716-B1321iM900,910201811-202009

main88716-B1322iM900,910202202-202209

main88716-B1323iM900,910202209

88891APACKING A (FOR COOLER)

main88578-B1600iM900,910..ROOMY201611-202009

88891BPACKING B (FOR COOLER)

main88619-B1050iM900,910201611-202009

88891CPACKING C (FOR COOLER)

main88629-B1030iM900,910201611-202009

main88629-B1070iM900,910202009

88892CPLATE, CONDENSER, NO.1

main53285-B1020iM900,910201611-202009

main53285-B1100iM900,910202209

88892DPLATE, CONDENSER, NO.2

main53286-B1020iM900,910201611-202009

main53286-B1100iM900,910202009

53289B1010COVER, RADIATOR SIDE BAFFLE

main53289-B1010

9155180616

main91551-80616

9155180625

main91551-80625

9162160614

main91621-60614

18 parts on this diagram · 5 diagrams in section
