8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8202WIRING & CLAMP

→ Go to FIG 82-02

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

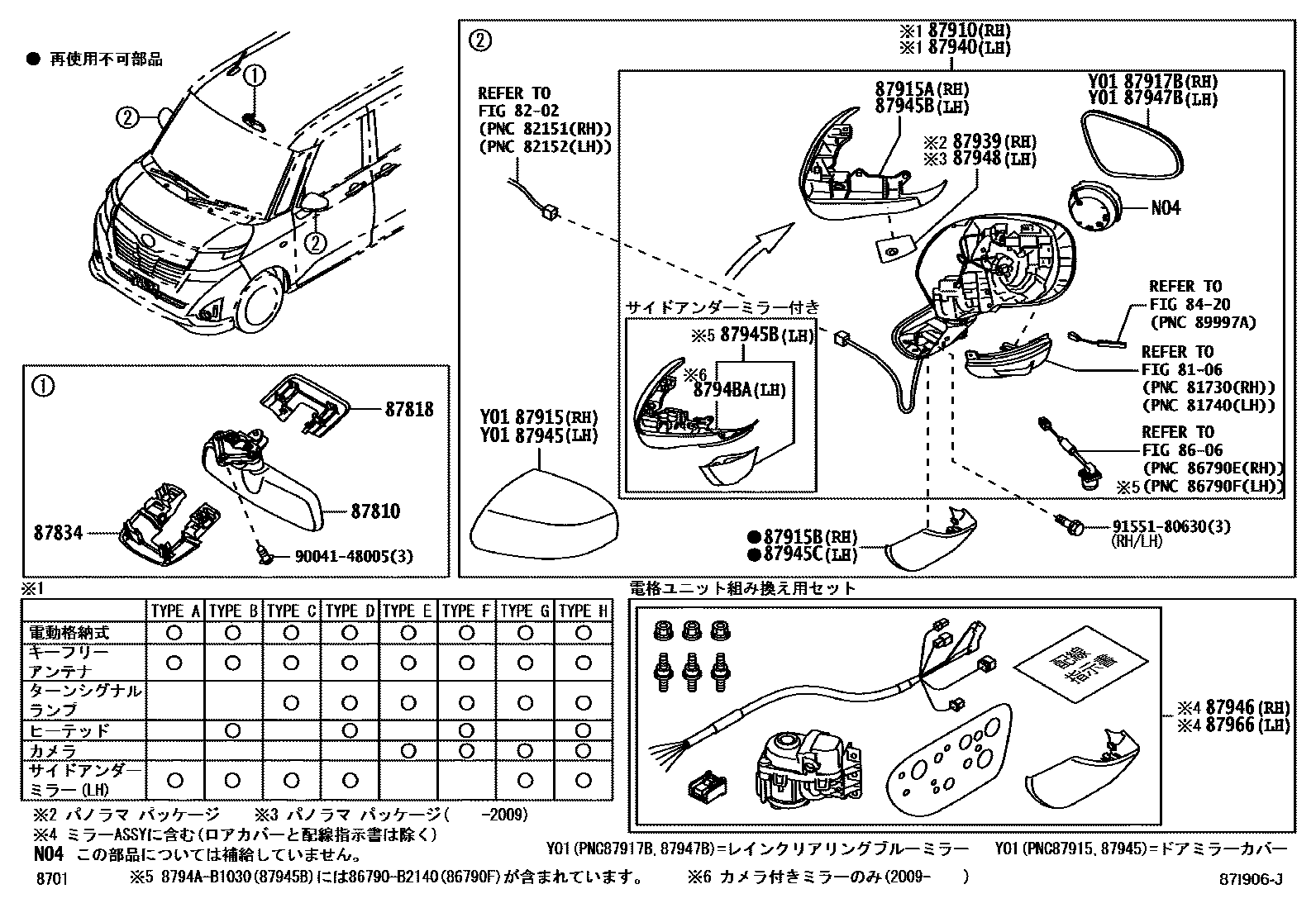

87810MIRROR ASSY, INNER REAR VIEW

main87810-B1010i202009-202307

main87810-B1011i202308

87818COVER, INNER RR VIEW MIRROR

main87818-B1010-B0i202009

LT.GRAY,TRIM2#; LT.GRAY,TRIM4#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-B1060-B0i201611-202009

LT.GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B1420supersedes 87910-B1411i201611-201812

main87910-B1421supersedes 87910-B1411i201901-202009

main87910-B1440supersedes 87910-B1431i201611-201812

main87910-B1441supersedes 87910-B1431i201901-202009

main87910-B1450supersedes 87910-B1431i201611-201812

main87910-B1451supersedes 87910-B1431i201901-202009

main87910-B1460i201611-201811

main87910-B1461supersedes 87910-B1431i201901-202009

main87910-B1610supersedes 87910-B1600i202009

main87910-B1630supersedes 87910-B1621i202009-202308

main87910-B1631supersedes 87910-B1621i202309

main87910-B1640supersedes 87910-B1621i202009-202308

main87910-B1641supersedes 87910-B1621i202309

main87910-B1650supersedes 87910-B1621i202009-202308

main87910-B1651supersedes 87910-B1621i202309

87915COVER, OUTER MIRROR, RH

main87915-B1210-A0i202009

WHITE PEARL MC.CS,W24; WHITE PEARL MC.CS,W24 ,X99

main87915-B1210-B0i201611-202009

SILVER ME.,S28

main87915-B1210-C0i202009

BLACK M.M.,X07

main87915-B1210-D0i201611-202009

BROWN MC.CS,R59

main87915-B1210-D1i201611-202009

MAGENTA M.M.,R72; MAGENTA M.M.,R72 ,XE2

main87915-B1210-D2i201811-202009

RED ME.,R67; RED ME.,R67 ,X96

main87915-B1210-E0i202009-202209

COPPER SE.,T33; COPPER SE.,T33 ,XG2

main87915-B1210-F0i201611-202009

GOLD SE.,XG6 ,Y14; GOLD SE.,Y14

main87915-B1210-G0i201611-201811

GREEN,G57; GREEN,G57 ,XG4

main87915-B1210-J0i201611-202009

LIGHT BLUE M.M.,B67; LIGHT BLUE M.M.,B67 ,XG5

main87915-B1210-J1i201611-202009

LASER BLUE CRYSTAL SHINE,B82; LASER BLUE CRYSTAL SHINE,B82 ,XG3

main87915-B1210-J5i202009

TURQUOISE M.M.,B86; TURQUOISE M.M.,B86 ,XH6

main87915-B1210-K1i202009

BLACKISH VIOLET SE.,P19

87915ACOVER, OUTER MIRROR, RH

main8791B-B1010i201611-202009

main8791B-B1030supersedes 8791B-B1020i201611-202009

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-B1230i202009

87917BMIRROR, OUTER REAR VIEW, RH

main87917-B1050supersedes 87917-B1040i201611-202009

main87917-B1070i202009

87939COVER, OUTER MIRROR HOLE, RH

main87939-B1010i202009-202412

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B1430supersedes 87940-B1421i201611-201812

main87940-B1431supersedes 87940-B1421i201901-202009

main87940-B1450supersedes 87940-B1441i201611-201812

main87940-B1451supersedes 87940-B1441i201901-202009

main87940-B1460supersedes 87940-B1441i201611-201812

main87940-B1461supersedes 87940-B1441i201901-202009

main87940-B1470i201611-201811

main87940-B1471supersedes 87940-B1441i201901-202009

main87940-B1620supersedes 87940-B1681i202009-202308

main87940-B1621supersedes 87940-B1681i202309-202412

main87940-B1630supersedes 87940-B1681i202009-202308

main87940-B1631supersedes 87940-B1681i202309

main87940-B1670supersedes 87940-B1660i202009

main87940-B1690supersedes 87940-B1681i202009-202308

main87940-B1691supersedes 87940-B1681i202309

87945COVER, OUTER MIRROR, LH

main87945-B1210-A0i202009

WHITE PEARL MC.CS,W24; WHITE PEARL MC.CS,W24 ,X99

main87945-B1210-B0i202009

SILVER ME.,S28

main87945-B1210-C0i202009

BLACK M.M.,X07

main87945-B1210-D0i202009

BROWN MC.CS,R59

main87945-B1210-D1i201611-202009

MAGENTA M.M.,R72; MAGENTA M.M.,R72 ,XE2

main87945-B1210-D2i202009

RED ME.,R67; RED ME.,R67 ,X96

main87945-B1210-E0i201611-202009

COPPER SE.,T33; COPPER SE.,T33 ,XG2

main87945-B1210-F0i201611-202009

GOLD SE.,XG6 ,Y14; GOLD SE.,Y14

main87945-B1210-G0i201611-201811

GREEN,G57; GREEN,G57 ,XG4

main87945-B1210-J0i201611-202009

LIGHT BLUE M.M.,B67; LIGHT BLUE M.M.,B67 ,XG5

main87945-B1210-J1i202009

LASER BLUE CRYSTAL SHINE,B82; LASER BLUE CRYSTAL SHINE,B82 ,XG3

main87945-B1210-J5i202009

TURQUOISE M.M.,B86; TURQUOISE M.M.,B86 ,XH6

main87945-B1210-K1i202009

BLACKISH VIOLET SE.,P19

87945BCOVER, OUTER MIRROR, LH

main8794A-B1010i201611-202009

main8794A-B1030supersedes 8794A-B1020i202009

main8794B-B1010i201611-201811

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-B1230i201611-202009

87946RETRACTOR, OUTER MIRROR, RH

main87946-B1070supersedes 87946-B1060i201611-202009

main87946-B1090supersedes 87946-B1080i201611-202009

main87946-B1100supersedes 87946-B1080i201611-202009

main87946-B1110supersedes 87946-B1080i201611-202009

main87946-B1120supersedes 87946-B1060i202009

main87946-B1130supersedes 87946-B1080i202009

main87946-B1140supersedes 87946-B1080i202009-202412

87947BMIRROR, OUTER REAR VIEW, LH

main87947-B1050i201611-202009

main87947-B1090supersedes 87947-B1080i202009

87948COVER, OUTER MIRROR HOLE, LH

main87948-B1010i201611-202009

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-B1020i202009

87966RETRACTOR, OUTER MIRROR, LH

main87966-B1070supersedes 87966-B1060i201611-202009

main87966-B1090supersedes 87966-B1080i201611-202009

main87966-B1100supersedes 87966-B1080i201611-201811

main87966-B1110supersedes 87966-B1080i201611-202009

main87966-B1120supersedes 87966-B1060i202009

main87966-B1130supersedes 87966-B1080i202009

main87966-B1140supersedes 87966-B1080i202009

9004148005

main90041-48005

9155180630

main91551-80630
