ANTENNA

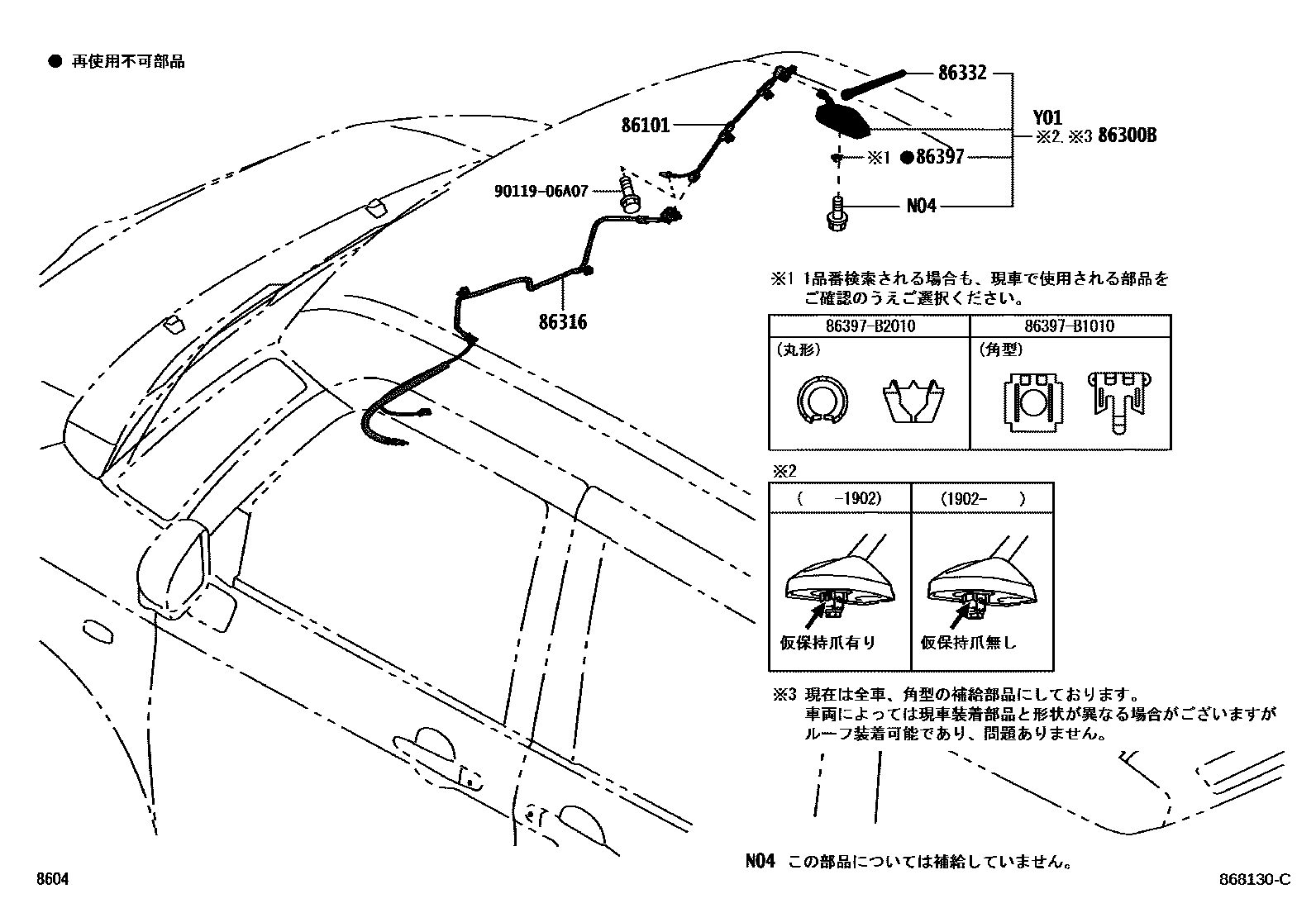

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86316-B1410i201611-202009

main86159-B1040supersedes 86316-B1410i202009-202412

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-B1140i201611-201703

main86300-B1150i201704-201902

main86300-B1151i201902-201904

main86300-B1152i201905-202009

main86300-B1190i202009-202412

86316CABLE, ANTENNA

main86316-B1400i201611-202009

main86159-B1050supersedes 86316-B1400i202009-202412

86332ROD, ANTENNA

main86332-B1080i201611-202009

main86332-B1070supersedes 86332-B1080i202009-202412

86397PLATE, ANTENNA EARTH

main86397-B1010i201704-202009

main86397-B2010i201611-201704

9011906A07

main90119-06A07

6 parts on this diagram · 2 diagrams in section
