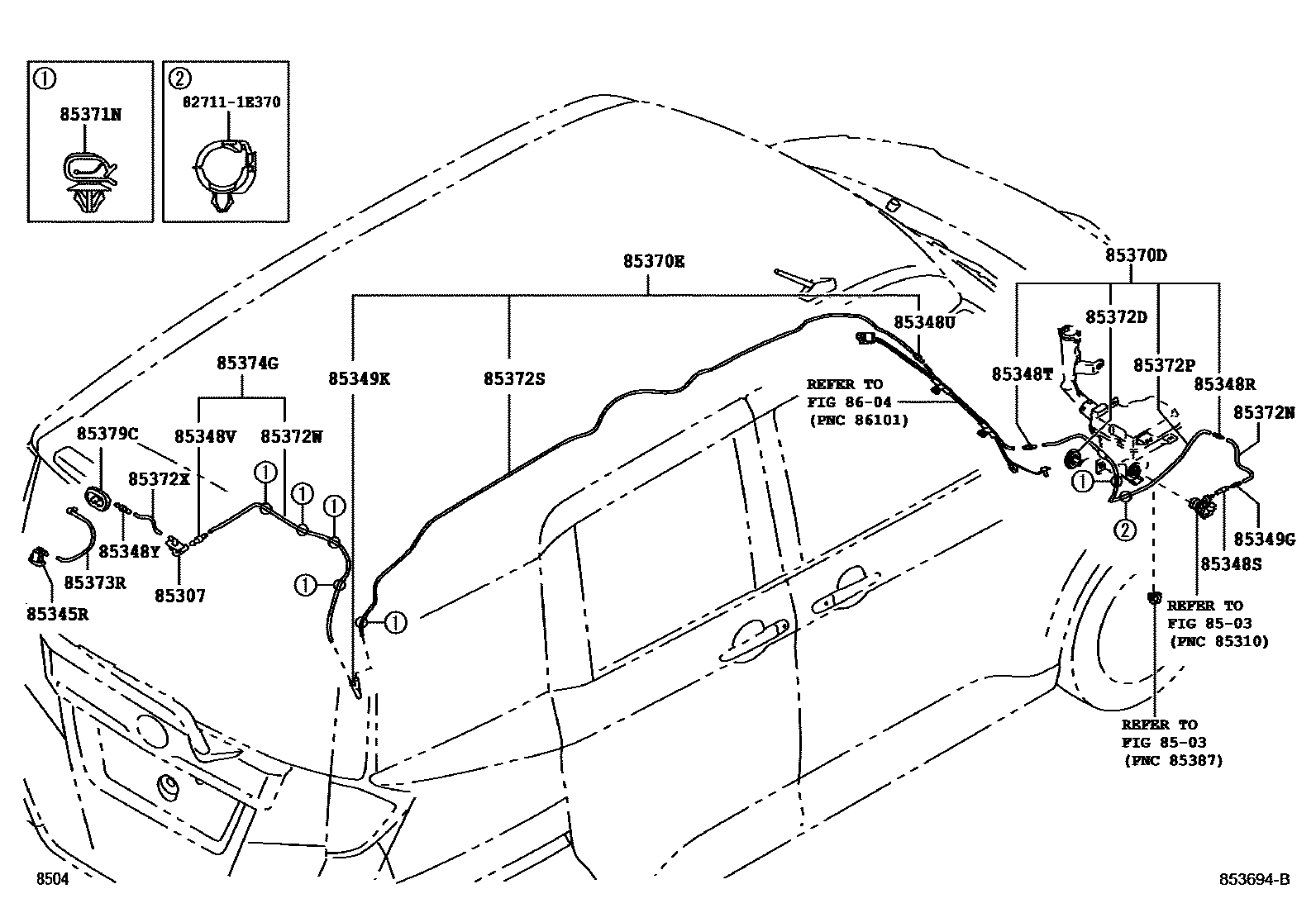

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85307GROMMET SUB-ASSY, WASHER

main85307-B2040iM900,910201611-202009

85345RNOZZLE, REAR WASHER

main85391-B2070iM900,910201611-202009

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-87201iM900,910201611-202009

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-87701iM900,910201611-202009

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-87201iM900,910201611-202009

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-87201iM900,910201611-202009

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-87201iM900,910201611-202009

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-87201iM900,910201611-202009

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-87201iM900,910201611-202009

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-97202iM900,910201611-202009

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-B1460iM900,910201611-202009

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-B1480iM900,910201611-202009

85371NCLAMP, REAR WASHER HOSE

main82711-1E300×6iM900,910202209

main82711-B2010×6iM900,910202009-202208

85372DGROMMET, REAR WASHER HOSE

main85373-B1020iM900,910201611-202009

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-B1430iM900,910201611-202009

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85376-87201iM900,910201611-202009

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main85374-97203iM900,910201611-202009

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main85343-97401iM900,910201611-202009

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main85375-87502iM900,910201611-202009

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85370-B2C10iM900,910201611-202009

85374GHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6)

main85370-B1470iM900,910201611-202009

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-B2040iM900,910201611-202009

8604ANTENNA

→ Go to FIG 86-04

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

25 parts on this diagram · 1 diagram in section
