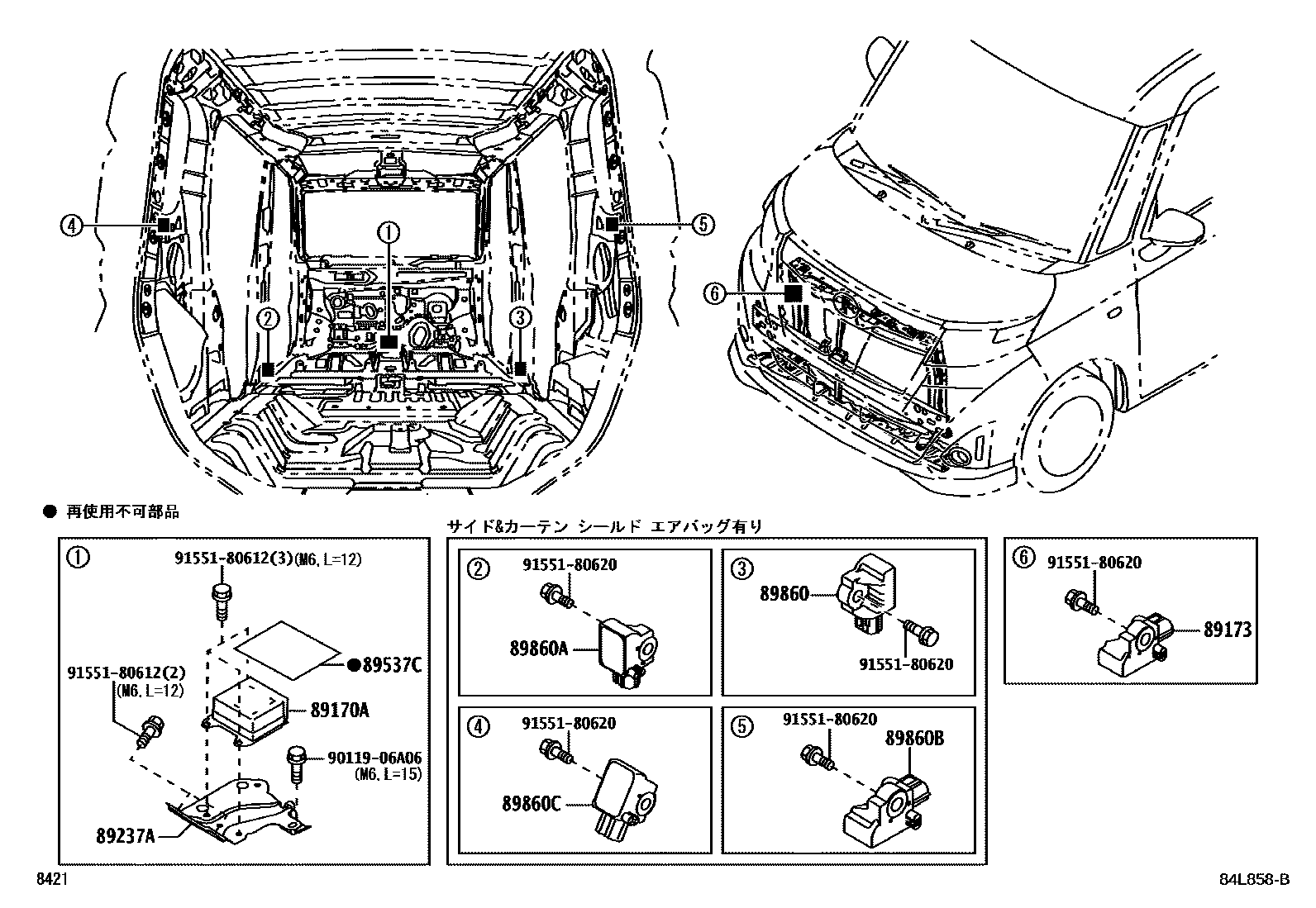

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-B1390supersedes 89170-B1370iM900,910201611-202009

main89170-B1430supersedes 89170-B1400iM900,910202009

89173SENSOR, AIRBAG, FRONT

main89173-B1060iM900,910201611-201703

main89173-B1061iM900,910201704-202009

89237ABRACKET, COMPUTER UNIT

main89237-B1040iM900,910201611-202009

89537CCOVER, COMPUTER

main19114-B1020iM900,910201611-202009

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-B1090iM900,910201611-201703

main89860-B1091iM900,910201704-202009

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-B1090iM900,910201611-201703

main89860-B1091iM900,910201704-202009

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89860-B1090iM900,910201611-201703

main89860-B1091iM900,910201704-202009

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89860-B1090iM900,910201611-201703

main89860-B1091iM900,910201704-202009

9011906A06

main90119-06A06

9155180612

main91551-80612

9155180620

main91551-80620

11 parts on this diagram · 1 diagram in section
