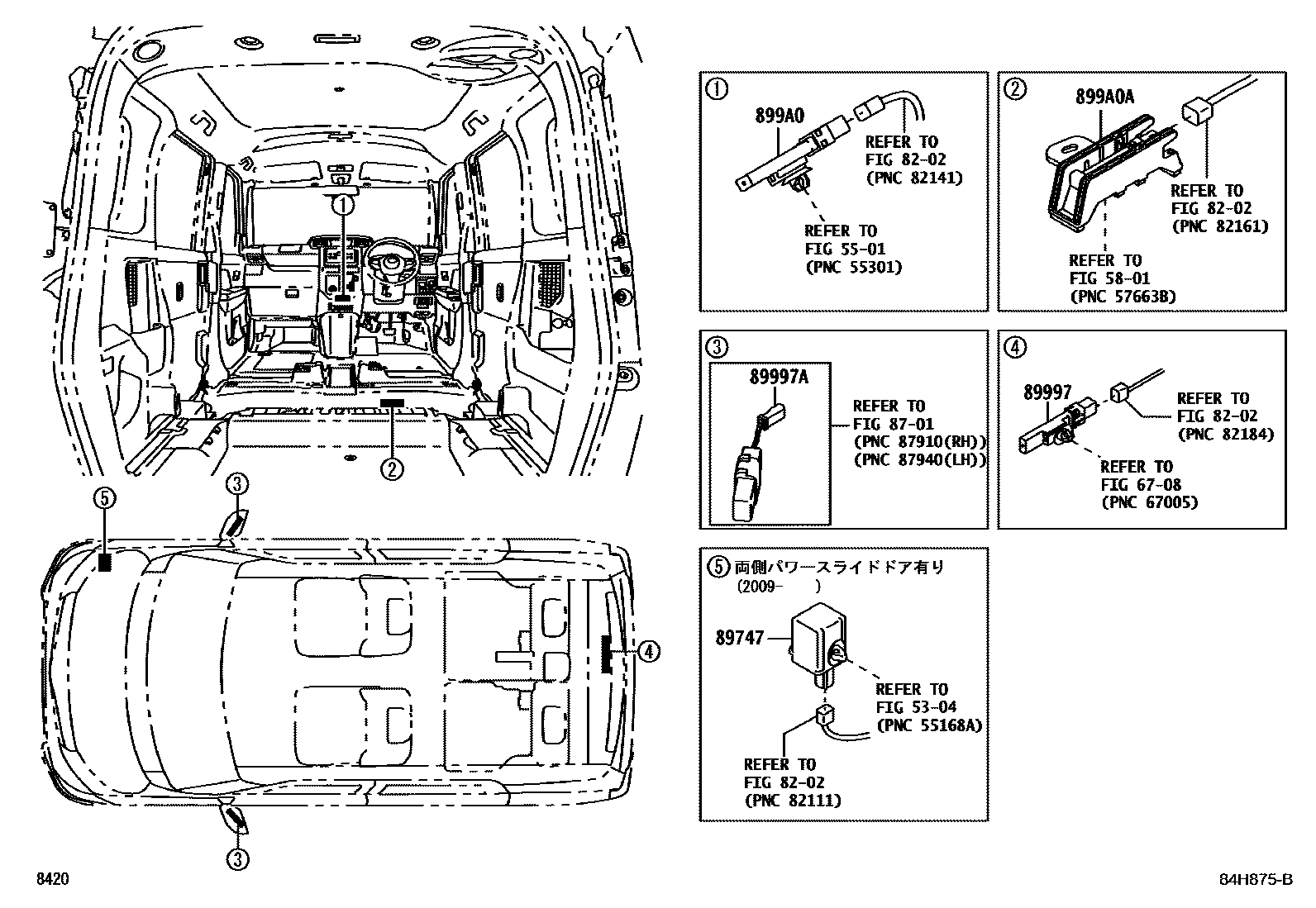

WIRELESS DOOR LOCK

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iM900,910..CTMG,G202009

89997ANTENNA, ELECTRICAL KEY

main89997-B2360iM900,910201611-202009

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-B2380×2iM900,910201611-202009

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-B2360iM900,910201611-202009

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-B1110iM900,910201611-202009

11 parts on this diagram · 1 diagram in section
