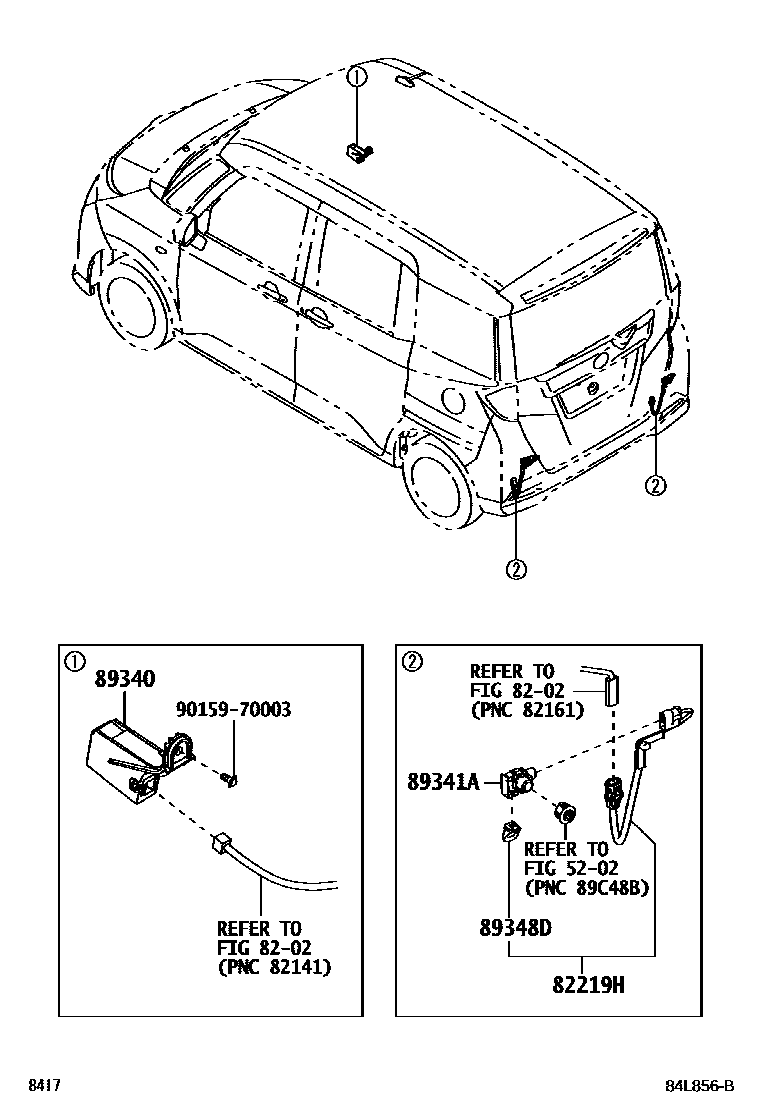

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8202WIRING & CLAMP

→ Go to FIG 82-02

82219HWIRE, SENSOR

main82219-B1070×2iM900,910..CTMG,G; M900,910..X201811-202009

main82219-B1330×2iM900,910202009

main82219-B2130×2iM900,910..NTBO; M900..TBO201611-201811

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-B1030iM900,910..NTBO; M900..TBO201611-201811

main89340-B1060iM900,910..CTMG,G; M900,910..X201811-202009

main89340-B1110iM900,910202009

89341ASENSOR, ULTRASONIC, NO.1

main89341-B2020-A1×2iM900,910..CTMG; M900,910..G..NTBO; M900,910..X201811-202009

main89341-B2020-B0×2iM900,910..(CTMG,G)..NTBO; M900,910..X201811-202009

main89341-B2020-C0×2iM900,910..(ROOMY,TANK)..NTBO; M900..(ROOMY,TANK)..TBO201611-201811

main89341-B2020-D0×2iM900,910..(CTMG,G)..NTBO; M900,910..X201811-202009

main89341-B2020-D1×2iM900,910..CTMG; M900,910..G; M900,910..X201811-202009

main89341-B2020-D4×2iM900,910..CTMG..NTBO; M900,910..G..NTBO; M900,910..X201811-202009

main89341-B2020-E5×2iM900..ROOMY..CTMG..TBO; M900..ROOMY..G..TBO201611-202009

COPPER SE.,T33; COPPER SE.,T33 ,XG2

main89341-B2020-F1×2iM900..TANK..CTMG..TBO; M900..TANK..G..TBO201611-202009

GOLD SE.,XG6 ,Y14; GOLD SE.,Y14

main89341-B2020-G1×2iM900,910..(ROOMY,TANK)..(G,X)..NTBO; M900,910..(ROOMY,TANK)..CTMG..NTBO; M900..(ROOMY,TANK)..CTMG..TBO; M900..(ROOMY,TANK)..G..TBO201611-201811

main89341-B2020-J3×2iM900,910..CTMG..NTBO; M900,910..G..NTBO; M900,910..X201811-202009

main89341-B2020-J7×2iM900..CTMG..TBO; M900..G..TBO201611-202009

LASER BLUE CRYSTAL SHINE,B82; LASER BLUE CRYSTAL SHINE,B82 ,XG3

main89341-B2060-A2×2iM900,910..CTMG,G; M900,910..X202009

WHITE PEARL MC.CS,W24; WHITE PEARL MC.CS,W24 ,X99

main89341-B2060-B0×2iM900,910202009

SILVER ME.,S28

main89341-B2060-C0×2iM900,910..CTMG,G; M900,910..X202009

BLACK M.M.,X07

main89341-B2060-D0×2iM900,910..CTMG,G; M900,910..X202009

RED ME.,R67; RED ME.,R67 ,X96

main89341-B2060-D3×2iM900,910202009

BROWN MC.CS,R59

main89341-B2060-E1×2iM900,910..CTMG,G; M900,910..X202009-202209

COPPER SE.,T33; COPPER SE.,T33 ,XG2

main89341-B2060-J0×2iM900,910..CTMG,G; M900,910..X202009

LASER BLUE CRYSTAL SHINE,B82; LASER BLUE CRYSTAL SHINE,B82 ,XG3

main89341-B2060-J3×2iM900,910..CTMG,G; M900,910..X202009

TURQUOISE M.M.,B86; TURQUOISE M.M.,B86 ,XH6

main89341-B2060-K0×2iM900,910202009

BLACKISH VIOLET SE.,P19

89348DCLIP, ULTRASONIC SENSOR

main89348-35030×2iM900,910..NTBO; M900..TBO201611-201811

9015970003

main90159-70003

7 parts on this diagram · 3 diagrams in section
