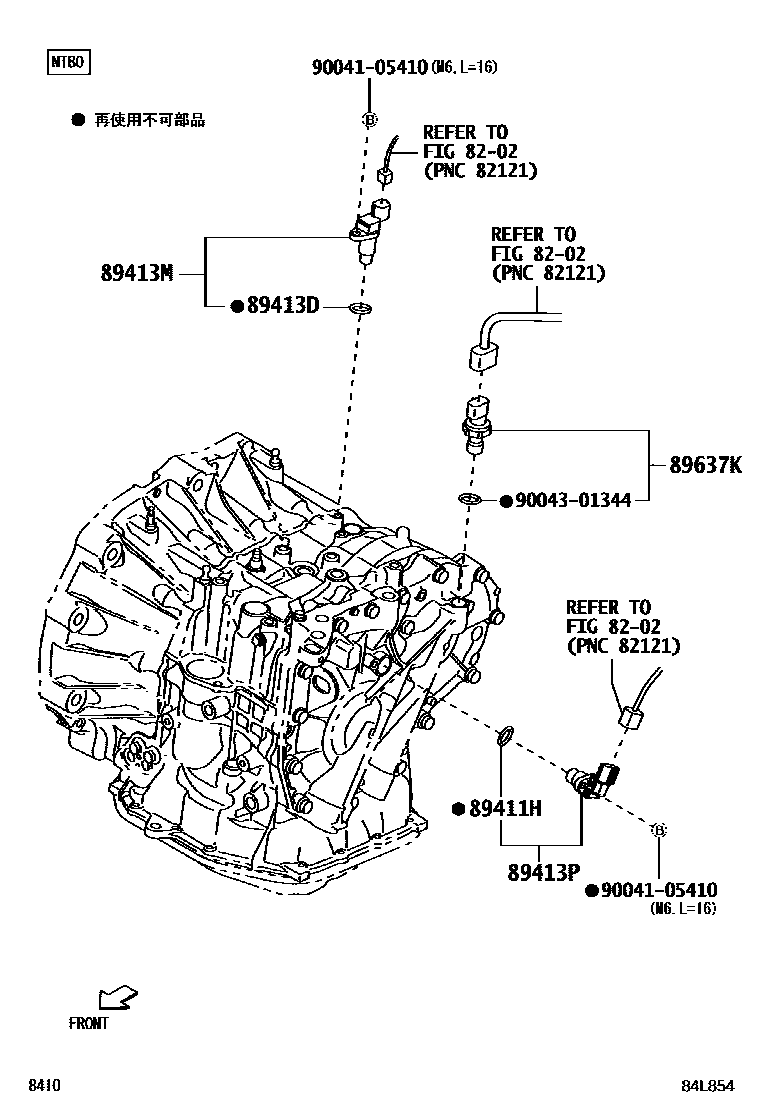

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

89411HRING, O

main90043-01278iM900,910..NTBO202009

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iM900,910..NTBO201611-202009

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-97202iM900,910..NTBO201611-202009

main89413-B1020iM900..TBO202009

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B1030iM900..TBO201611-202009

main89413-B2010iM900,910..NTBO201611-202009

89637KSENSOR, OIL PRESSURE

main89637-B1010iM900..TBO201611-202009

main89637-B2010iM900,910..NTBO202009

9004105410

main90041-05410

9004301344

main90043-01344

8 parts on this diagram · 2 diagrams in section
