SWITCH & RELAY & COMPUTER

0001 1�����&��������� 0002 1�������� 0003 1�������� 0004 1������������ NO.1 0005 1������������ NO.2 0006 1������������ NO.2 0007 1������������ NO.2 0008 1������������ NO.2 0009 1���&��� NO.1 0010 1���&��� NO.2 0011 1������� 0012 1������� 0013 1������� 0014 1������� 0015 1�������

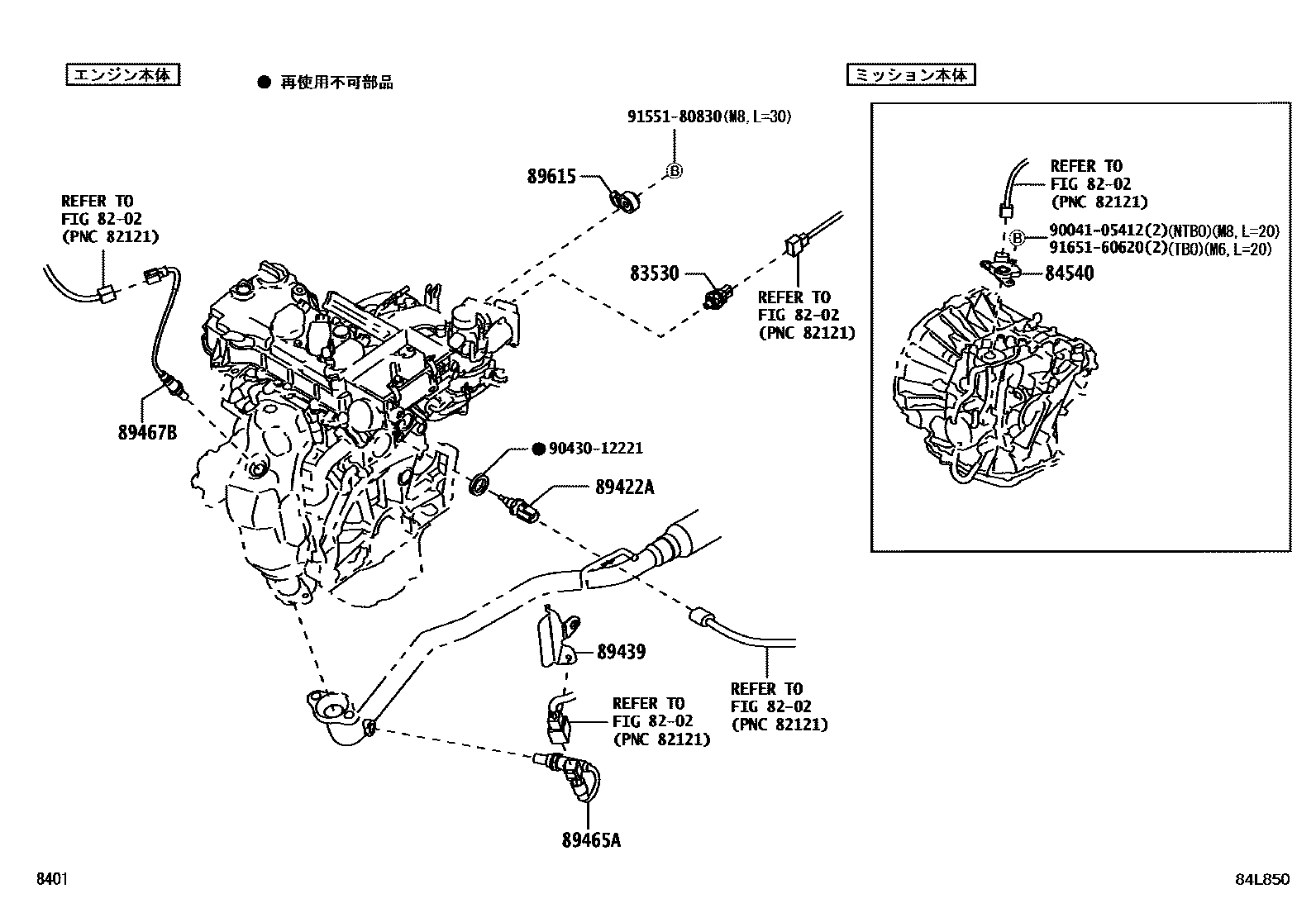

8202WIRING & CLAMP

→ Go to FIG 82-02

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iM900,910201611-202009

main83530-60020iM900,910201611-202009

84540SWITCH ASSY, NEUTRAL START

main84540-B1010iM900..TBO202009

main84540-B2050iM900,910..NTBO201611-202009

89422ASENSOR, WATER TEMPERATURE

main89422-33030iM900,910201611-202009

89439BRACKET, SENSOR

main89439-B1100iM900,910..NTBO202009

main89439-B1130iM900..TBO202009

89465ASENSOR, OXYGEN NO.2

main89465-B1120iM900,910201611-202009

89467BSENSOR, AIR FUEL RATIO

main89467-B1040iM900,910..NTBO201611-202009

main89467-B1050iM900..TBO201611-202009

89615SENSOR, KNOCK CONTROL

main89615-20090iM900,910201611-202009

9004105412

main90041-05412

9043012221

main90430-12221

9155180830

main91551-80830

9165160620

main91651-60620

12 parts on this diagram · 15 diagrams in section
