SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

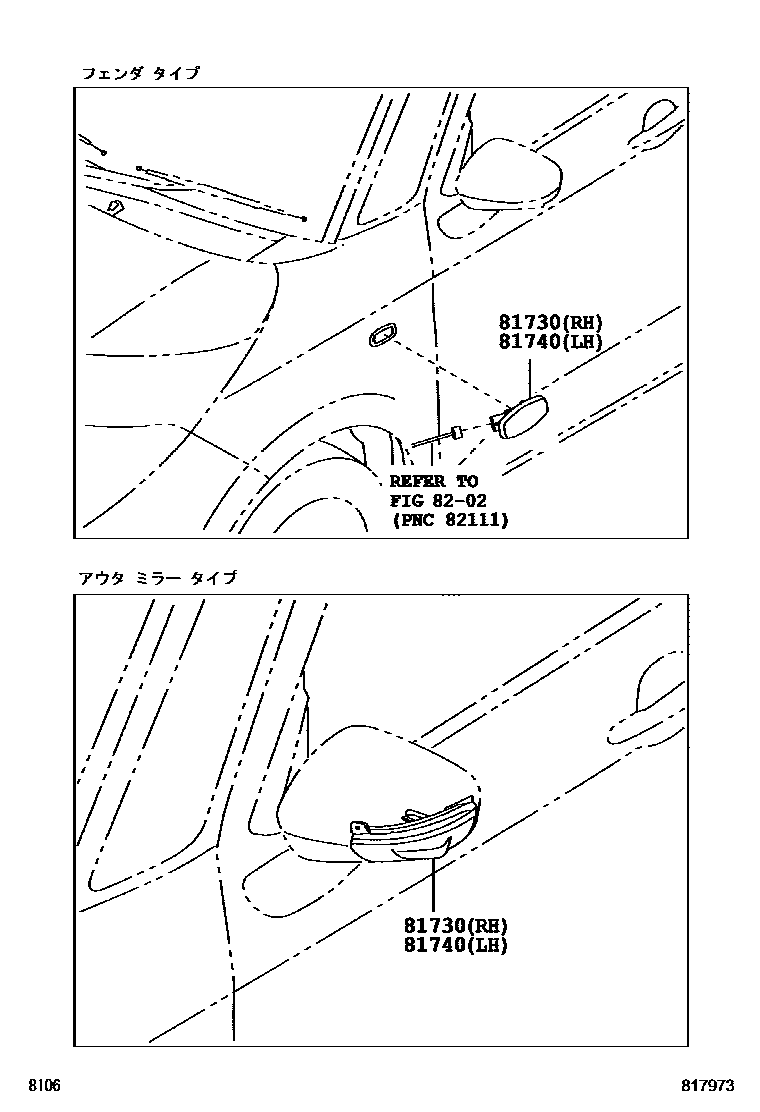

Parts diagram

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-B1030i201611-202009

main81730-B2140i201611-202009

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-B2140i201611-202009

main81740-B1020i202009

8202WIRING & CLAMP

→ Go to FIG 82-02

3 parts on this diagram · 1 diagram in section
