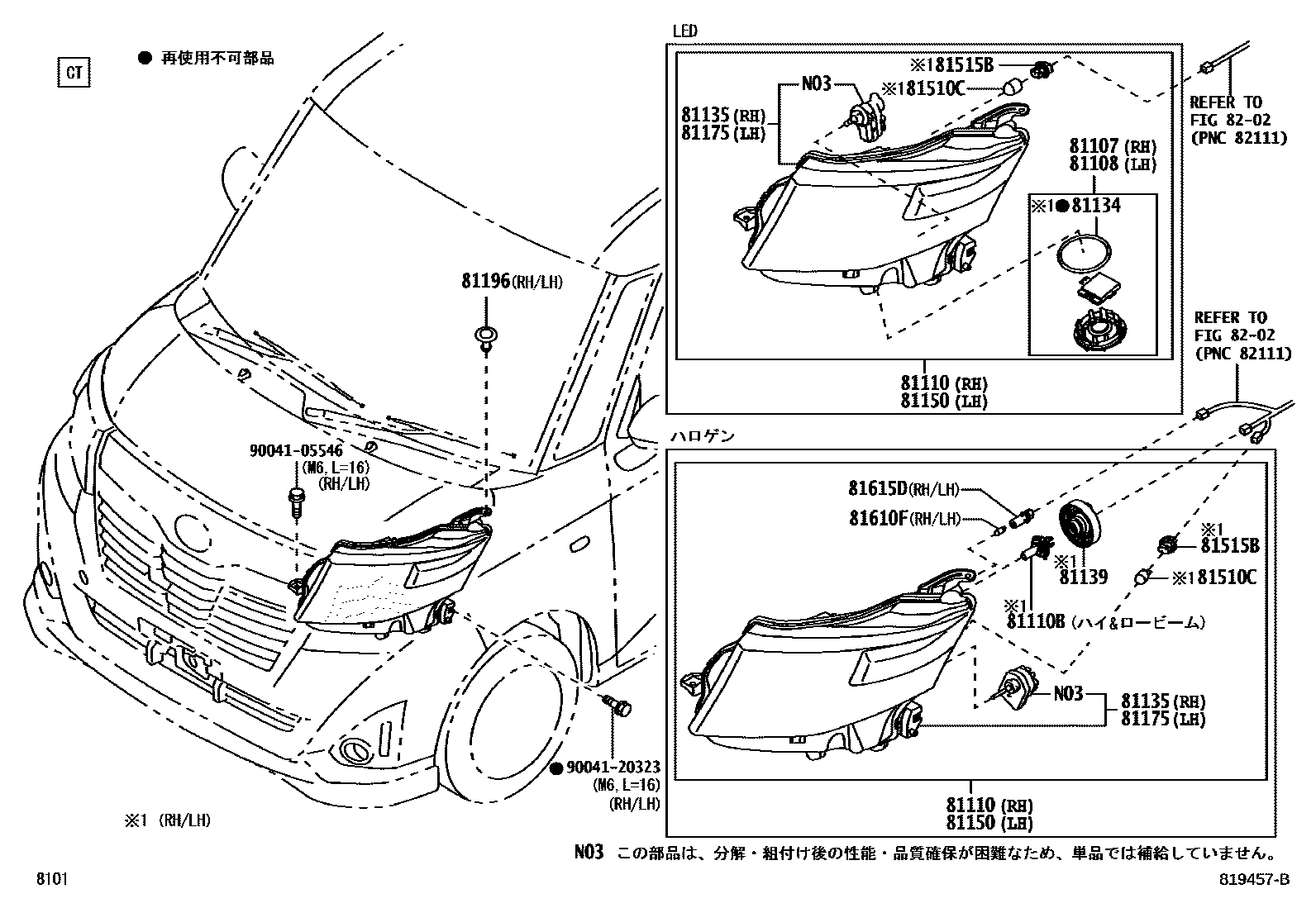

HEADLAMP

0001 1 0002 1 0003 1 0004 1

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main85967-B1010iM900,910..CTMG; M900,910..ROOMY..G; M900,910..TANK..G201611-202009

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main85967-B1010iM900,910..CTMG; M900,910..ROOMY..G; M900,910..TANK..G201611-202009

81110HEADLAMP ASSY, RH

main81110-B1570iM900,910..ROOMY..(G,X)201611-202009

main81110-B1580iM900,910..ROOMY..CTMG; M900,910..ROOMY..G201611-202009

main81110-B1590iM900,910..TANK..(G,X)201611-202009

main81110-B1600iM900,910..TANK..CTMG; M900,910..TANK..G201611-202009

main81110-B1640supersedes 81110-B1590iM900,910..G; M900,910..X202009

main81110-B1650iM900,910..CTMG202009

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51088×2iM900,910..ROOMY..(G,X)201611-202009

main90049-51187×2iM900,910..TANK..(G,X)201611-202009

main00000-00000supersedes 90049-51187iM900,910..X202009

mainGAITONASHI×2iM900,910..ROOMY..G; M900,910..TANK..G201611-202009

81134GASKET, HEADLAMP

main81134-B2070×2iM900,910..CTMG; M900,910..ROOMY..G; M900,910..TANK..G201611-202009

81135UNIT ASSY, HEADLAMP, RH

main81130-B1210iM900,910..ROOMY..(G,X)201611-202009

main81130-B1220iM900,910..ROOMY..CTMG; M900,910..ROOMY..G201611-202009

main81130-B1230iM900,910..TANK..(G,X)201611-202009

main81130-B1240iM900,910..TANK..CTMG; M900,910..TANK..G201611-202009

main00000-00000supersedes 81130-B1230iM900,910..X202009

81139COVER, HEADLAMP SOCKET

main81139-B2030×2iM900,910..G,X201611-202009

main00000-00000supersedes 81139-B2030iM900,910..X202009

mainGAITONASHI×2iM900,910..ROOMY..G; M900,910..TANK..G201611-202009

81150HEADLAMP ASSY, LH

main81150-B1530iM900,910..ROOMY..(G,X)201611-202009

main81150-B1540iM900,910..ROOMY..CTMG; M900,910..ROOMY..G201611-202009

main81150-B1550iM900,910..TANK..(G,X)201611-202009

main81150-B1560iM900,910..TANK..CTMG; M900,910..TANK..G201611-202009

main81150-B1640supersedes 81150-B1550iM900,910..G; M900,910..X202009

main81150-B1650iM900,910..CTMG202009

81175UNIT ASSY, HEADLAMP, LH

main81170-B1210iM900,910..ROOMY..(G,X)201611-202009

main81170-B1220iM900,910..ROOMY..CTMG; M900,910..ROOMY..G201611-202009

main81170-B1230iM900,910..TANK..(G,X)201611-202009

main81170-B1240iM900,910..TANK..CTMG; M900,910..TANK..G201611-202009

main00000-00000supersedes 81170-B1230iM900,910..X202009

81196RETAINER, HEADLAMP

main90044-68320×2iM900,910201611-201907

main90044-68378×2iM900,910201908-202009

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51143×2iM900,910201611-202009

main00000-00000supersedes 90049-51143iM900,910..X202009

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81945-B1010×2iM900,910201611-202009

main00000-00000supersedes 81945-B1010iM900,910..X202009

81610FBULB(FOR CLEARANCE LAMP)

main90049-51183×2iM900,910..G,X201611-202009

main00000-00000supersedes 90049-51183iM900,910..X202009

mainGAITONASHI×2iM900,910..ROOMY..G; M900,910..TANK..G201611-202009

81615DSOCKET, CLEARANCE LAMP

main81125-B4010×2iM900,910..G,X201611-202009

main00000-00000supersedes 81125-B4010iM900,910..X202009

mainGAITONASHI×2iM900,910..ROOMY..G; M900,910..TANK..G201611-202009

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105546

main90041-05546

9004120323

main90041-20323

17 parts on this diagram · 4 diagrams in section
