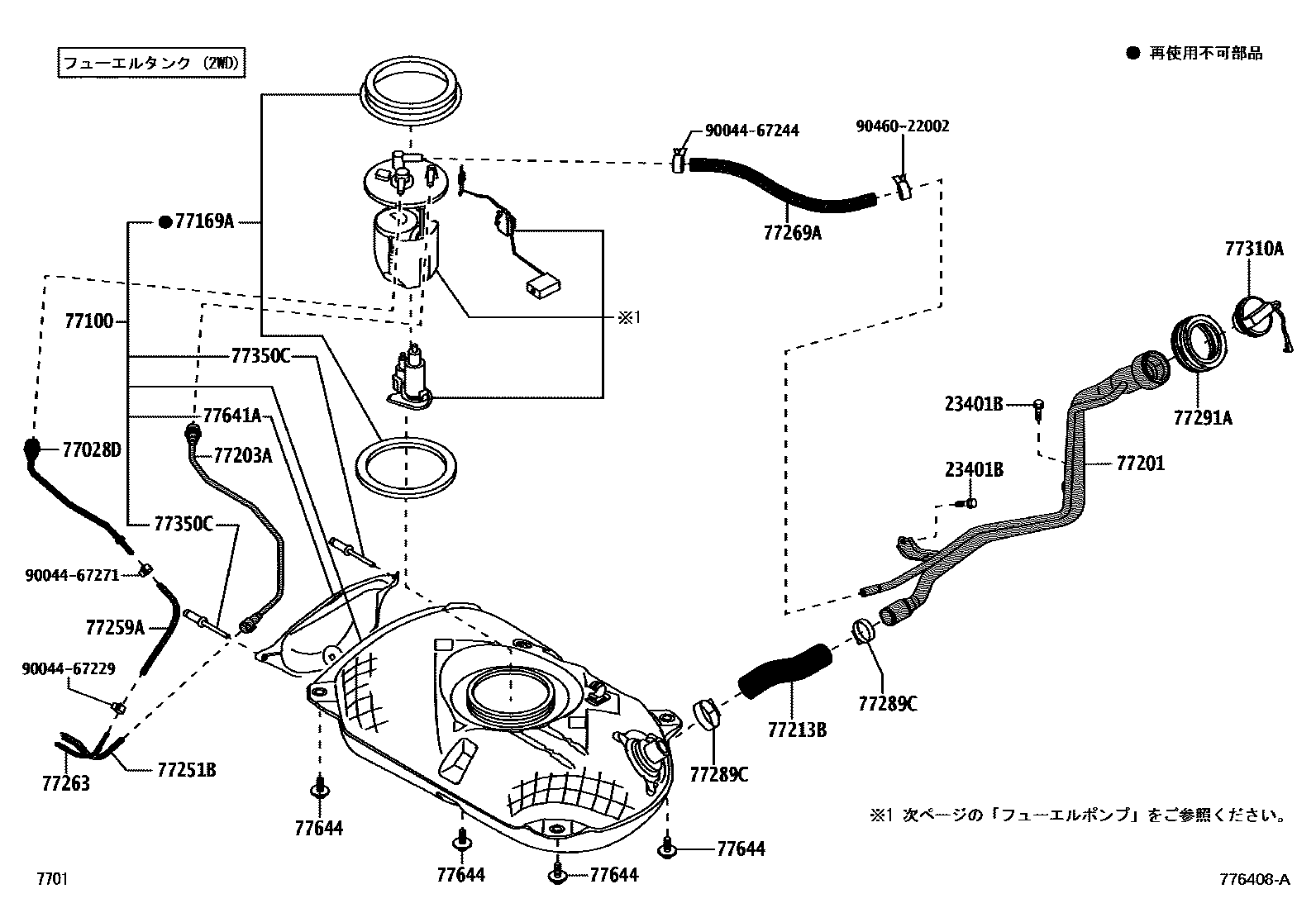

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

23401BBOLT

main21814-B1010i1KR#..M900; 1KRFE..M910201611-202009

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-B1010iM900201611-202009

77100TANK ASSY, FUEL

main77001-B1051iM910201611-202009

main77001-B1070iM900202009

77169AGASKET, FUEL SUCTION TUBE SET

main77169-B2030iM900201611-202009

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-B1200iM900201611-202009

main77201-B1210iM910201611-202009

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-B1020iM910202009

main77203-B1040iM900201611-202009

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B1020iM910201611-202009

main77213-B2110iM900202009

77251BTUBE, FUEL MAIN

main77251-B1110iM900,910202009

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-B2010iM910201611-202009

main77259-B2050iM900201611-202009

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-B1120iM900,910201611-202009

77269AHOSE, FUEL TANK BREATHER

main77269-B1020iM910201611-202009

main77269-B1040iM900202009

77289CCLAMP, FUEL TUBE, NO.4

main90044-60129×2iM900,910201611-202009

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-B2060iM900,910201611-202009

77310ACAP ASSY, FUEL TANK

main77300-52030iM900,910201611-202009

77350LID ASSY, FUEL FILLER OPENING

main77351-B1080iM900,910201611-202009

77350CRIVET

main77645-B2030×2iM900201611-202009

77641APROTECTOR, FUEL TANK, NO.1

main77641-B1020iM900201611-202009

77644BOLT, FUEL TANK

main90041-20292×4iM900,910201611-202009

9004467229

main90044-67229

9004467244

main90044-67244

9004467271

main90044-67271

9046022002

main90460-22002

22 parts on this diagram · 7 diagrams in section
