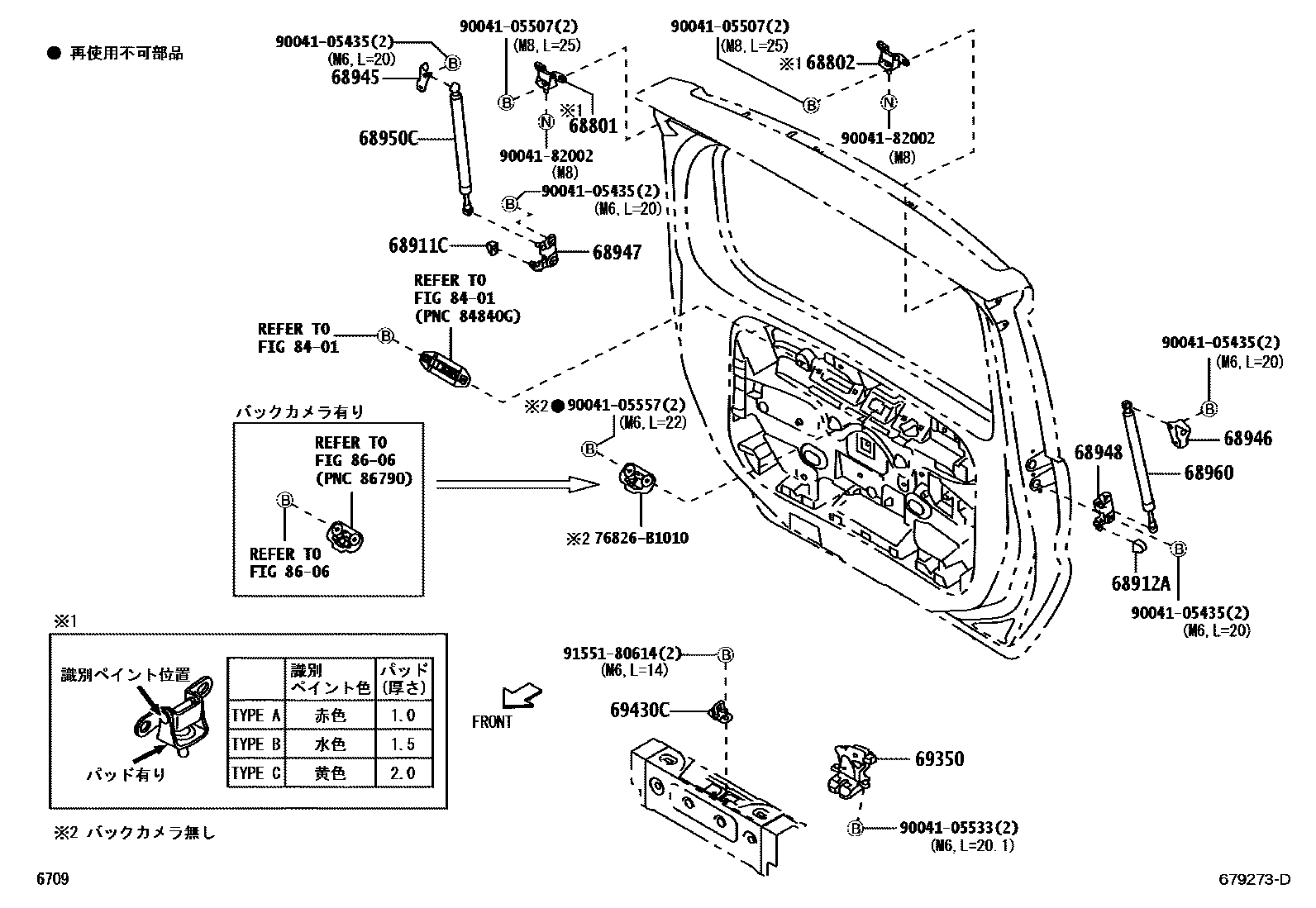

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-B1050iM900,910202009

main68801-B1060iM900,910201611-202009

main68801-B1070iM900,910202009

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-B1010iM900,910202009

main68802-B1020iM900,910202009

main68802-B1030iM900,910202009

68911CCOVER, BACK DOOR STAY, RH

main68911-B1010iM900,910201611-202009

68912ACOVER, BACK DOOR STAY, LH

main68911-B1010iM900,910202009

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-B1030iM900,910201611-202009

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-B1020iM900,910201611-202009

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-B1010iM900,910201611-202009

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-B1010iM900,910201611-202009

68950CSTAY ASSY, BACK DOOR, RH

main68950-B1210iM900,910..G,X201611-202009

main68950-B1220iM900,910..CTMG202009-202501

main68950-B1260iM900,910..G,X202412

68960STAY ASSY, BACK DOOR, LH

main68950-B1210iM900,910..G,X201611-202009

main68950-B1220iM900,910..CTMG201611-202009

main68950-B1260iM900,910..G,X202412

69350LOCK ASSY, BACK DOOR

main69350-B1090iM900,910201611-201701

main69350-B2400iM900,910201702-202009

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B2070iM900,910201611-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

76826B1010RETAINER, BACK DOOR GARNISH, NO.1

main76826-B1010

9004105435

main90041-05435

9004105507

main90041-05507

9004105533

main90041-05533

9004105557

main90041-05557

9004182002

main90041-82002

9155180614

main91551-80614

21 parts on this diagram · 2 diagrams in section
