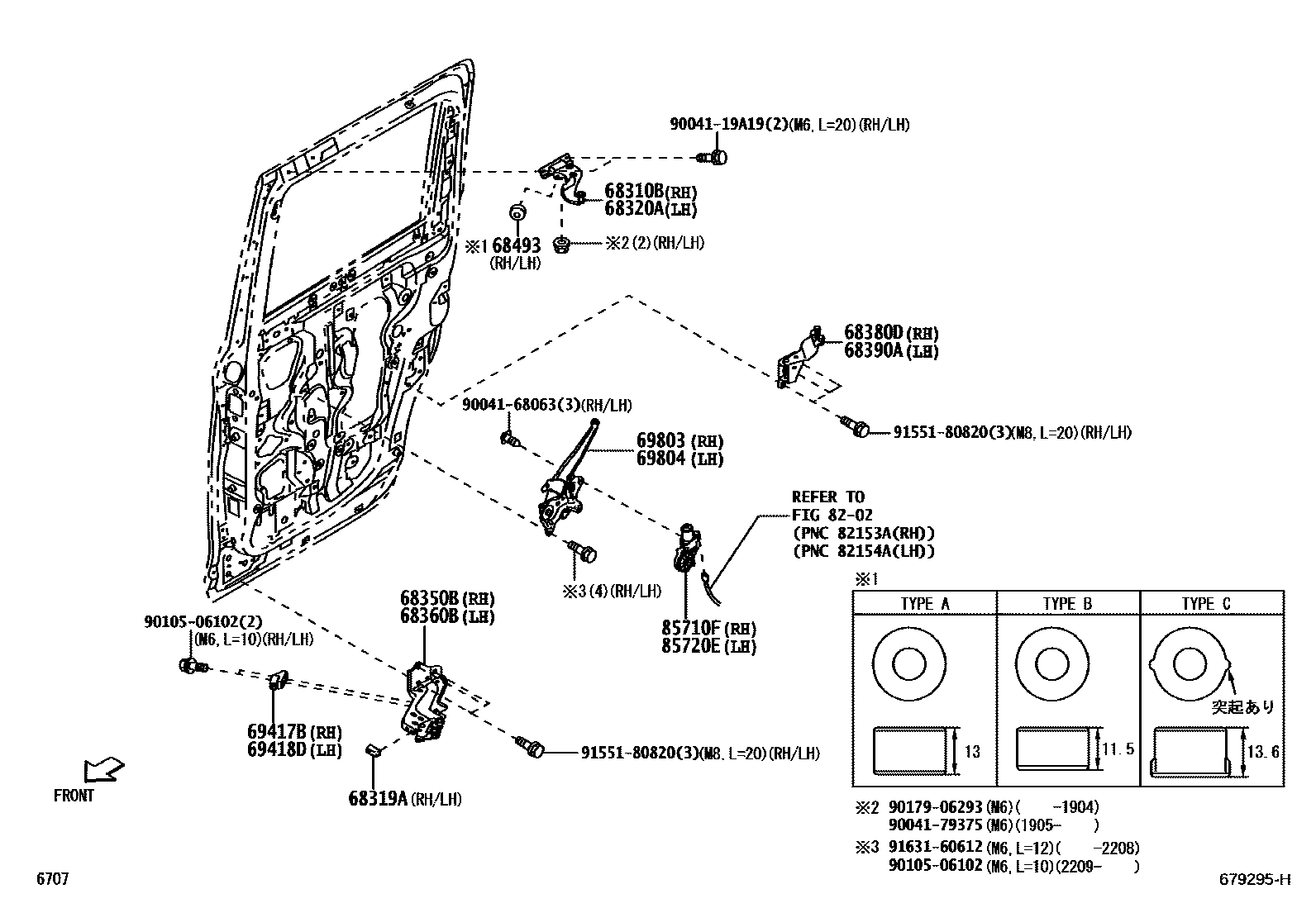

REAR DOOR WINDOW REGULATOR & HINGE

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-B1010iM900,910201611-202009

68319ASTOPPER, SLIDE DOOR LWR ROLLER

main68319-46011×2iM900,910201611-202009

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-B1010iM900,910201611-202009

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-B2010iM900,910201611-202009

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-B2030iM900,910201611-202009

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-B2011iM900,910201611-202009

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-B2061iM900,910201611-202009

68493CUSHION, FRONT SLIDE DOOR ARM GUARD

main68493-46010iM900,910202009

main68493-B2010×2iM900,910202009

main68493-B2070iM900,910201611-201907

main68493-B2120iM900,910201907-202009

69417BSTOPPER, SLIDE DOOR DOWN MALE, LOWER RH

main69417-B1010iM900,910201611-201803

main69417-B1011iM900,910201804-202009

69418DSTOPPER, SLIDE DOOR DOWN MALE, LOWER LH

main69418-B1010iM900,910201611-201803

main69418-B1011iM900,910202009

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-B1070iM900,910201611-201911

main69803-B1080iM900,910201912-202009

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-B1020iM900,910201611-201911

main69804-B1030iM900,910201912-202009

8202WIRING & CLAMP

→ Go to FIG 82-02

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-B2110iM900,910201611-202009

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-B2160iM900,910201611-202009

9004119A19

main90041-19A19

9004168063

main90041-68063

9004179375

main90041-79375

9010506102

main90105-06102

9017906293

main90179-06293

9155180820

main91551-80820

9163160612

main91631-60612

22 parts on this diagram · 1 diagram in section
