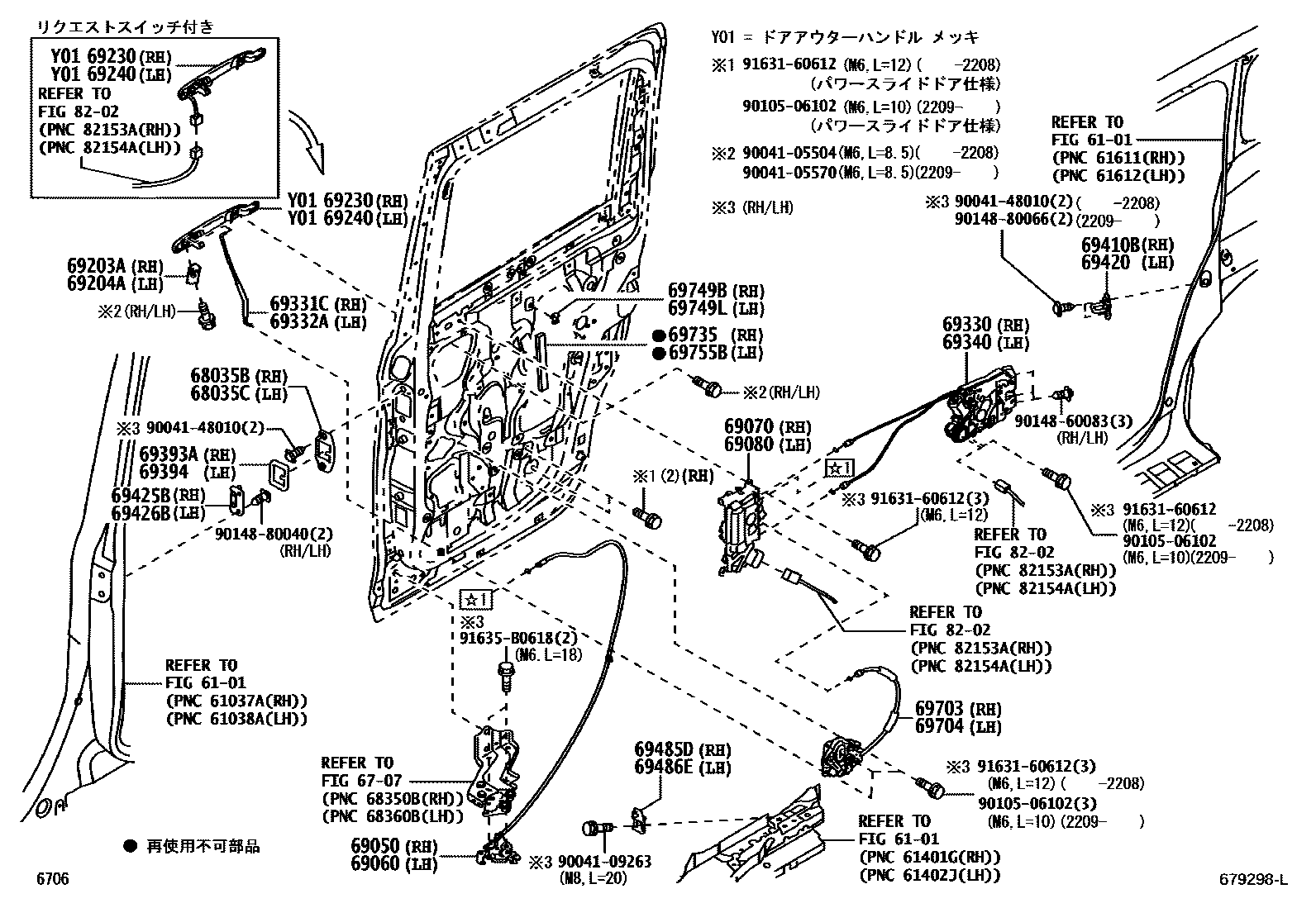

REAR DOOR LOCK & HANDLE

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

68035BBRACKET SUB-ASSY, SLIDE DOOR CATCH, RH

main68035-B2020iM900,910201611-201706

main68035-B2040iM900,910202009

68035CBRACKET SUB-ASSY, SLIDE DOOR CATCH, LH

main68035-B2020iM900,910201611-201706

main68035-B2040iM900,910202009

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-B2040iM900,910201611-201803

main69050-B2041iM900,910202009-202205

main69050-B2042iM900,910202206

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-B2040iM900,910201611-201803

main69060-B2041iM900,910202009-202205

main69060-B2042iM900,910202206

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-B2080-C0iM900,910..X201611-201612

main69070-B2081-C0iM900,910..X202009

main69070-B2090-C0iM900,910..CTMG,G201611-201612

main69070-B2091-C0iM900,910..CTMG; M900,910..G202009

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-B2170-C0iM900,910201611-201612

main69080-B2171-C0iM900,910201612-202009

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-B2040iM900,910202009

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69203-B2040iM900,910201611-202009

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-B1010-B0iM900,910..ROOMY..CTMG; M900,910..ROOMY..G; M900,910..TANK..CTMG; M900,910..TANK..G201611-202009

main69230-B2120-B0iM900,910..ROOMY..X; M900,910..TANK..X201611-202009

main69230-B1030iM900,910..G202009

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-B1010-B0iM900,910..ROOMY..(G,X); M900,910..ROOMY..CTMG; M900,910..TANK..(G,X); M900,910..TANK..CTMG201611-202009

main69240-B1020iM900,910..G202009

69330LOCK ASSY, REAR DOOR, RH

main69200-B1010iM900,910..X202009

main69200-B2050iM900,910..CTMG,G202009

69331CROD, REAR DOOR LOCK OPEN, RH

main69331-B1020iM900,910201611-202009

69332AROD, REAR DOOR LOCK OPEN, LH

main69332-B1020iM900,910201611-202009

69340LOCK ASSY, REAR DOOR, LH

main69300-B2050iM900,910202009

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69482-B2010iM900,910201611-201901

main69482-B2011iM900,910201902-202009

69394COVER, REAR DOOR LOCK, OUTER LH

main69482-B2010iM900,910201611-201901

main69482-B2011iM900,910201902-202009

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69470-B2010iM900,910201611-202009

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69470-B2010iM900,910201611-202009

69425BPLATE, DOOR LOCK STRIKER AUXILIARY, RH(FOR REAR DOOR)

main69420-B2020iM900,910202009

69426BPLATE, DOOR LOCK STRIKER AUXILIARY, LH(FOR REAR DOOR)

main69420-B2020iM900,910202009

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-46010iM900,910201611-201809

main69485-B1010iM900,910201810-202009

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-46020iM900,910201611-201809

main69486-B1010iM900,910201810-202009

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69707-B2040iM900,910202009

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69708-B2020iM900,910202009

69735SILENCER, REAR DOOR LOCK LINK

main69759-B2030iM900,910202009

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iM900,910202009

69749LCLAMP, REAR DOOR LOCK LINK, NO.2

main69749-32040iM900,910202009

69755BSILENCER, REAR DOOR LOCK LINK

main69759-B2030iM900,910201611-202009

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105504

main90041-05504

9004105570

main90041-05570

9004109263

main90041-09263

9004148010

main90041-48010

9010506102

main90105-06102

9014860083

main90148-60083

9014880040

main90148-80040

9014880066

main90148-80066

9163160612

main91631-60612

91635B0618

main91635-B0618

41 parts on this diagram · 2 diagrams in section
