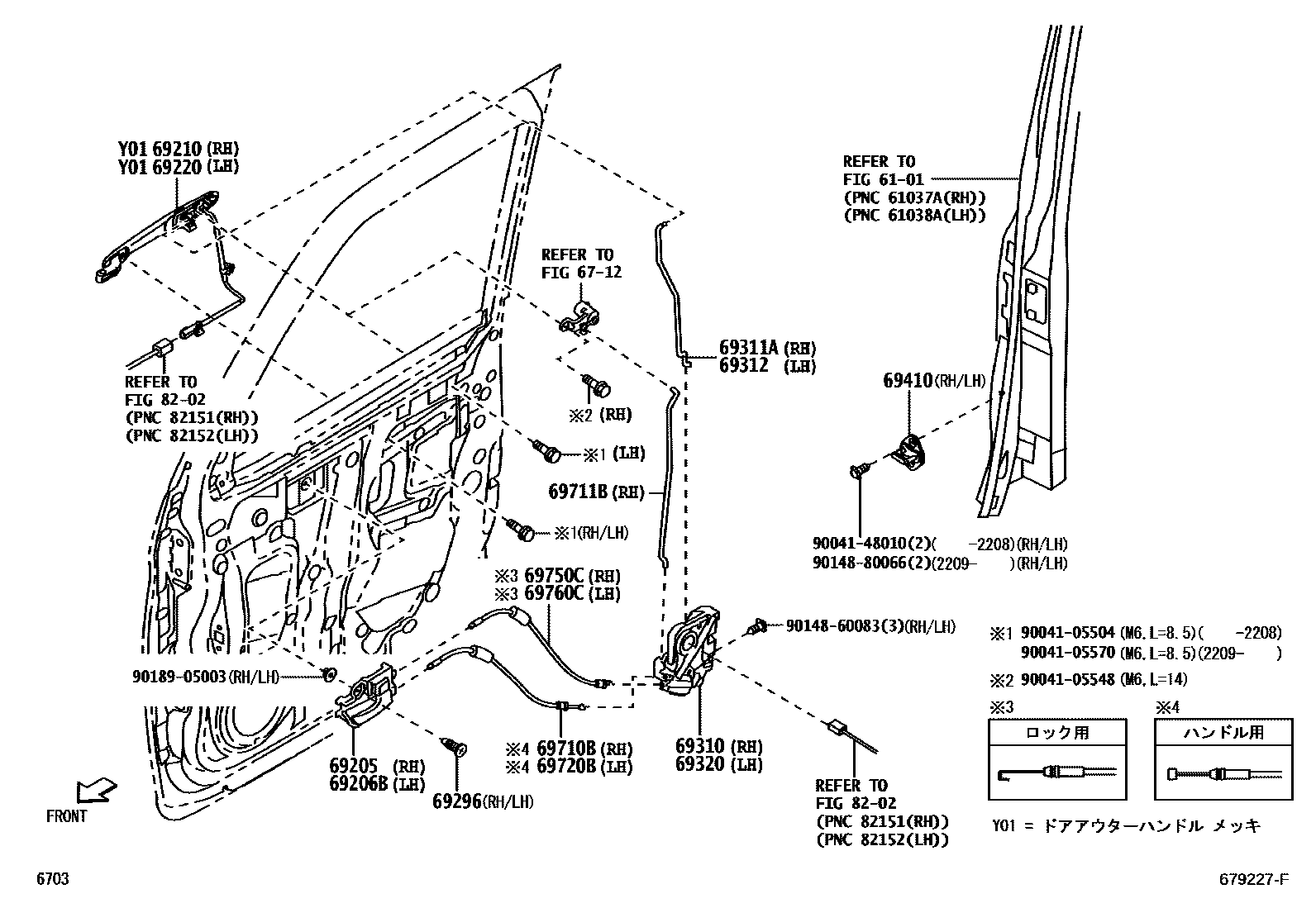

FRONT DOOR LOCK & HANDLE

6101SIDE MEMBER

→ Go to FIG 61-01

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-B1020-C0iM900,910..G,X201611-202009

BLACK,TRIM1#

main69270-B1030-C0iM900,910..CTMG; M900,910..G202009

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-B1020-C0iM900,910..G,X202009

BLACK,TRIM4#

main69280-B1030-C0iM900,910..CTMG; M900,910..G202009

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-B1090-B0iM900,910..ROOMY..(G,X); M900,910..ROOMY..CTMG; M900,910..TANK..(G,X); M900,910..TANK..CTMG201611-202009

main69210-B1160iM900,910..G202009

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-B1060-B0iM900,910..ROOMY..(G,X); M900,910..ROOMY..CTMG; M900,910..TANK..(G,X); M900,910..TANK..CTMG201611-202009

main69220-B1040iM900,910..G202009

69296SCREW, DOOR INSIDE HANDLE

main90041-64030×2iM900,910202009-202208

main90164-50032×2iM900,910202209

69310LOCK ASSY, FRONT DOOR, RH

main69310-B1042iM900,910201611-201808

main69310-B1043iM900,910201809-202009

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-B1060iM900,910201611-202009

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-B1060iM900,910201611-202009

69320LOCK ASSY, FRONT DOOR, LH

main69320-B1032iM900,910201611-201808

main69320-B1033iM900,910201809-202009

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iM900,910202209

main69410-B2020×2iM900,910201611-202009

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-B1060iM900,910201611-202009

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-B1020iM900,910201611-202009

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-B1060iM900,910201611-202009

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-B1060iM900,910201611-202009

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-B1060iM900,910201611-202009

8202WIRING & CLAMP

→ Go to FIG 82-02

9004105504

main90041-05504

9004105548

main90041-05548

9004105570

main90041-05570

9004148010

main90041-48010

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

25 parts on this diagram · 1 diagram in section
