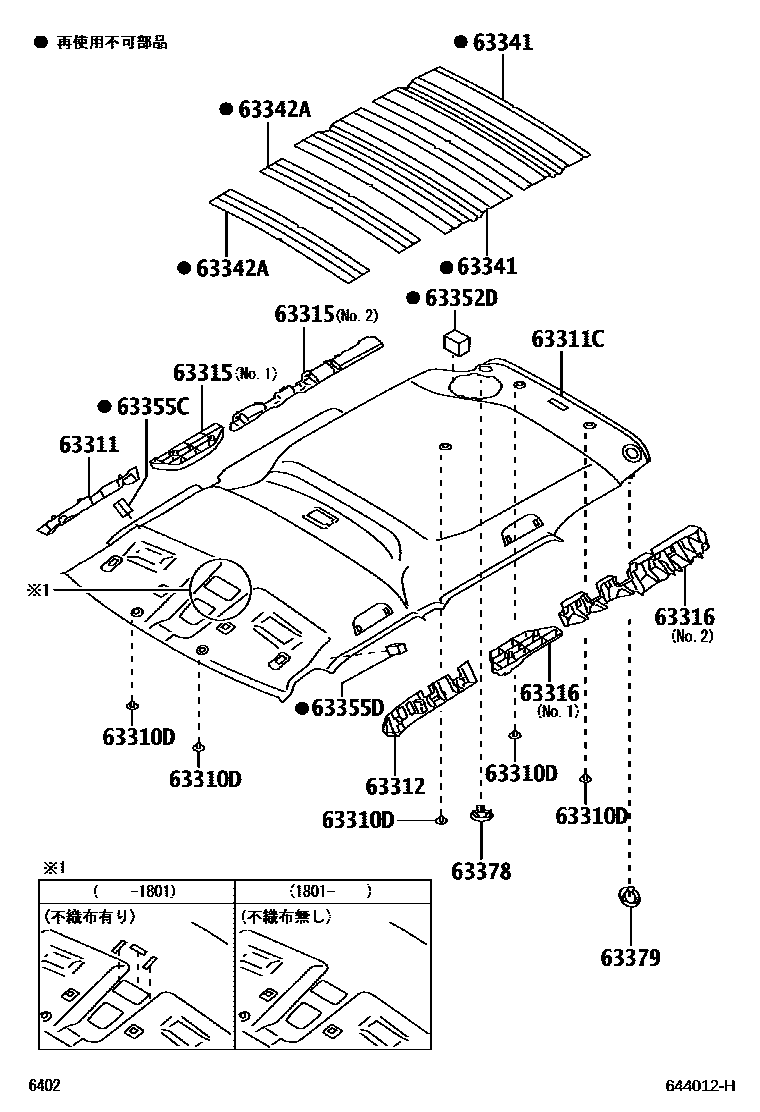

ROOF HEADLINING & SILENCER PAD

63310DCLIP, ROOF HEADLINING

main90044-67467-B2×5iM900,910..CTMG; M900,910..G,X202009

LT.GRAY,TRIM2#; LT.GRAY,TRIM4#

63311GARNISH, ROOF HEADLINING, FRONT RH

main00000-00000supersedes 63691-B1060iM900,910202009

main63691-B1060iM900,910201611-202009

mainGAITONASHIsupersedes 63691-B1060iM900,910201611-202009

63311CHEADLINING, ROOF

main63311-B1040-B0supersedes 63311-B1031-B0iM900,910201611-201801

main63311-B1041-B0supersedes 63311-B1031-B0iM900,910..CTMG; M900,910..G,X202009

63312GARNISH, ROOF HEADLINING, FRONT LH

main00000-00000supersedes 63692-B1060iM900,910202009

main63692-B1060iM900,910201611-202009

mainGAITONASHIsupersedes 63692-B1060iM900,910201611-202009

63315GARNISH, ROOF HEADLINING, REAR RH

main00000-00000supersedes 63693-B1070iM900,910202009

main63693-B1060supersedes 63693-B1070iM900,910202009

mainGAITONASHIsupersedes 63693-B1070iM900,910201611-202009

63316GARNISH, ROOF HEADLINING, REAR LH

main00000-00000supersedes 63694-B1070iM900,910202009

main63694-B1060supersedes 63694-B1070iM900,910201611-202009

mainGAITONASHIsupersedes 63694-B1070iM900,910201611-202009

63341PAD, ROOF SILENCER, NO.1

main63341-87107×2iM900,910201611-202009

63342ASILENCER, ROOF, NO.2

main63342-B4010×2iM900,910201611-202009

63352DPAD, ROOF HEADLINING, NO.2

main63355-B1010iM900,910201611-202009

63355CPAD, ROOF HEADLINING, RH

main63355-B1020iM900,910201701-202009

63355DPAD, ROOF HEADLINING, LH

main63355-B1020iM900,910201701-202009

63378COVER, ROOF HEADLINING REAR TRIM, RH

main63378-B2010-B0iM900,910201611-202009

LT.GRAY,TRIM1#

63379COVER, ROOF HEADLINING REAR TRIM, LH

main63378-B2010-B0iM900,910201611-202009

LT.GRAY,TRIM1#

13 parts on this diagram · 1 diagram in section
