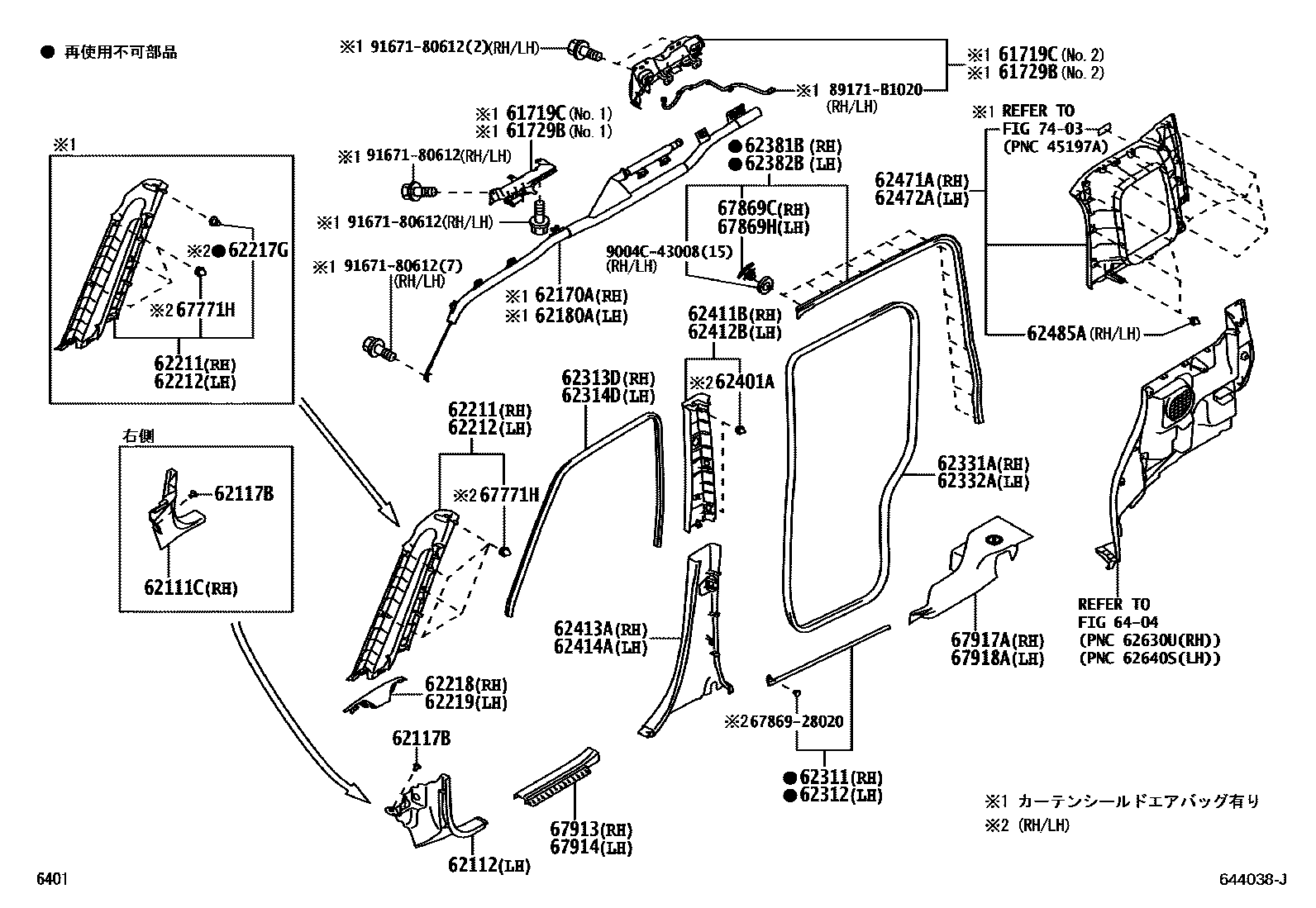

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-B1090iM900,910202009

main61719-B1100iM900,910201611-202009

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-B1090iM900,910202009

main61729-B1100iM900,910202009

62111CBOARD, COWL SIDE TRIM, RH

main62111-B1090-C0iM900,910..CTMG; M900,910..G,X202009

BLACK,TRIM2#; BLACK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-B1110-C0iM900,910..CTMG; M900,910..G,X202009

BLACK,TRIM2#; BLACK,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90044-67397×2iM900,910202009

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-B1060iM900,910201611-202009

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-B1060iM900,910201611-202009

62211GARNISH, FRONT PILLAR, RH

main62210-B1040-B0supersedes 62210-B1050-B0iM900,910..CTMG; M900,910..G,X202009

62212GARNISH, FRONT PILLAR, LH

main62220-B1060-B0supersedes 62220-B1070-B0iM900,910..CTMG; M900,910..G,X202009

62217GCLIP, FRONT PILLAR GARNISH

main62217-20010×2iM900,910201611-202009

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-B1010-C0iM900,910201611-202009

BLACK,TRIM1#

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-B1010-C0iM900,910..CTMG; M900,910..G,X202009

BLACK,TRIM2#; BLACK,TRIM4#

62311WEATHERSTRIP, DOOR OPENING TRIM, LOWER RH

main67873-B1010iM900,910202009

62312WEATHERSTRIP, DOOR OPENING TRIM, LOWER LH

main67874-B1010iM900,910201611-202009

62313DTRIM, FRONT DOOR OPENING, RH

main62313-B1030iM900,910201611-202009

62314DTRIM, FRONT DOOR OPENING, LH

main62314-B1030iM900,910201611-202009

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-B1010iM900,910202009

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-B1010iM900,910201611-202009

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-B1010iM900,910202009

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-B1010iM900,910201611-202009

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main67771-B2010×4iM900,910202009

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-B1100-B0iM900,910..CTMG; M900,910..G,X202009

LT.GRAY,TRIM2#; LT.GRAY,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-B1100-B0iM900,910..CTMG; M900,910..G,X202009

LT.GRAY,TRIM2#; LT.GRAY,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-B1060-C0iM900,910201611-202009

BLACK,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-B1060-C0iM900,910201611-202009

BLACK,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-B1280-B0supersedes 62471-B1270-B0iM900,910..CTMG; M900,910..G,X202009

62472AGARNISH, ROOF SIDE, INNER LH

main62472-B1280-B0supersedes 62472-B1270-B0iM900,910..CTMG; M900,910..G,X202009

62485ARETAINER, ROOF SIDE INNER GARNISH

main67771-B2010×20iM900,910201611-202009

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67771HRETAINER, DOOR TRIM

main67771-B2010×6iM900,910201611-202009

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67868-97206×15iM900,910201611-202009

67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67868-97206×15iM900,910201611-202009

67913PLATE, FRONT DOOR SCUFF, RH

main67913-B1060-C0iM900,910201611-202009

BLACK,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-B1050-C0iM900,910201611-202009

BLACK,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-B1060-C0iM900,910201611-202009

BLACK,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-B1060-C0iM900,910201611-202009

BLACK,TRIM1#

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

6786928020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-28020

89171B1020

main89171-B1020

9004C43008

main9004C-43008

9167180612

main91671-80612

41 parts on this diagram · 1 diagram in section
