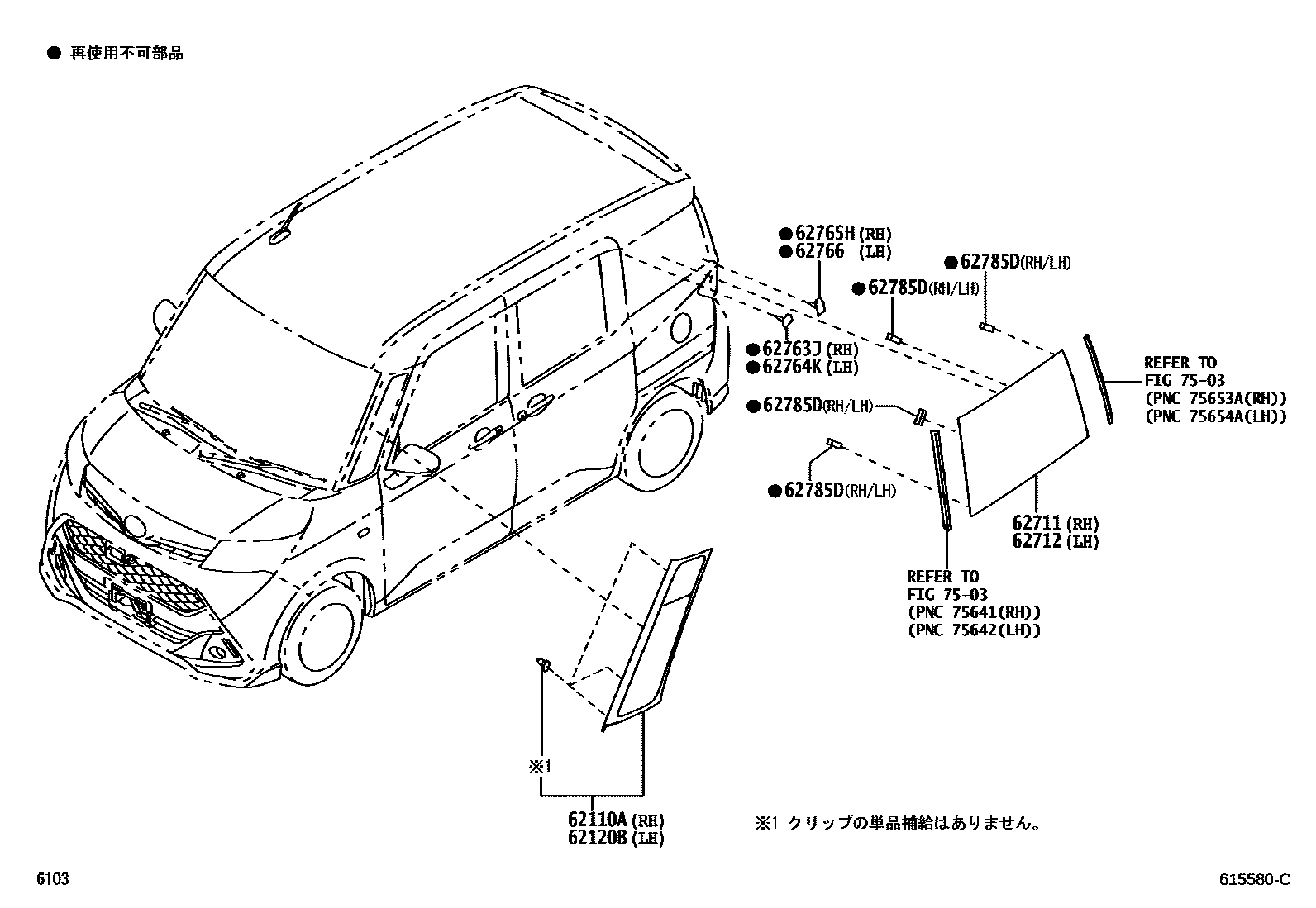

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-B1020supersedes 62110-B1010iM900,910..CTMG,G; M900,910..X201611-202009

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-B1020supersedes 62120-B1010iM900,910..CTMG,G; M900,910..X202009

62711GLASS, QUARTER WINDOW, RH

main62711-B1030iM900,910201611-202009

62712GLASS, QUARTER WINDOW, LH

main62712-B1030iM900,910201611-202009

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-B1010iM900,910201611-202009

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-B1010iM900,910201611-202009

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-B1010iM900,910201611-202009

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-B1010iM900,910201611-202009

62785DSPACER, QUARTER WINDOW GLASS

main62785-B2030×8iM900,910201611-202009

7503SIDE MOULDING

→ Go to FIG 75-03

10 parts on this diagram · 1 diagram in section
