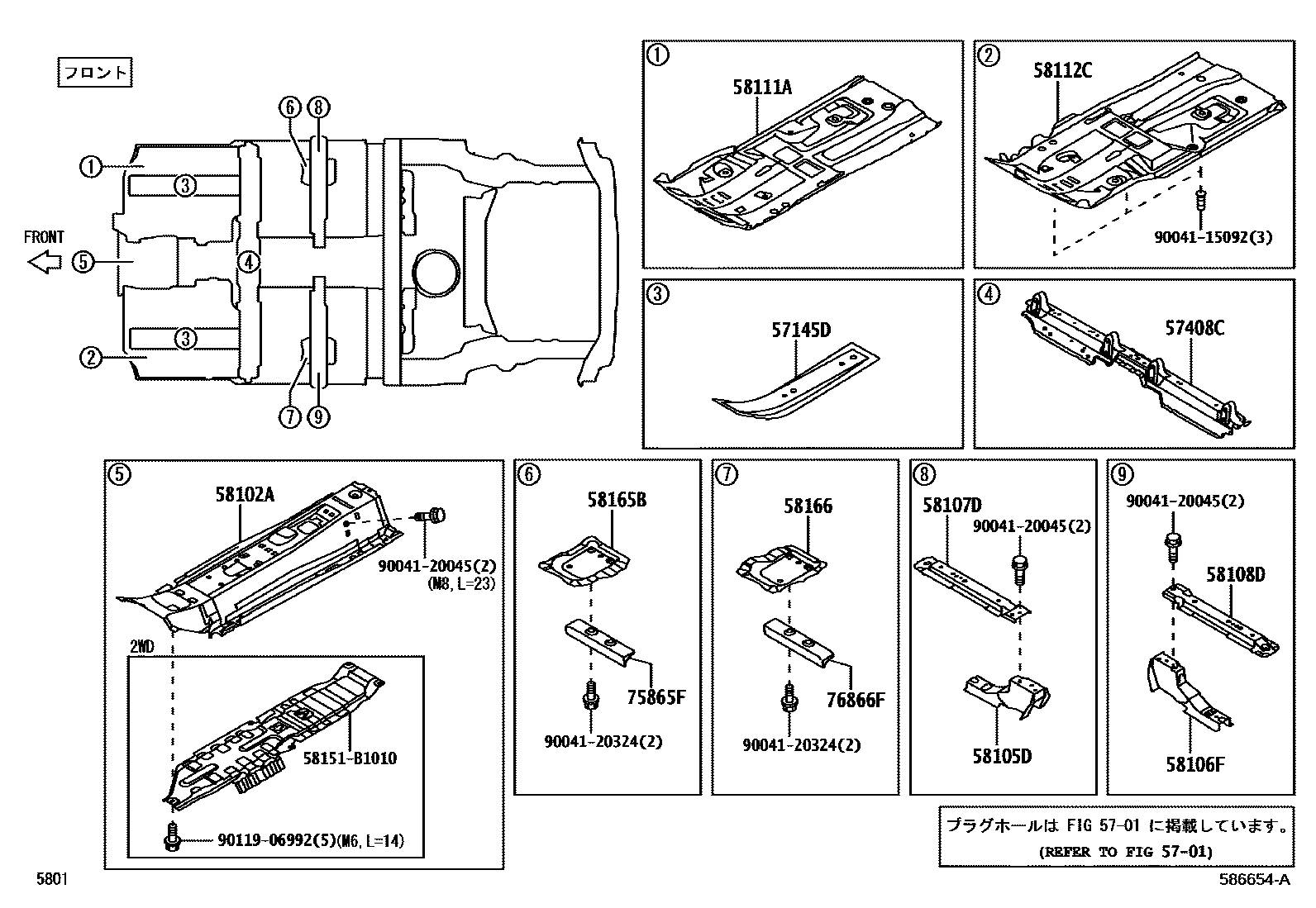

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5701HOLE PLUG

→ Go to FIG 57-01

57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN

main57145-B1010×2iM900,910201611-202009

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57051-B1060iM900,910202009

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-B1560iM900201611-202009

main58102-B1570iM910..G,X202009

main58102-B1580iM900..CTMG; M900..G202009

main58102-B1590iM910..CTMG; M910..G202009

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-B1010iM900,910201611-202009

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-B1010iM900,910201611-202009

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-B1060iM900,910201611-202009

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58107-B1060iM900,910201611-202009

58111APAN, FRONT FLOOR, RH

main58111-B1020iM900,910201611-202009

58112CPAN, FRONT FLOOR, LH

main58112-B1040iM900,910201611-202009

58165BCOVER, FRONT FLOOR, RH

main58165-B1010iM900,910201611-202009

58166COVER, FRONT FLOOR, LH

main58166-B1010iM900,910201611-202009

75865FPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75865-B2010iM900,910201611-202009

76866FPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-B2010iM900,910201611-202009

58151B1010INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-B1010

9004115092

main90041-15092

9004120045

main90041-20045

9004120324

main90041-20324

9011906992

main90119-06992
