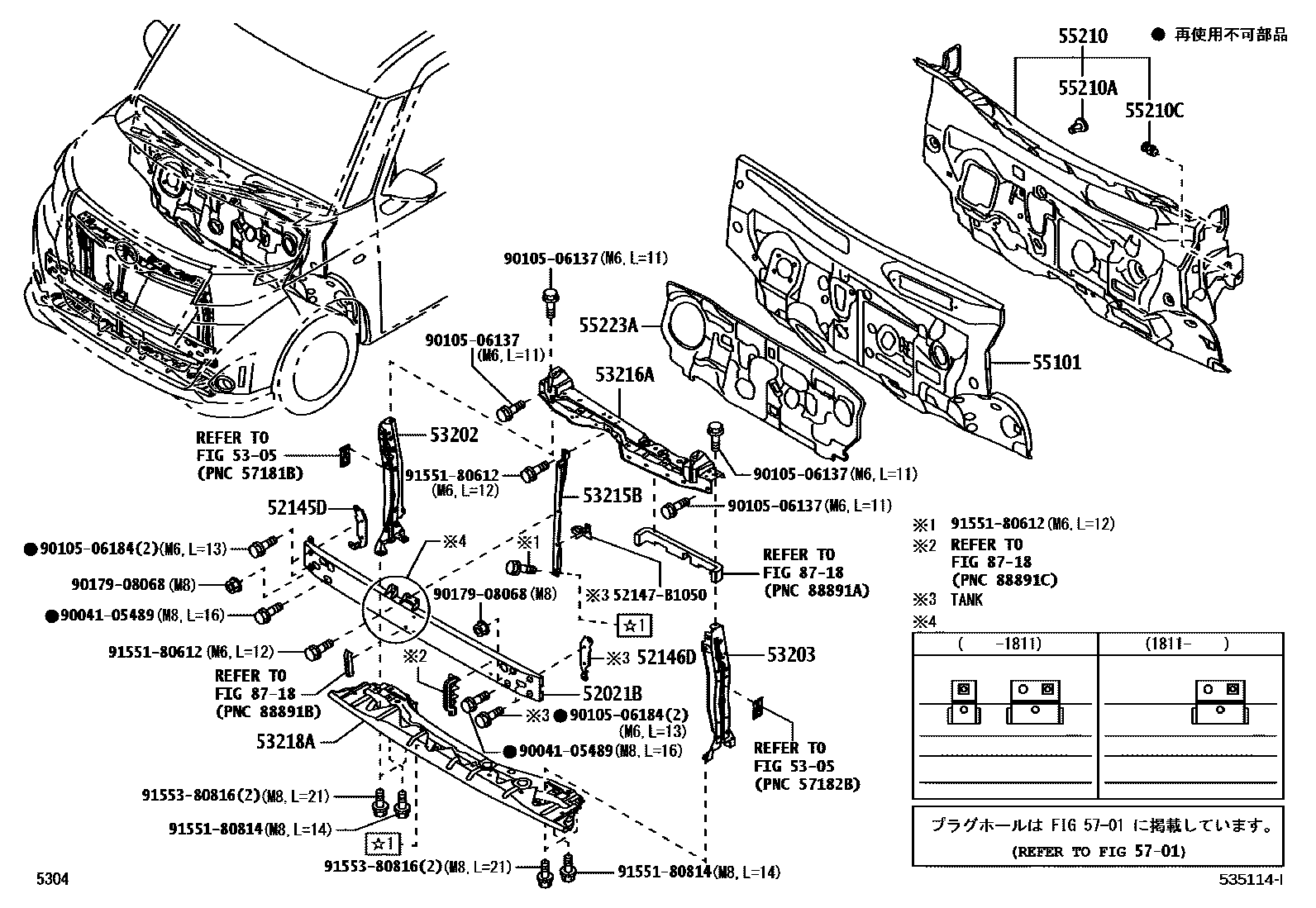

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-B1120iM900,910201611-201811

main52021-B1130iM900,910201811-202009

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52147-B1040iM900,910201611-202009

main52147-B1060iM900,910202009

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52148-B1050iM900,910..TANK201611-202009

main52148-B1060iM900,910202009

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B1050iM900,910201611-202009

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B1040iM900,910201611-202009

53215BSUPPORT, HOOD LOCK

main53215-B1070iM900,910201611-202009

53216ASUPPORT, RADIATOR, UPPER

main53205-B1020iM900,910201611-202009

main53205-B1060iM900,910202009

53218ASUPPORT, RADIATOR, LOWER

main53028-B1080iM900,910201611-202009

55101PANEL SUB-ASSY, DASH

main55101-B1180iM900,910201611-202009

55210INSULATOR ASSY, DASH PANEL

main55210-B1120iM900,910201611-202009

55210ACLIP

main90467-11122×5iM900,910201611-202009

55210CCLIP

main90467-13079×4iM900,910201611-202009

55223AINSULATOR, DASH PANEL, OUTER

main55223-B1080iM900,910201611-202009

5701HOLE PLUG

→ Go to FIG 57-01

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

52147B1050SUPPORT, FRONT BUMPER, RH

main52147-B1050

9004105489

main90041-05489

9010506137

main90105-06137

9010506184

main90105-06184

9017908068

main90179-08068

9155180612

main91551-80612

9155180814

main91551-80814

9155380816

main91553-80816

24 parts on this diagram · 3 diagrams in section
