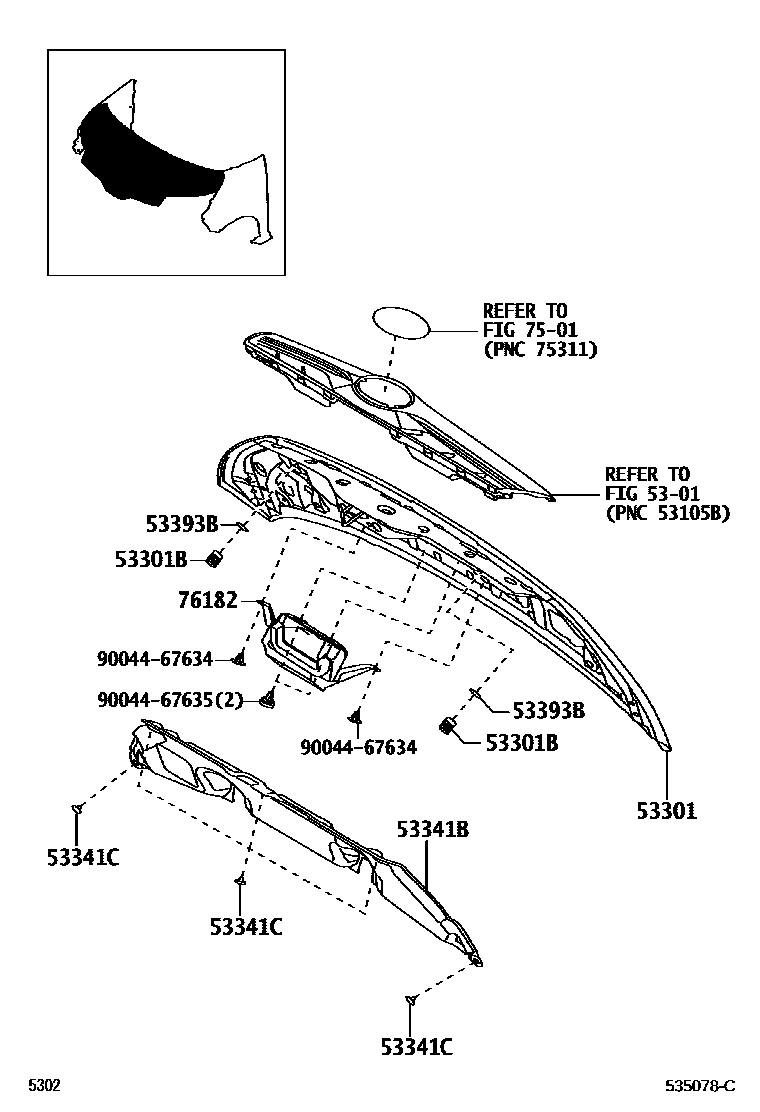

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1

5301RADIATOR GRILLE

→ Go to FIG 53-01

53301HOOD SUB-ASSY

main53301-B1140iM900,910201611-202009

53301BCUSHION, HOOD BUMPER

main90045-41262×2iM900,910201611-202009

53341BINSULATOR, HOOD

main53341-B1080iM900,910201611-202009

53341CCLIP(FOR HOOD INSULATOR)

main90044-67634×5iM900,910201611-202009

53393BPROTECTOR, HOOD, FRONT

main53393-52010×2iM900,910201611-202009

main53393-B1020×2iM900,910202312

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76182GUIDE, HOOD AIR INTAKE

main17941-B1010iM900,910201611-202009

9004467634

main90044-67634

9004467635

main90044-67635

10 parts on this diagram · 4 diagrams in section
