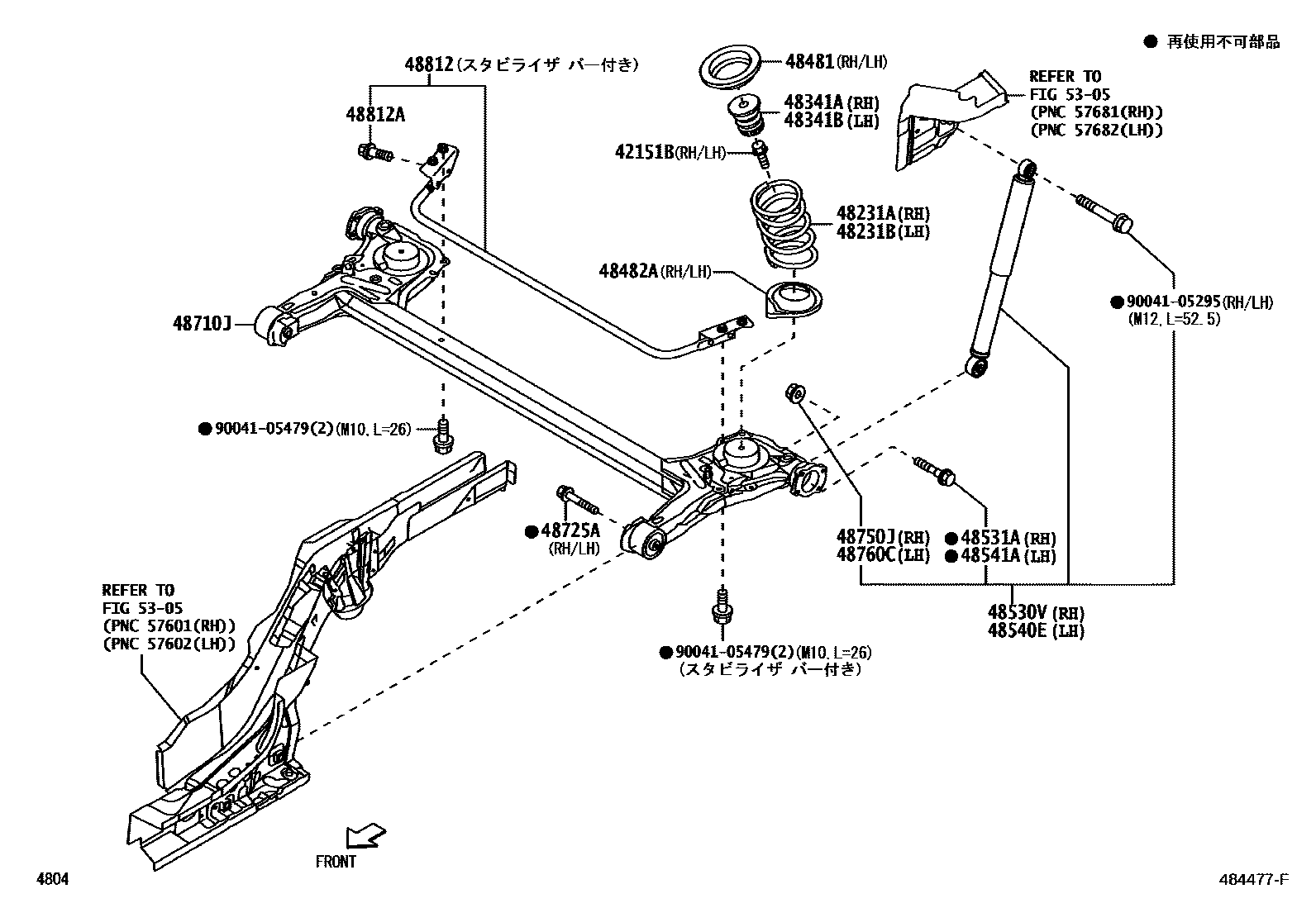

REAR SPRING & SHOCK ABSORBER

0001 12WD 0002 14WD

42151BBOLT, HEXAGON (FOR REAR SPRING SEAT BOLT)

main91551-00820iM900,910201611-202209

main91551-80816iM900,910202209

48231ASPRING, COIL, REAR RH

main48231-B1270iM900201611-202009

main48231-B1280iM910201611-202009

48231BSPRING, COIL, REAR LH

main48231-B1270iM900201611-202009

main48231-B1280iM910201611-202009

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-B1010iM900201611-202009

main48341-B1020iM910201611-202009

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-B1010iM900201611-202009

main48341-B1020iM910201611-202009

48481SEAT, REAR SPRING, UPPER

main48481-B2010iM900,910201611-202009

48482ASEAT, REAR SPRING, LOWER

main48482-B1040iM900201611-202212

sub48482-B1041

main48482-B1041iM900202301

main48482-B2020iM910201611-202009

48530VABSORBER SET, SHOCK, REAR RH

main48530-B9165iM900..NTBO201811-202101

main48530-B9166iM900..NTBO202101-202110

sub48530-B9167

main48530-B9167iM900..NTBO202110-202201

sub48530-B9168

main48530-B9168iM900..NTBO202201-202304

sub48530-B9169

main48530-B9169iM900..NTBO202304-202404

sub48530-B9355

main48530-B9170iM900..TBO201811-202110

sub48530-B9171

main48530-B9171iM900..TBO202110-202201

sub48530-B9172

main48530-B9172iM900..TBO202201-202304

sub48530-B9173

main48530-B9173iM900..TBO202304-202404

sub48530-B9174

main48530-B9174iM900..TBO202404

main48530-B9285iM900..NTBO201611-201811

main48530-B9290iM910201611-201811

main48530-B9295iM900..TBO201611-201811

main48530-B9300iM910201811-202110

sub48530-B9301

main48530-B9301iM910202110-202201

sub48530-B9302

main48530-B9302iM910202201-202404

sub48530-B9303

main48530-B9303iM910202404

main48530-B9355iM900..NTBO202404

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-19A05iM900,910201611-202009

48540EABSORBER SET, SHOCK, REAR LH

main48530-B9165iM900..NTBO201811-202101

main48530-B9166iM900..NTBO202101-202110

sub48530-B9167

main48530-B9167iM900..NTBO202110-202201

sub48530-B9168

main48530-B9168iM900..NTBO202201-202304

sub48530-B9169

main48530-B9169iM900..NTBO202304-202404

sub48530-B9355

main48530-B9170iM900..TBO201811-202110

sub48530-B9171

main48530-B9171iM900..TBO202110-202201

sub48530-B9172

main48530-B9172iM900..TBO202201-202304

sub48530-B9173

main48530-B9173iM900..TBO202304-202404

sub48530-B9174

main48530-B9174iM900..TBO202404

main48530-B9285iM900..NTBO201611-201811

main48530-B9290iM910201611-201811

main48530-B9295iM900..TBO201611-201811

main48530-B9300iM910201811-202110

sub48530-B9301

main48530-B9301iM910202110-202201

sub48530-B9302

main48530-B9302iM910202201-202404

sub48530-B9303

main48530-B9303iM910202404

main48530-B9355iM900..NTBO202404

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-19A05iM900,910201611-202009

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-B1080iM900201611-202009

48725ABOLT(FOR LOWER CONTROL ARM)

main48718-B2010iM900201611-202009

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90041-70260iM900,910201611-202009

main90041-70293iM900,910202009

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90041-70260iM900,910201611-202009

main90041-70293iM900,910202009

48812BAR, STABILIZER, REAR

main48083-B1020iM900..TBO201611-202009

48812ABOLT, STABILIZER REAR BAR

main91552-G1025iM900..TBO201611-202009

5305

9004105295

main90041-05295

9004105479

main90041-05479

20 parts on this diagram · 2 diagrams in section
