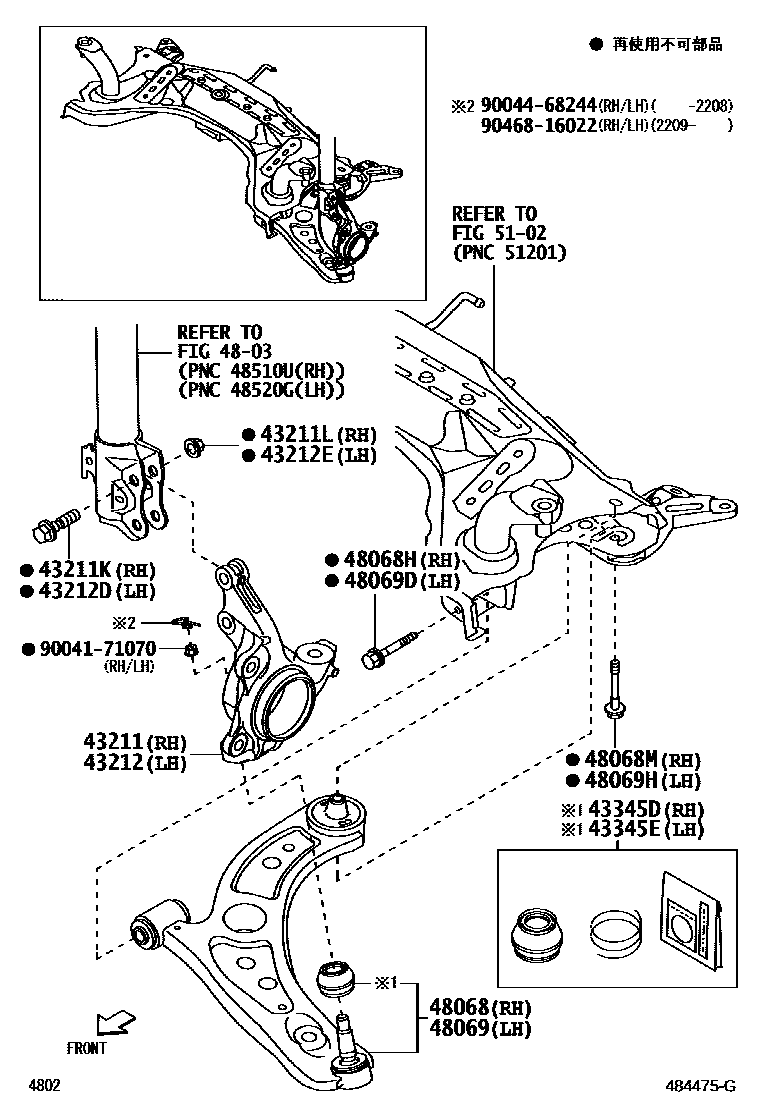

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B1060iM900,910201611-202009

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01701×2iM900,910201611-202009

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70393×2iM900,910201611-202009

43212KNUCKLE, STEERING, LH

main43212-B1060iM900,910201611-202009

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01701×2iM900,910201611-202009

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70393×2iM900,910201611-202009

43345DCOVER, LOWER BALL JOINT DUST, RH

main43345-B9020iM900,910201611-202009

43345ECOVER, LOWER BALL JOINT DUST, LH

main43345-B9020iM900,910201611-202009

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B1120iM900,910201611-202009

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-05296iM900,910201611-202009

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05482iM900,910201611-202009

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B1120iM900,910201611-202009

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-05296iM900,910201611-202009

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05482iM900,910201611-202009

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

9004171070

main90041-71070

9004468244

main90044-68244

9046816022

main90468-16022

19 parts on this diagram · 1 diagram in section
