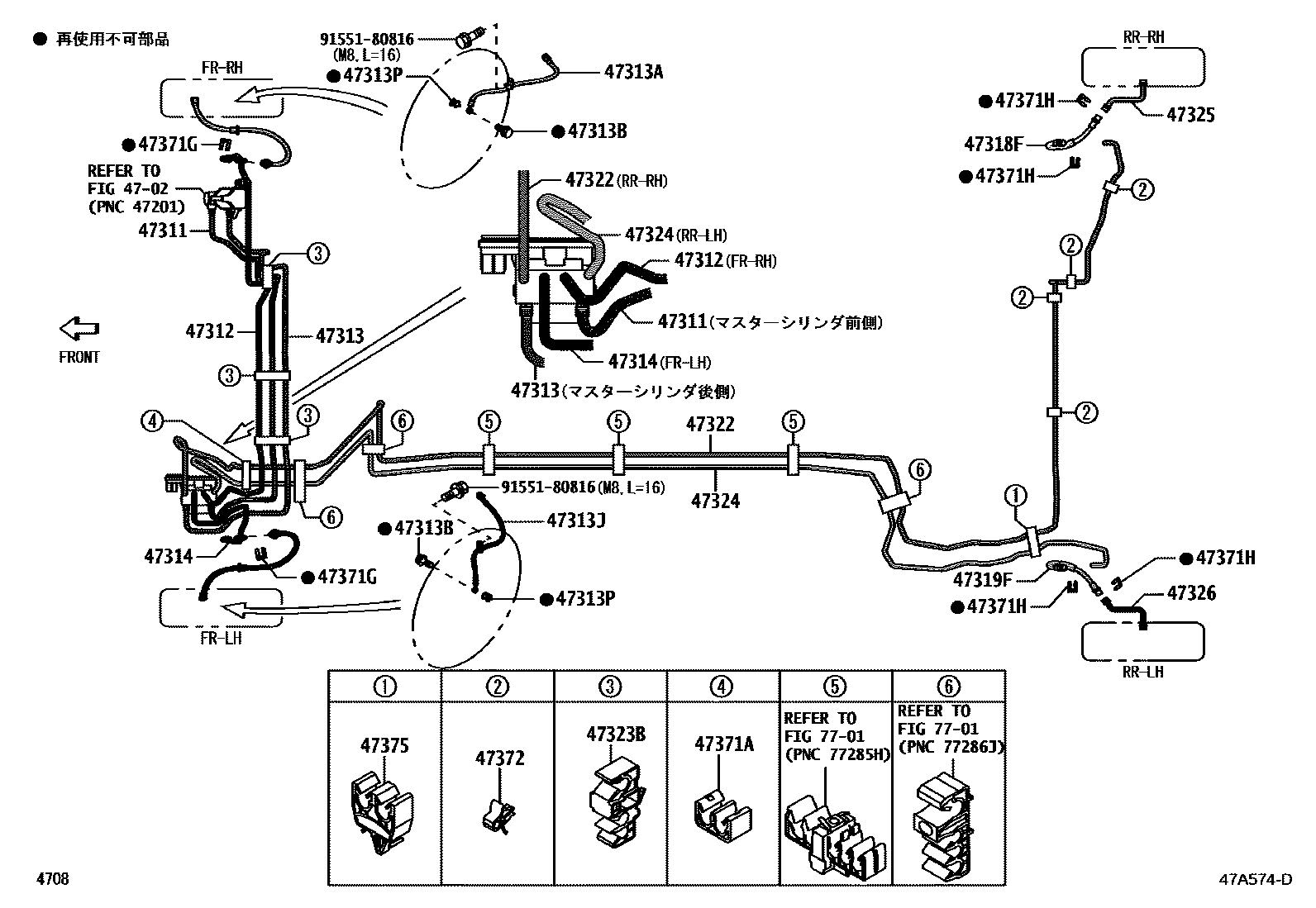

BRAKE TUBE & CLAMP

0001 1������ 0002 1�������

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-B1280iM900,910201611-202009

main47311-B1290iM900,910..CTMG; M900,910..G202009

main47311-B1300iM900,910..G,X202009

47312TUBE, FRONT BRAKE, NO.2

main47312-B1180iM900,910201611-202009

main47312-B1190iM900,910..CTMG; M900,910..G202009

main47312-B1200iM900,910..G,X202009

47313TUBE, FRONT BRAKE, NO.3

main47313-B1280iM900,910201611-202009

main47313-B1290iM900,910..CTMG; M900,910..G202009

main47313-B1300iM900,910..G,X202009

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22289iM900,910201611-202009

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iM900,910201611-202009

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90049-22290iM900,910201611-202009

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iM900,910201611-202009

47314TUBE, FRONT BRAKE, NO.4

main47314-B1150iM900,910201611-202009

main47314-B1160iM900,910202009

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90049-22186iM910201611-202007

main90049-22193iM900202009

main90049-22332iM910202008-202009

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90049-22186iM910201611-202007

main90049-22193iM900201611-202009

main90049-22332iM910202009

47322TUBE, REAR BRAKE, NO.2

main47322-B1220iM900201611-202009

main47322-B1230iM910201611-202009

main47322-B1240iM900202009

main47322-B1250iM910202009

47323BTUBE, REAR BRAKE, NO.3

main47371-B2080×3iM900,910..CTMG; M900,910..G202009

main90044-64892×3iM900,910201611-202009

47324TUBE, REAR BRAKE, NO.4

main47324-B1240iM900201611-202009

main47324-B1250iM910201611-202009

main47324-B1260iM900202009

main47324-B1270iM910202009

47325TUBE, REAR BRAKE, NO.5

main47325-B1030iM900201611-202009

main47325-B1080iM910201611-202009

main47325-B1110iM910..CTMG; M910..G202009

main47325-B1120iM910..G,X202009

47326TUBE, REAR BRAKE, NO.6

main47326-B1030iM900201611-202009

main47326-B1080iM910201611-202009

main47326-B1110iM910..CTMG; M910..G202009

main47326-B1120iM910..G,X202009

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iM900,910201611-202009

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441×2iM900,910201611-202009

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441×4iM900,910201611-202009

47372CLAMP, BRAKE TUBE, NO.2

main90044-64889×4iM900,910201611-202009

main90044-64918×4iM900,910202302

47375CLAMP, BRAKE TUBE, NO.5

main47372-B1020iM900,910201611-202009
