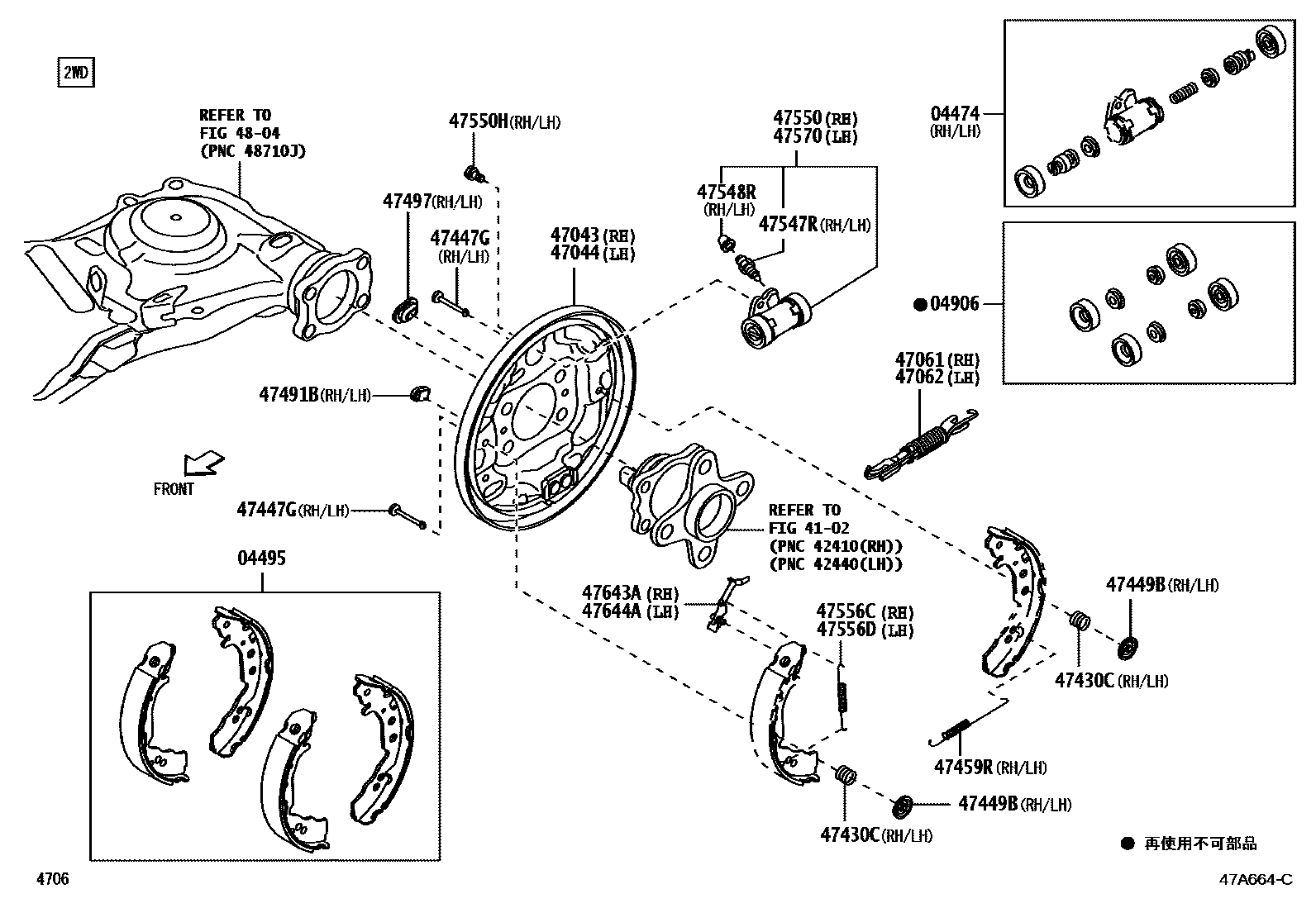

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 12WD 0002 14WD 0003 12WD 0004 14WD 0005 12WD 0006 14WD

04474CYLINDER KIT, REAR WHEEL

main04474-B1010×2iM910201611-202009

main04474-B1030×2iM910202009

main04474-B1060×2iM900202009

04495SHOE KIT, REAR BRAKE

main04495-B1051iM910201611-202009

main04495-B2400iM900201611-201905

main04495-B2430iM900201906-202009

main04495-B2470iM910..CTMG; M910..G202009

main04495-B2480iM900..CTMG; M900..G202009

main04495-B5080iM910..G,X202009

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B1030iM910202009

main04906-B1100iM900201611-202009

main04906-B2010iM910201611-202009

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-97503iM910201611-202009

main47043-B1100iM900..CTMG; M900..G202009

main47043-B1110iM910..CTMG; M910..G202009

main47043-B2090iM900201611-202009

main47043-B5040iM910..G,X202009

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-97503iM910201611-202009

main47044-B1100iM900..CTMG; M900..G202009

main47044-B1110iM910..CTMG; M910..G202009

main47044-B2090iM900201611-202009

main47044-B5040iM910..G,X202009

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-B1021iM910..CTMG; M910..G202009

main47061-B2040iM900201611-201902

main47061-B2041iM900201903-202009

main47061-B2070iM900..CTMG; M900..G202009

main47061-B5020iM910..G,X202009

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-B1021iM910..CTMG; M910..G202009

main47062-B2040iM900201611-201902

main47062-B2041iM900..G,X202009

main47062-B2070iM900..CTMG; M900..G202009

main47062-B5020iM910..G,X202009

47430SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE)

main47420-B5020iM910..G,X202009

main47440-B5020iM910..G,X202009

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01816×4iM900,910..CTMG; M900,910..G202009

main90045-01848×4iM900201611-202009

main90045-01854×4iM910201611-202009

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×4iM900201611-202009

main47447-87501×4iM910..G,X202009

main47447-B1030×4iM910..CTMG; M910..G202009-202407

main47447-B2040×4iM900..CTMG; M900..G202009-202407

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×4iM900,910201611-202009

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-B2020×2iM900201611-202009

main47459-B2070×2iM900..CTMG; M900..G202009

main47459-B5030×2iM910202009

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010×2iM900,910201611-202009

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47491-87601×2iM910..CTMG; M910..G202009

main47491-B2030×2iM900201611-202009

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iM910201611-202009

main47547-87204×2iM900201611-202009

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iM900,910202009

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B1010iM910..G,X202009

main47550-B1030iM900..G,X202009

main47560-B5010iM910201611-202009

main47570-B1010iM910..CTMG; M910..G202009

main47570-B1020iM900..CTMG; M900..G202009

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90041-19848×4iM900; M910201611-202009

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-B1010iM910..CTMG; M910..G202009

main47555-B2040iM900201611-202009

main47555-B2070iM900..CTMG; M900..G202009

main47555-B5010iM910..G,X202009

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47556-B1010iM910..CTMG; M910..G202009

main47556-B2020iM900201611-202009

main47556-B2040iM900..CTMG; M900..G202009

main47556-B5010iM910..G,X202009

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-B1010iM910..CTMG; M910..G202009

main47550-B1030iM900..CTMG; M900..G202009

main47560-B5010iM910201611-202009

main47570-B1010iM910..G,X202009

main47570-B1020iM900201611-202009

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-B1030iM910..CTMG; M910..G202009

main47643-B2020iM900201611-202009

main47643-B2041iM900..CTMG; M900..G202009

main47643-B5010iM910..G,X202009

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-B1030iM910..CTMG; M910..G202009

main47644-B2020iM900201611-202009

main47644-B2041iM900..CTMG; M900..G202009

main47644-B5010iM910..G,X202009

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04
