BRAKE MASTER CYLINDER

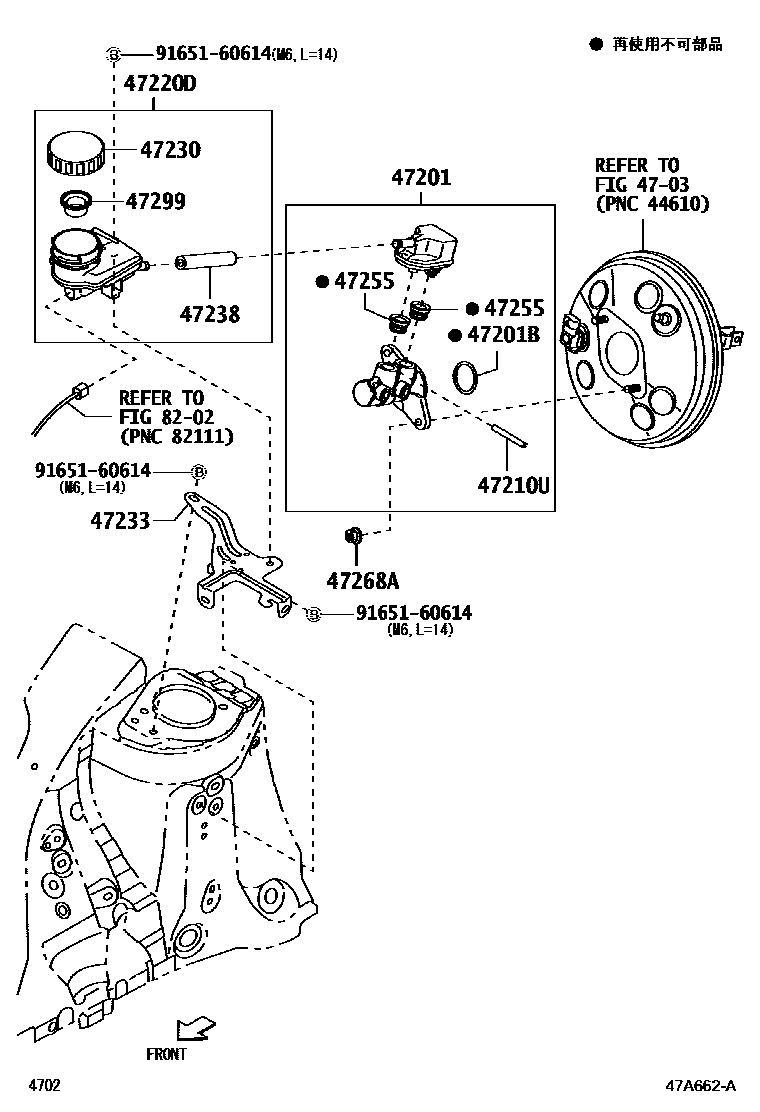

Parts diagram

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B1190i201611-202009

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352i201611-202009

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029i201611-202009

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B1110i201611-202009

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B2030i201611-202009

47233BRACKET, RESERVOIR

main47233-B1050i201611-202009

47238HOSE, MASTER CYLINDER BRIDGE

main47234-B1060i201611-202009

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050×2i201611-202009

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124×2i201611-202009

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-87401i201611-202009

8202WIRING & CLAMP

→ Go to FIG 82-02

9165160614

main91651-60614

13 parts on this diagram · 1 diagram in section
