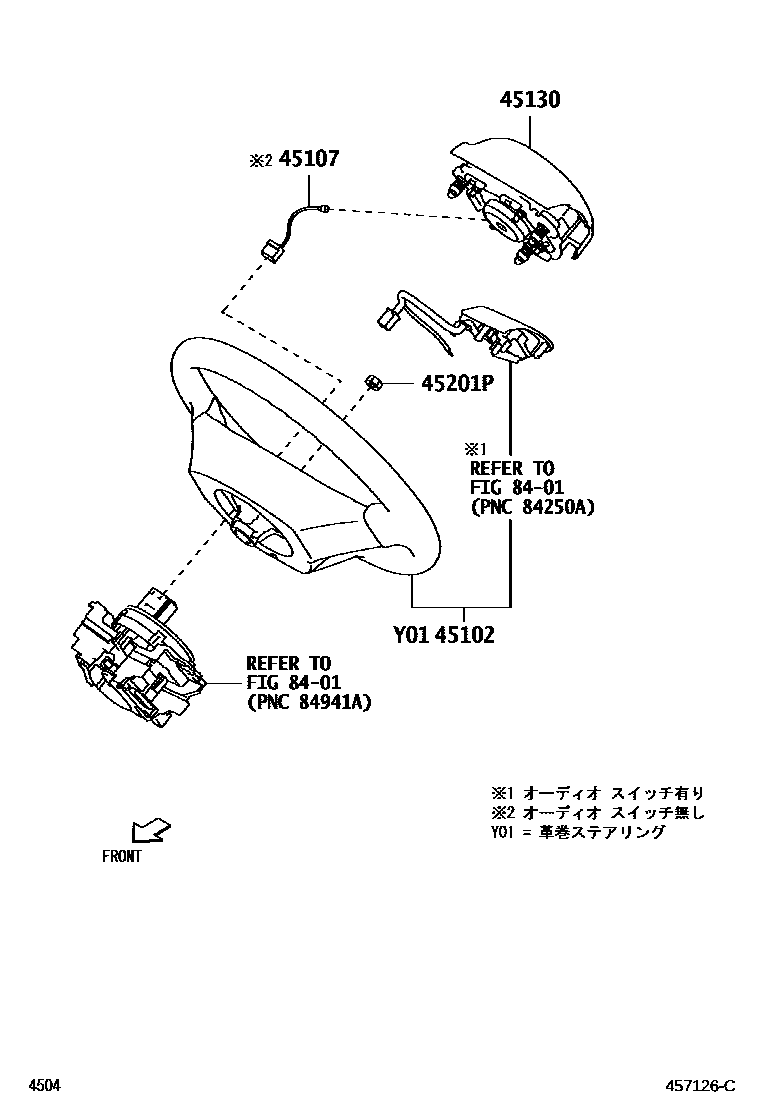

STEERING WHEEL

0001 1 0002 1����������� �� 0003 1

45102WHEEL SUB-ASSY, STEERING

main45102-B1360-C0iM900,910..X202009

BLACK,TRIM4#

main45102-B1370-C1iM900,910..G202009

-,TRIM4#

main45102-B1380-C1iM900,910..CTMG202009

-,TRIM2#

main45102-B1230-C1supersedes 45102-B1220-C1iM900,910..X201611-201904

main45102-B1290-C1supersedes 45102-B1280-C1iM900,910..G..NTBO201611-202009

main45102-B1310-C1supersedes 45102-B1300-C1iM900..G..TBO201611-202009

main45102-B1330-C1supersedes 45102-B1320-C1iM900,910..CTMG..NTBO201611-202009

main45102-B1350-C1supersedes 45102-B1340-C1iM900..CTMG..TBO201611-202009

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2050iM900,910..X201611-202009

45130BUTTON ASSY, HORN

main45130-B1150-C0iM900,910201611-202009

BLACK,TRIM1#

main45130-B1270-C1iM900,910..CTMG; M900,910..G,X202009

BLACK,TRIM2#; BLACK,TRIM4#

45201PNUT, STEERING WHEEL SET

main90041-70014iM900,910201611-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 3 diagrams in section
